NEW 2023 OTINUS Guillotine Shear
Overview
OTINUS 5/16″ x 10′ PRO SMO-3108-C8, Guillotine Shear,– Cybtouch-8 Control-Brand New, Install & Training Model SMO-3108-C8

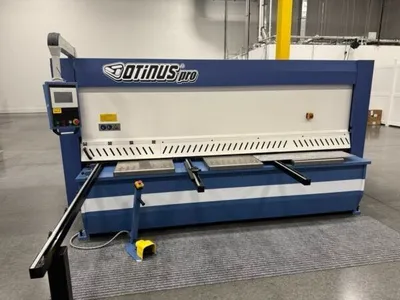

The Otinus PRO SMO-3108-C8 is a hydraulic guillotine shear designed for 5/16″ (8mm) thick by 10-foot (3098mm) long steel, featuring a 1.8° rake angle, 13 strokes/min, a 30″ power backgauge, automatic clearance, safety photocells, and a Cybtouch-8 control, built solid for metal fabrication.
THE DIFFERENCE IS OUR OUR ASSETS
US BRANCH
Our United States facility is equipped with state-of-the-art technology for sheet metalworking and manufacturing. This branch specializes in providing advanced solutions tailored to the needs of the North American market. With an experienced team and a commitment to innovation, we deliver high-quality machines that meet the highest industry standards.
POLISH HEADQUARTERS
Located in Poland, our European branch combines cutting-edge engineering with decades of expertise in the metalworking industry. This facility focuses on serving the European market, offering customized solutions and efficient production processes. We pride ourselves on delivering excellent service and maintaining strong relationships with our customers across Europe.
Why choose our turn-key solutions?
By choosing our turn-key solutions, you can rest assured that your company is in good hands, and the implementation of new technologies is smooth and stress-free.
Save time and money: We eliminate the need for external providers, allowing for immediate production start-up.
Hassle-free implementation: With our complete installation and training, you can be confident that every aspect is under control.
Full technical support: We are available at every stage to provide technical and service support.
Specs
Nominal Motor Power: 15.0 kW
Maximum Cutting Capacity for carbon steel sheets (S235 PN-EN): up to 8.0 mm
Maximum Cutting Length for Carbon Steel: 11′
Shear Angle: 1.8°
Strokes/min 13
Backgauge retract distance: 29″
Number of hold-downs: 17 pcs
Motor 20HP
Capacity of oil tank: 42 gal
Bed height: 31”
Backgauge motor: 0.55 kW
Power: 460V Three Phase
Machine Dimensions: 12″3"x 5″x 6″
Machine Weight: 14,222 lbs

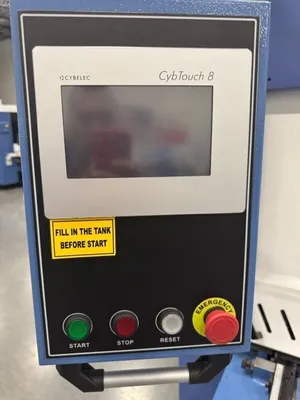

Controller CybTouch 8
-Automatic calculations of the shear functions upon material specifications.
-Automatic blade gap.
-Automatic back gauge correction.
-Automatic back gauge foldaway.
-2/3- position sheet support.
-Return to sender function (RTS).
-Front or back gauge management.
-Parking position (foldaway function).
-Hold-downs pressure management.
-System pressure management.
-Large cutting sequences and programs can be memorized.vivid colors.
-Simple pages, large keys, clear display with all the information the operator needs.
-Intuitive and user-friendly interface.
-Complete programming of parts in seconds
Equipped With
Features
Reinforced and more solid construction
CybTouch8 CNC Controller
Extended front supports with protractors
Supports and ball transfer units at the front table and rear ramp
Laser cutting line indicator
Additional lifts on the rear ramp
Guards and photocells ensuring operator safety
Automatic clearance adjustment – ability to adapt to different material thicknesses
Machine workspace lighting
Blades: up to 1 inch thick
Blades for cutting stainless steel
Automatic blade gap adjustment
Workspace lighting
Construction: Reinforced, solid frame
