USED NIRO MOBILE MINOR

🏭 Manufacturer Information

Manufacturer: GEA Niro

Model: Mobile Minor

Type: Laboratory / Pilot-Scale Spray Dryer

Condition: Used – Reported in Good Condition

Construction: Stainless Steel (product contact areas)

⚙️ Description

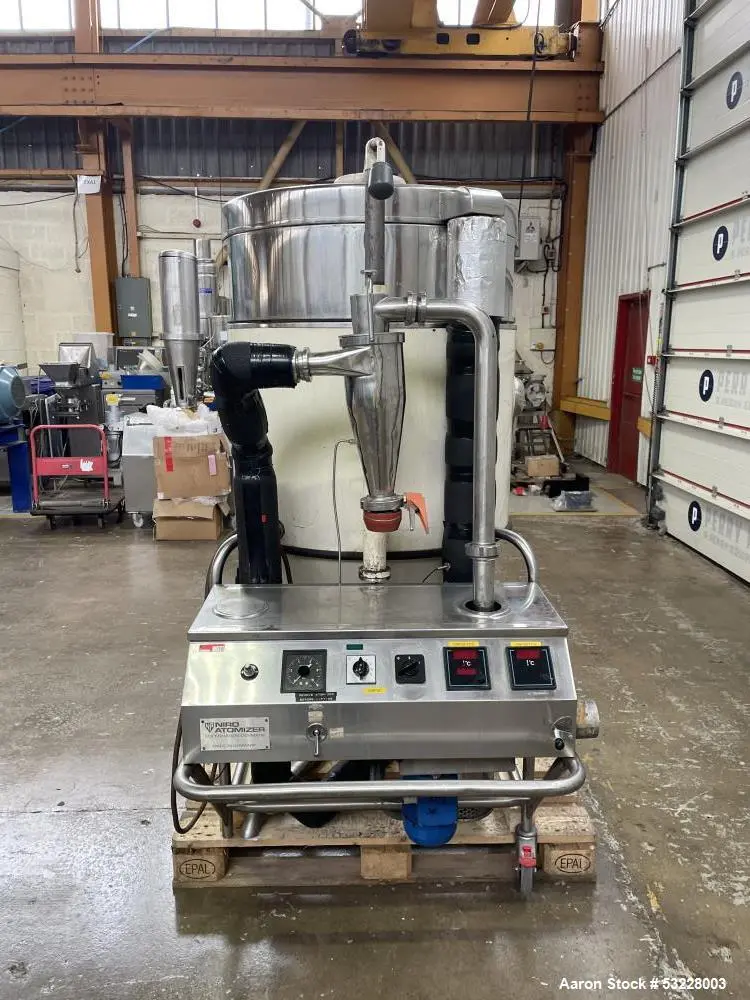

This Used GEA Niro Mobile Minor Laboratory Spray Dryer is a widely respected pilot-scale spray drying system designed for research, development, and small-batch production. Commonly used in food, pharmaceutical, dairy, nutraceutical, and specialty chemical industries, the Mobile Minor provides reliable, repeatable drying results and is ideal for process development and scale-up trials.

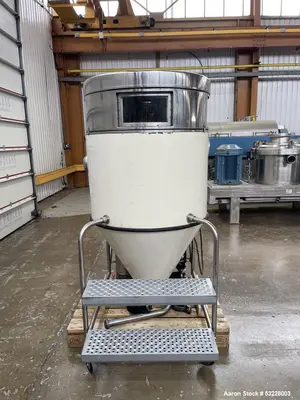

The unit features a stainless steel drying chamber that is lagged and clad for improved thermal efficiency and operator safety. Product atomization is achieved via a Niro centrifugal air-operated atomizer, ensuring consistent droplet formation and uniform powder characteristics.
With an evaporation capacity of approximately 1–7 kg/hr (2.2–15.4 lbs/hr) depending on product formulation, this system offers flexibility for a wide range of materials. The package includes an electric heater, cyclone separator, interconnecting pipework, and additional infrastructure, all mounted on a mobile frame with wheels for easy relocation within laboratory or pilot facilities.

📏 Specifications

Model: Mobile Minor

Evaporation Capacity: Approx. 1–7 kg/hr (2.2–15.4 lbs/hr), product dependent

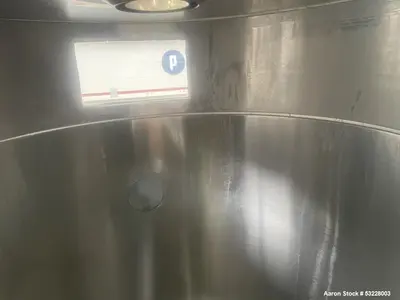

Drying Chamber Dimensions:

Approx. 800 mm (31-1/2”) diameter

Approx. 915 mm (36”) straight side

Atomization: Niro centrifugal air-operated atomizer

Construction: Stainless steel chamber

Insulation: Chamber lagged and clad

Heat Source: Electric heater

Product Recovery: Cyclone separator

Included: Cyclone, pipework, and associated infrastructure

Mounting: Mobile frame on wheels

🧩 Applications

Laboratory spray drying

Pilot-scale product development

Food and dairy powders

Pharmaceutical excipients and APIs

Nutraceutical and supplement powders

Specialty chemical formulations

Enzymes and proteins

Flavors, colors, and fragrances

R&D and university research programs

Scale-up validation prior to full production

⚗️ What This Might Be Used For

Developing spray-dried powders before commercial production

Optimizing drying parameters and formulations

Producing small test batches for trials or evaluation

Conducting scale-up experiments

Supporting R&D, pilot plants, and academic research
