USED NEW YORK BLOWER AF-40

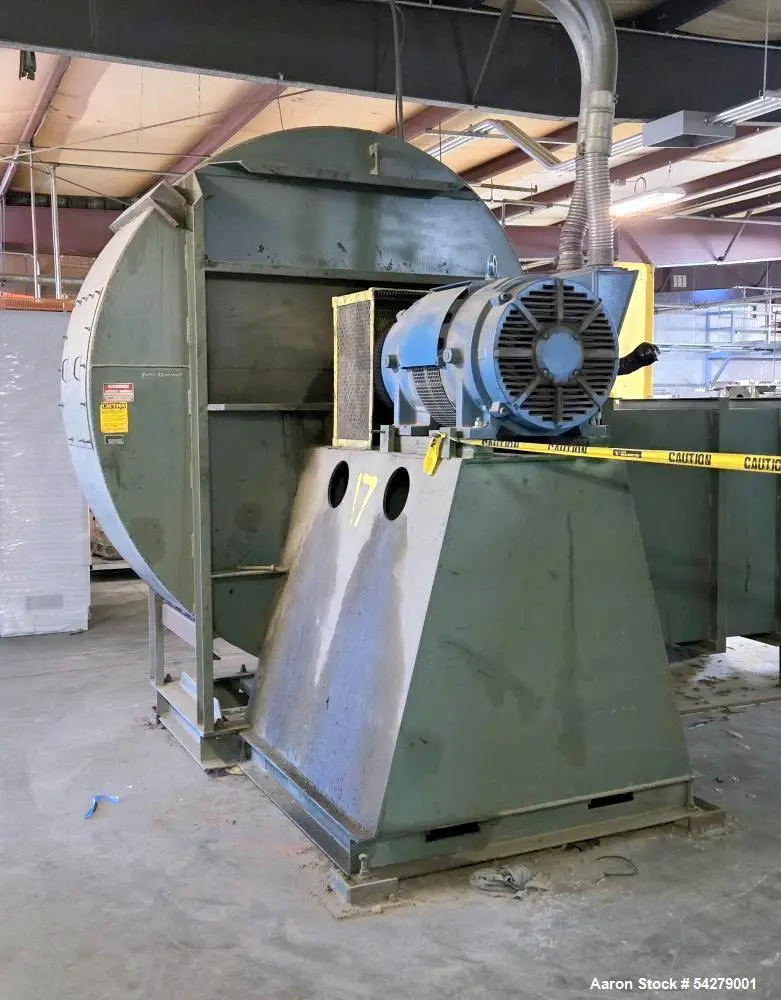

Used New York Blower High-Efficiency Airfoil Fan, Model AF-40. Size 544A71. Up to 240,000cfm, static pressures up to 46" WG. Operating temperatures up to 750 degrees F. Driven by a 400hp 3/60/460v 1780rpm WEG motor. Approximate Dimensions 9'8"W x 9'2"H x 8' Deep, inlet 50" dia., outlet 30"x50". Estimated under 10,000 lbs.

Used Equipment Facts About This Machine
🏭 Manufacturer Information

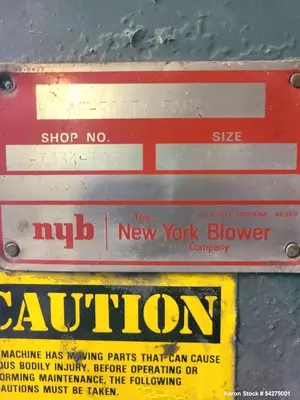

Manufacturer: New York Blower Company

Model: AF-40

Fan Size: 544A71

Type: High-Efficiency Airfoil Centrifugal Fan

Condition: Used

⚙️ Description

This Used New York Blower AF-40 High-Efficiency Airfoil Fan is a heavy-duty industrial airflow solution designed for very high volume and high static pressure applications. Engineered with an airfoil blade design, this fan delivers superior efficiency, lower power consumption, and reduced noise compared to traditional backward-inclined designs.
Rated for airflows up to 240,000 CFM and static pressures up to 46 inches WG, the AF-40 is suitable for the most demanding industrial ventilation, combustion air, and process exhaust duties. The unit is capable of operating at temperatures up to 750°F, making it ideal for high-temperature process environments.
The fan is driven by a 400 HP, 3-phase, 460V, 1780 RPM WEG motor, providing the power required for continuous, high-load operation. With approximate overall dimensions of 9’8” W x 9’2” H x 8’ deep and an estimated weight of under 10,000 lbs, this fan is well suited for large industrial installations where performance and durability are critical.

📏 Specifications

Model: AF-40

Fan Size: 544A71

Fan Type: Airfoil centrifugal fan

Maximum Airflow: Up to 240,000 CFM

Maximum Static Pressure: Up to 46" WG

Maximum Operating Temperature: Up to 750°F

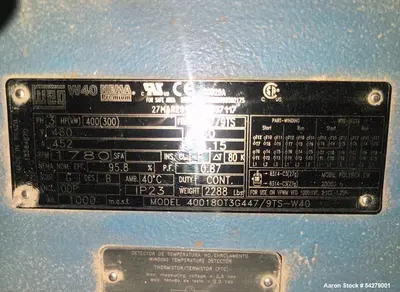

Drive Motor:

Power: 400 HP

Voltage: 3/60/460V

Speed: 1780 RPM

Manufacturer: WEG

Approximate Dimensions:

Width: 9’8”

Height: 9’2”

Depth: 8’

Estimated Weight: Under 10,000 lbs

🧩 Applications

Industrial ventilation systems

High-volume process exhaust

Combustion air supply

Kilns and furnaces

Power generation facilities

Steel, cement, and glass plants

Petrochemical and chemical processing

Pulp and paper mills

Pollution control systems

High-temperature air handling

⚗️ What This Might Be Used For

Moving extremely large volumes of air efficiently

Handling high static pressure duct systems

Supplying combustion air to furnaces or boilers

Exhausting hot process gases

Supporting pollution control and scrubber systems

Continuous-duty industrial airflow applications
