USED 2006 Mazak Integrex E-500H 3000U

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Control Options: Automatic Peck Cycle

Automatic Power Off

Additional Machine Specs: Y-Axis: 19.69"

C-Axis Index: 0.001 deg.

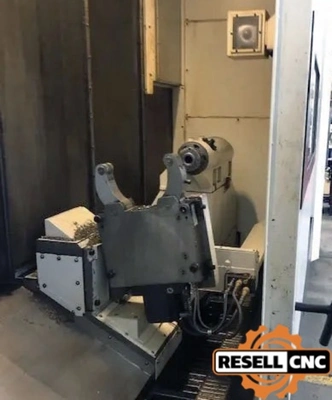

SMW SLUZ4 Steadyrest 1.38" - 9.65"

Consep 2,000 Chip Conveyor

Laser Measurement

Misc Tooling

Bar Capacity: 4.1
B Axis: true
B Axis Travel: -30° ~ +120°
C Axis: true
Chip Removal: Chip Conveyor
Chuck Description: Kitagawa B15 3-Jaw Chuck

Chuck Size: 15.0
Chuck Type: Hydraulic

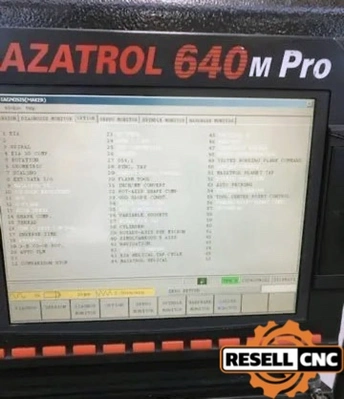

Control Make Model: Mazatrol 640M Pro CNC Control
Coolant Psi: 1000.0
Distance Between Centers: 122.91
Live Milling Hp: 25
Live Milling Max Rpm: 10000
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: true
Machine Options: All Available Manuals
Max Cutting Turning Diameter: 32.28
Max Swing Over Bed: 32.28
Max Swing Over Cross Slide: 32.3
Max Turning Cutting Length: 118.0
Programmable Tailstock: false
Single Turret: false
Single Turret Live Tooling: false
Spindle Motor: 40
Spindle Nose: A2-11
Spindle Speed: 2000.0
Steadyrest Capacity: 9.65
Steadyrest Type: Hydraulic
Sub Spindle: false
Tailstock: true
Tool Positions: 80.0
Twin Turret: false
X Travel: 34.25
Y Axis: true
Z Travel: 122.91
