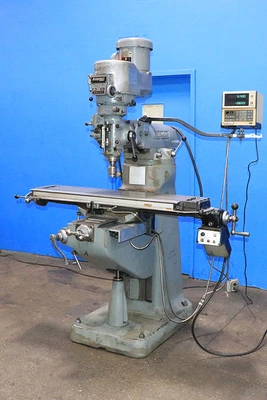

USED 1981 Bridgeport SERIES I

48" Table 2HP Spindle Bridgeport SERIES I VERTICAL MILL, Vari-Speed, R-8, Acu-Rite DRO,B'port Pwr Fd,Chrome

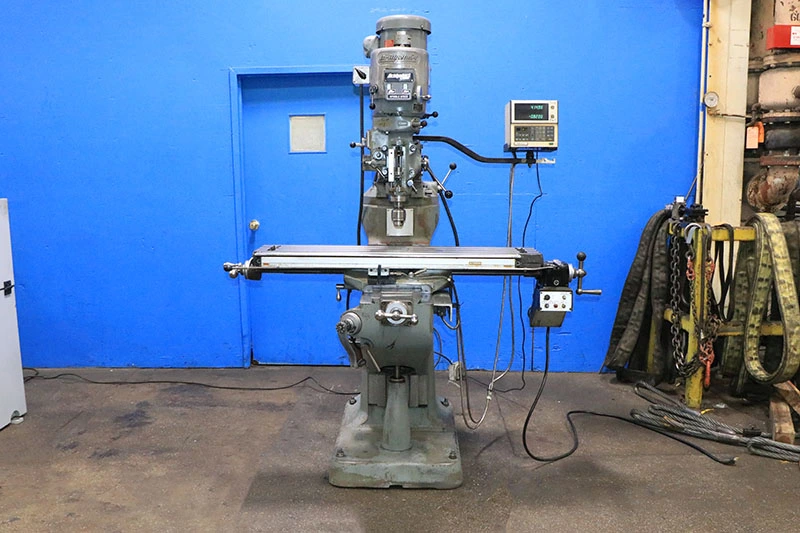

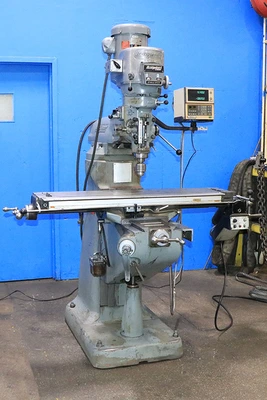

BRIDGEPORT VERTICAL MILLING MACHINE

MODEL: SERIES I, S/N: 12/BR 221017, NEW: 1981

SPECIFICATIONS:

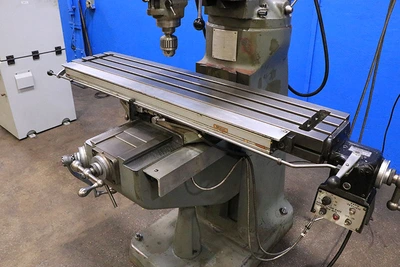

TABLE SIZE .............................. 9" X 48"

NUMBER OF T-SLOTS ....................... 3

LONGITUDINAL TABLE TRAVEL ............... 36"

CROSS TRAVEL ............................ 12"

QUILL TRAVEL ............................ 5"

KNEE TRAVEL ............................. 16"

RAM TRAVEL .............................. 12"

MAX/MIN DISTANCE, SPINDLE NOSE TO TABLE . 18-1/2" / 2-1/2"

MAX/MIN DISTANCE, CENTERLINE OF SPINDLE.

    TP FACE OF COLUMN ................... 18-3/4" / 6-3/4"

HEAD TILT, LEFT & RIGHT ................. 90 DEGREES

HEAD TILT, FRONT & REAR ................. 45 DEGREES

INFINITELY VARIABLE SPEED RANGE ......... 60-4,200 RPM

SPINDLE TAPER ........................... #30 QUICK CHANGE

MAX COLLET CAPACITY ..................... 3/4"

QUILL TRAVEL ............................ 5"

QUILL FEEDS ........................ 0.0015", 0.003", 0.006"

APPROXIMATE WEIGHT ...................... 2,000 LBS

EQUIPPED WITH:

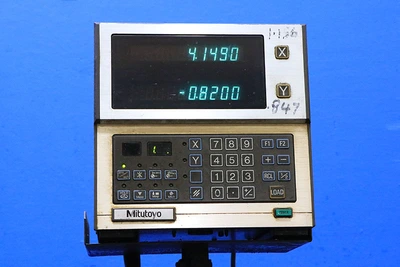

MITUTOYO TWO AXIS DIGITAL READOUT

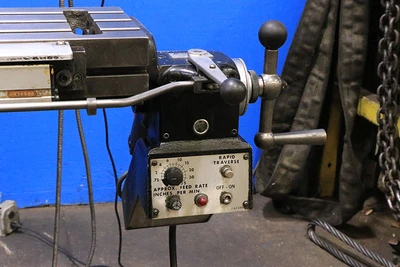

BRIDGEPORT POWER FEED FOR LONGITUDINAL TRAVEL

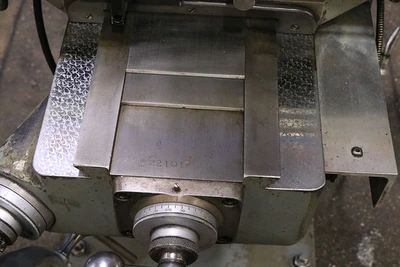

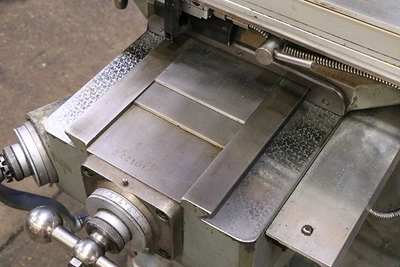

CHROME WAYS

JACOBS DRILL CHUCK

BIJUR AUTOMATIC LUBRICATION SYSTEM

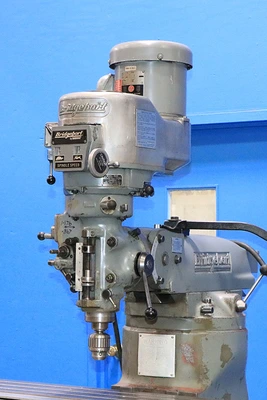

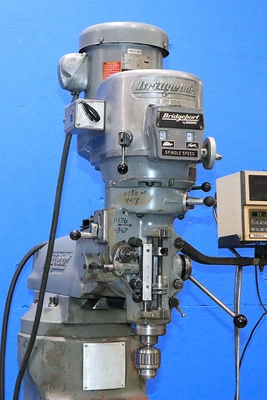

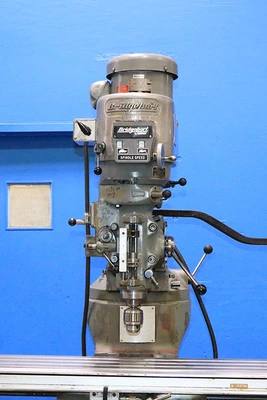

BRIDGEPORT SERIES I MILLING HEAD

2 HORSE POWER SPINDLE MOTOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE

FOR MORE INFORMATION: Call David at 973-497-7570
