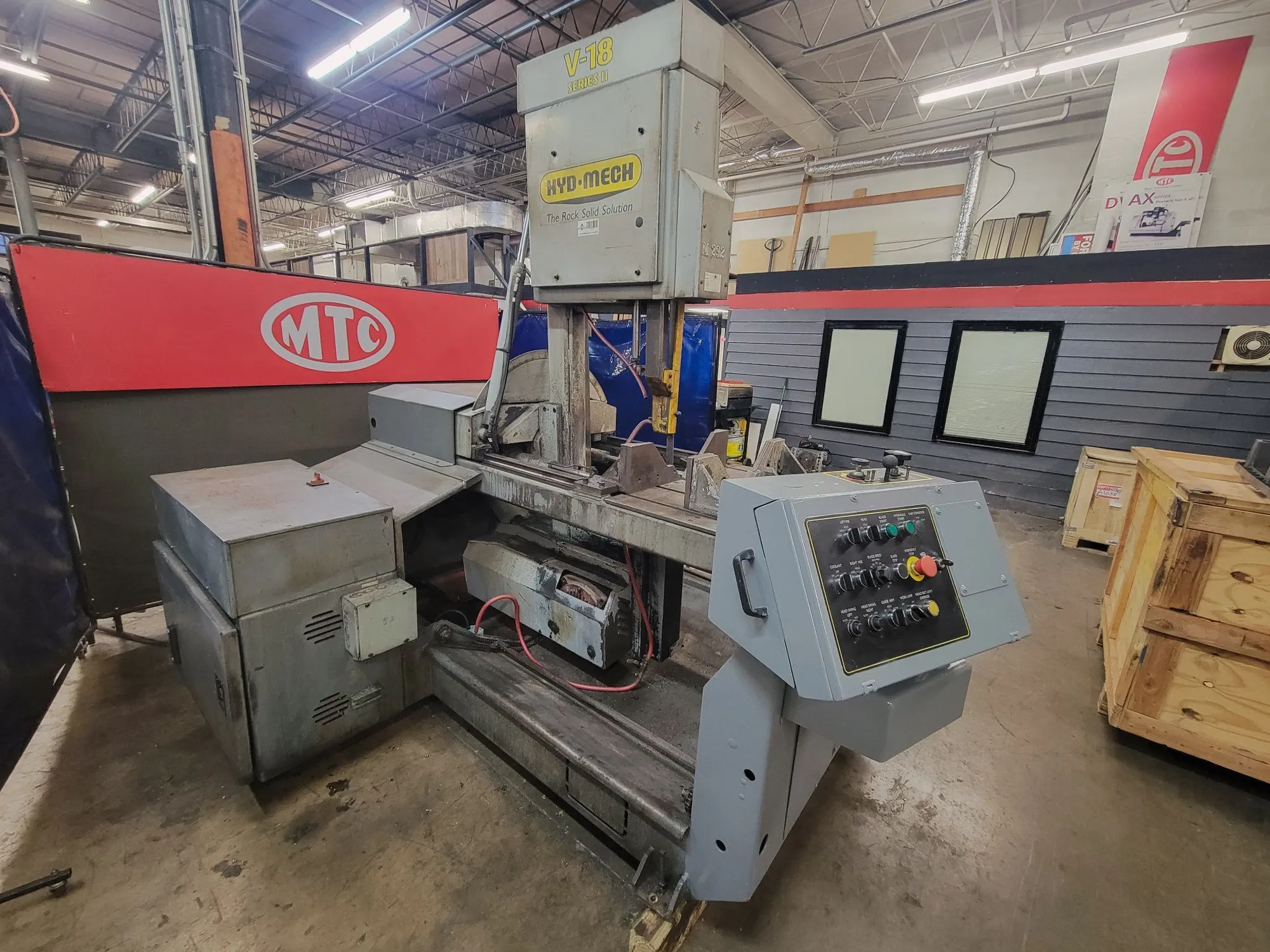

Hyd-Mech heavy Duty vertical tilt frame, Semi-automatic bandsaw, 18.5" x 20.5" Capacity, 45 degree tilt left or right
| Throat | 18.5" | 469.9 mm |
| Work Height | 20.5" | 520.7 mm |
| Power | 7.5 hp | 5.6 kW |
| Blade Width | 1.25" | 31.75 mm |
| Blade Length | 14.92' | 4,547.6 mm |
| FPM | 75-400 FPM | 75-400 FPM |
| Dimensions | 72” x 110 “ x 98” H | 72” x 110 “ x 98” H |
| Weight | 4,500lbs. | 4,500lbs. |
GENERAL SPECIFICATIONS
Capacity at 90° Rectangles: 18.5” X 20.5”
Capacity at 90° Rounds: 17.5”
Capacity at 45° Rectangles: 18” X 20”
Capacity at 45° Rounds: 13”
Blade Length: 14’ 11”
Blade Width: 1-¼”
Blade Thickness: 0.042”
Blade Speed: 75 - 400 SFM
Blade Wheel Diameter: 19”
Table Height: 38”
INCLUDES: Hydraulically Actuated Head Tilt to 45° Either Direction, Hydraulically Actuated Blade Tension, Hydraulically Actuated Guide Arm Positioning, Left & Right Full Stroke Hydraulic Vises, Hardened and Replaceable Wear Strips, Variable Frequency Drive and Powered Blade Brush.
FPM 75-400 FPM
Blade Length 14.92'
Vertical Band Saw
Mitering Bandsaw
vertical tilt frame bandsaw
Year 2003
Model V-18 II
Power 7.5 hp
Blade Width 1.25"
Dimensions
72” x 110 “ x 98” H
Weight 4500 Lbs.
power Vises left and right, power tilt, power blade Guide, 1,1/4" Blade, Varible blade speed visa AC vari drive, power blade return,
