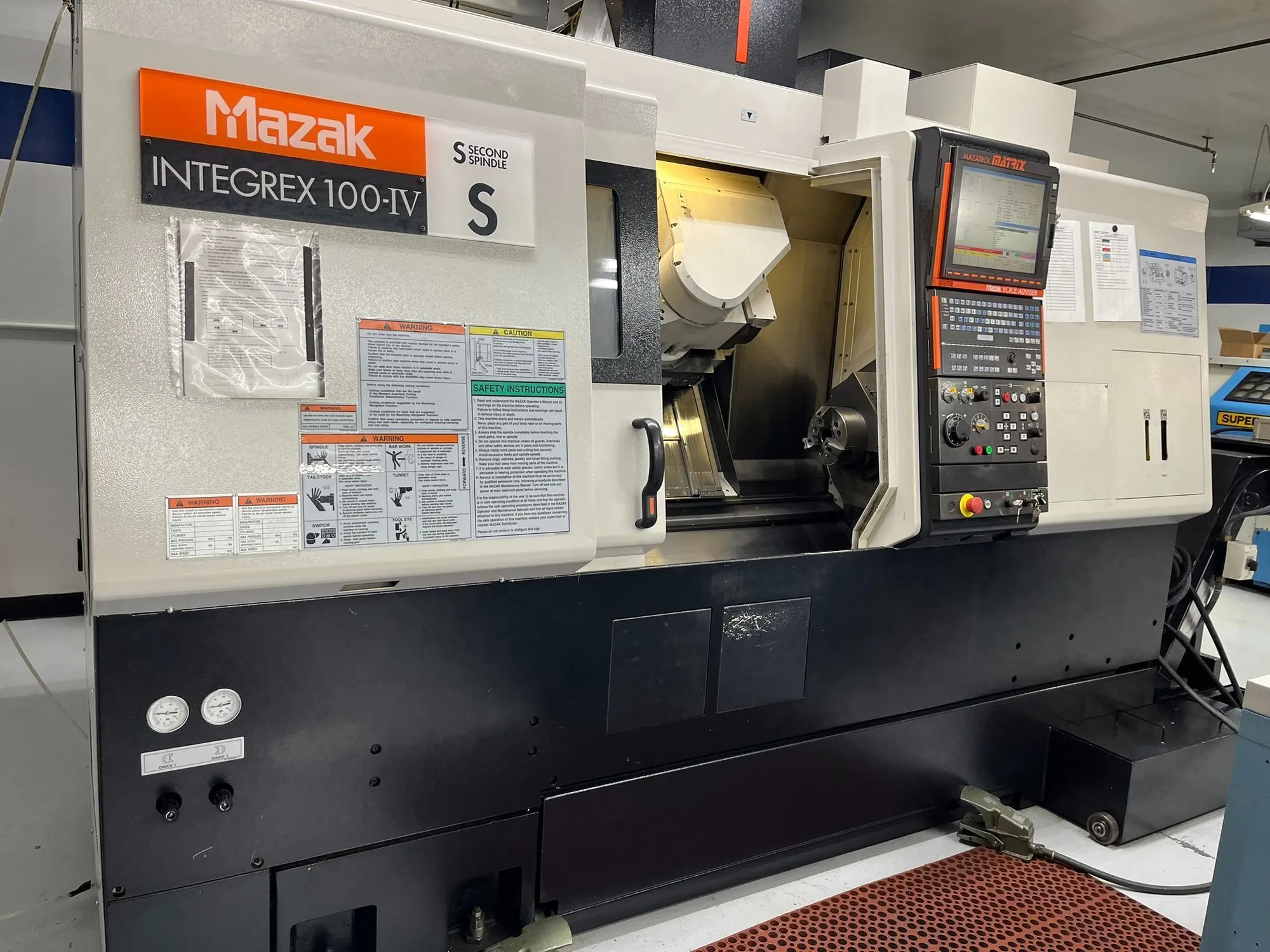

2006 MAZAK INTEGREX 100-IVS CNC Lathe, equipped with Mazatrol Matrix, 6,000 RPM dual spindles, Y axis control, and a range of precision and connectivity features. Ideal for intricate machining with 21.45" swing and 6" chuck size.
| Swing | 21.45" | 544.83 mm |
| Machining Length | 31.7" | 805.18 mm |
| # Axis | 3 | 3 |
| Chuck Size | 6" | 152.4 mm |
| Bar Capacity | 2" | 50.8 mm |
| Power | 10 hp | 7.5 kW |
| Max RPM | 6,000 RPM | 6,000 RPM |
| Turning Dia | 11.8" | 299.72 mm |
| Tailstock | No | No |
| Live Tooling | Yes | Yes |
| Sub Spindle | Yes | Yes |
| Control | CNC | CNC |
Live Tooling Yes
Y-Axis Yes
Sub Spindle Yes
Swing 21.45"
Machining Length 31.7"
X Travel 16.14"
Z Travel 31.7"
Chuck Size 6"
Bar Capacity 2"
Power 10 hp
Max RPM 6,000 RPM
Turning Dia 11.8"
Tailstock No
Barfeed No
Control CNC (Mazatrol Matrix)
Mazak Mazatrol Matrix
EIA/ISO Input Function
Goo Slope Constant
Shape Compensation for Rotary Axis
Cylindrical Polar Coordinate
Milling Spindle Synchronous Tapping
Cardbus I/F
Lan Port
USB
Y Axis Control
Coolant Through Milling Head
213 Through Coolant/ Flood Coolant Simul-Flowable
1st Spindle Motor AC
6000 RPM Spindle on Main and Second Spindle
C Axis .00001 Degree Inc (1st and 2nd Spindle)
