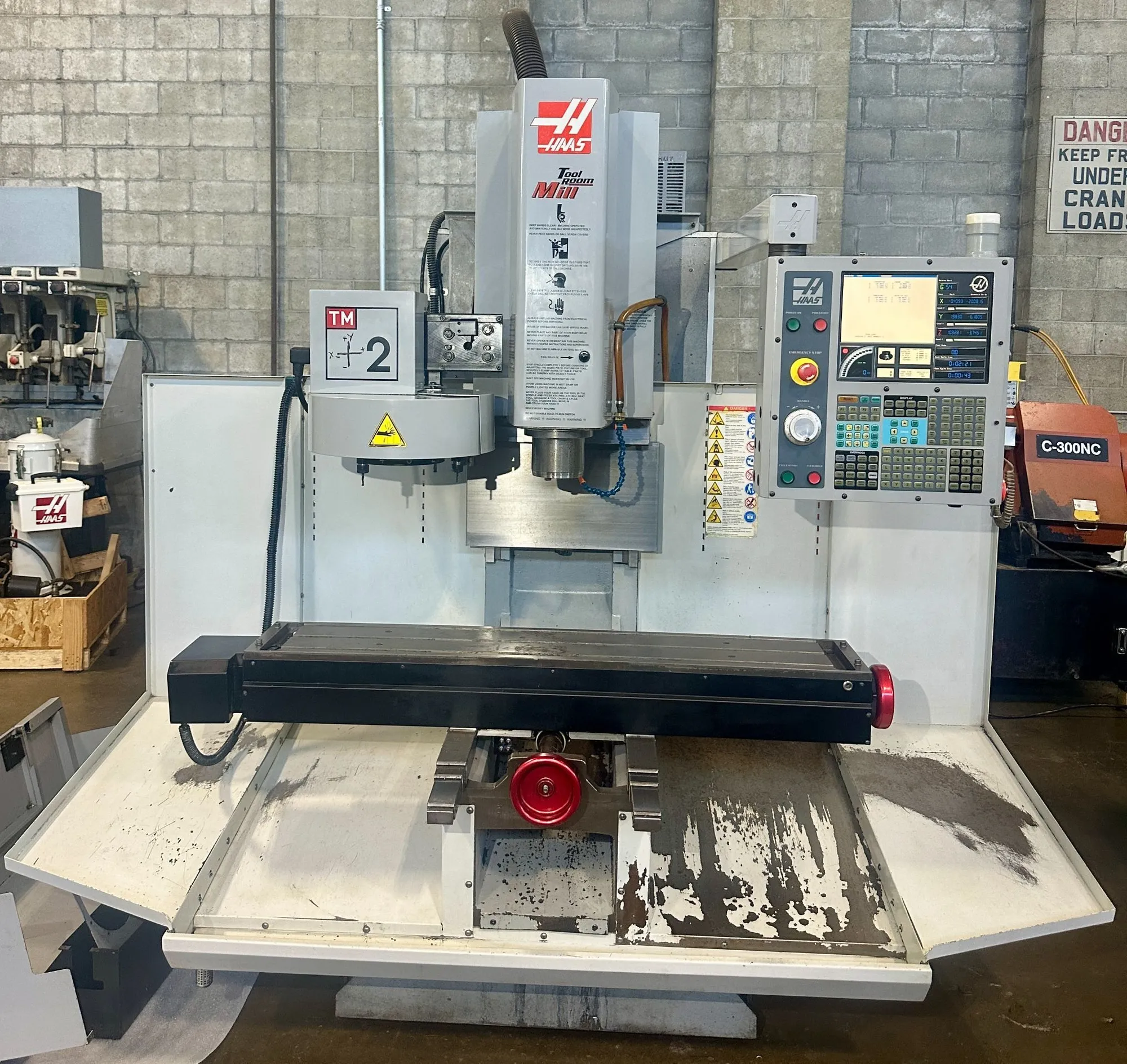

HAAS TM-2 CNC VERTICAL MACHINING CENTER, Haas CNC Control, 57.75" x 10.5" Table, X=40", Y=16", Z=16", CAT 40 Taper, 6000 Max Spindle RPM, 10 ATC, 7.5 HP, Coolant System, New 2008.
| CNC Control | Haas CNC | Haas CNC |
| # Axis | 3 | 3 |
| Table-L | 57.75" | 1,466.8 mm |
| Table-W | 10.5" | 266.7 mm |
| Max Table Load Capacity | 1,000 lb | 453.6 kg |
| X-Axis (Longitudinal Travel) | 40" | 1,016 mm |
| Y-Axis (Cross Travel) | 16" | 406.4 mm |
| Z-Axis (Vertical Travel) | 16" | 406.4 mm |
| Max Clearance Tabletop to Spindle Nose | 20" | 508 mm |
| Min Clearance Tabletop to Spindle Nose | 4" | 101.6 mm |
| Feed Rates (X, Y, & Z Axis) | 200 in/min. | 5.1 m/min. |
| Rapid Traverse Rate (X, Y, & Z Axis) | 200 in/min. | 5.1 m/min. |
| Spindle Power | 7.5 hp | 5.6 kW |
| Max Spindle Speed | 6,000 RPM | 6,000 RPM |
| Spindle Taper | CAT-40 | CAT-40 |
| Torque, Up To | 33 ft-lb @1200 RPM | 146.8 N |
| Automatic Tool Changer Capacity (ATC) | 10 | 10 |
| Automatic Tool Changer Style | Carousel | Carousel |
| Tool Change Time | 5.7 sec Tool-to-Tool (avg) | 5.7 sec. |
| Max Tool Diameter | 3.5" | 88.9 mm |
| Max Tool Weight | 12 lb | 5.4 kg |
| Electrics | 208/240 - 3/1 - 50/60 | 208/240 - 3/1 - 50/60 |
| Dimensions | 85" x 64" | 85" x 64" |
| Weight | 3,600 lbs | 3,600 lbs |
T-Slot Width: 0.625"
T-Slot Center Distance: 4"
# T-Slots: 3
Haas CNC Control, 57.75" x 10.5" Table, CAT 40 Taper, 6000 Max Spindle RPM, 10 Station Tool Changer, Coolant System, Several Tool Holders Included.
