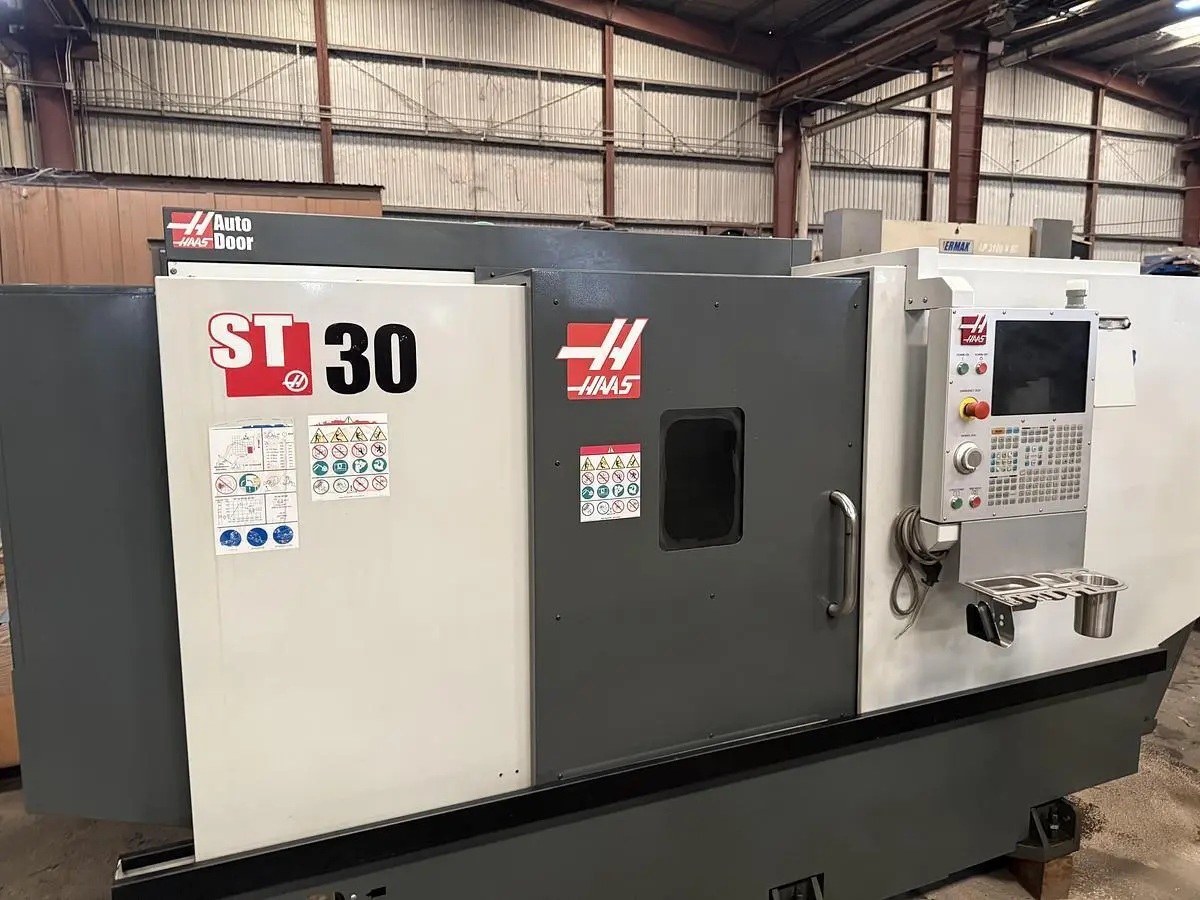

2020 HAAS ST-30 CNC Lathe. Features 21" swing, 32.5" machining length, 10" chuck, 30 hp, 3,400 RPM, and 12-station BOT turret. Equipped with dual steady rest, automatic tool pre-setter, programmable tailstock, HAAS Connect, and chip conveyor.
| Swing | 21" | 533.4 mm |
| Machining Length | 32.5" | 825.5 mm |
| # Axis | 2 | 2 |
| Chuck Size | 10" | 254 mm |
| Bar Capacity | 3" | 76.2 mm |
| Power | 30 hp | 22.4 kW |
| Max RPM | 3,400 RPM | 3,400 RPM |
| Turning Dia | 21" | 533.4 mm |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Control | CNC (HAAS) | CNC (HAAS) |
12-Station BOT Turret
Automatic Tool Pre-setter
Samchully STA-2 Dual Self Centering Steady Rest
Programmable Hydraulic Tailstock
Automatic Door
Steady Rest Provision
Rigid Tapping
8-Spare M Functions
Visual Part Programming System
User Definable Macros
Internal Low Voltage Transformer
WIFI / Ethernet / 1 GB Expanded Memory
HAAS Connect Remote Monitoring
55 Gallon Coolant Tank and Pump
Chip Conveyor
