| Weight | Approx: 1200lbs | Approx: 1200lbs |

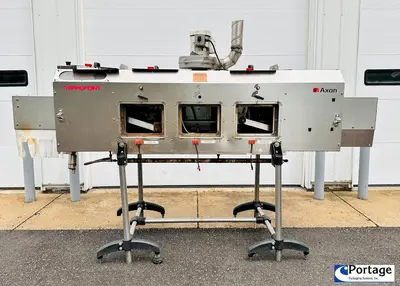

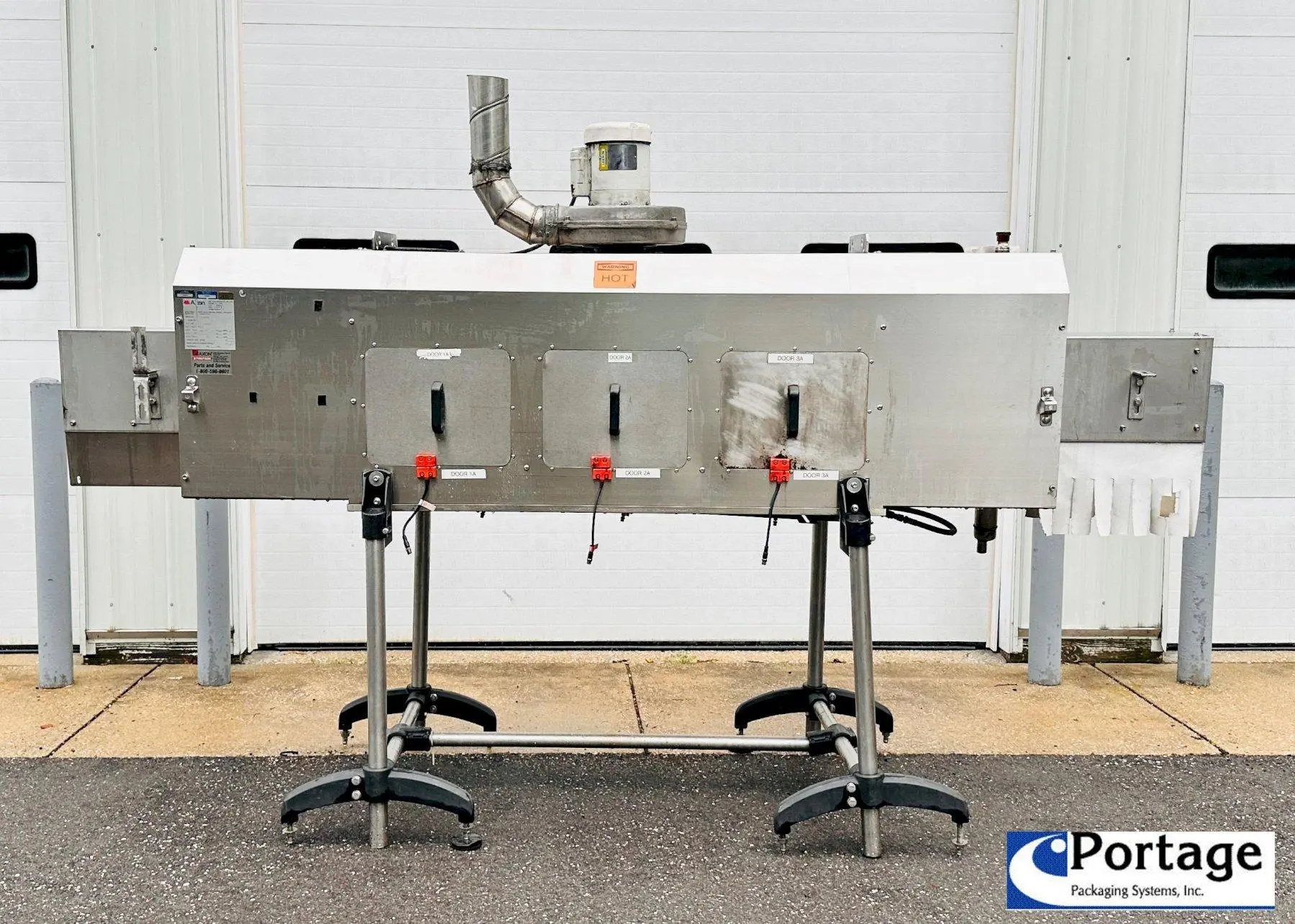

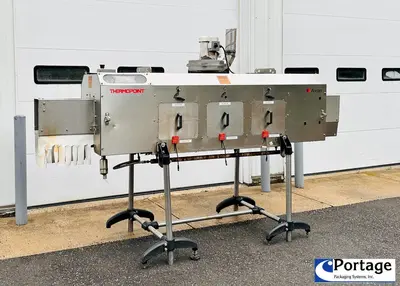

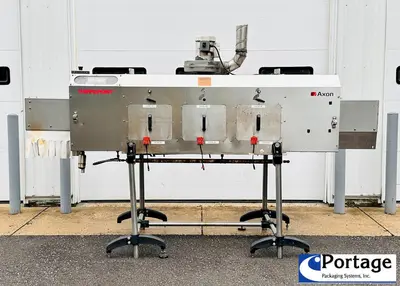

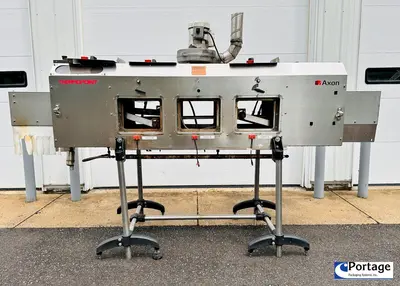

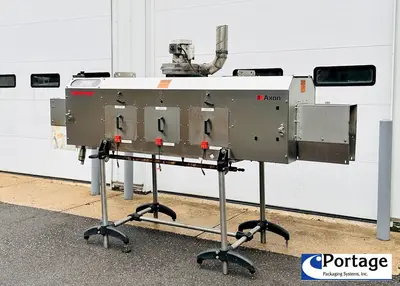

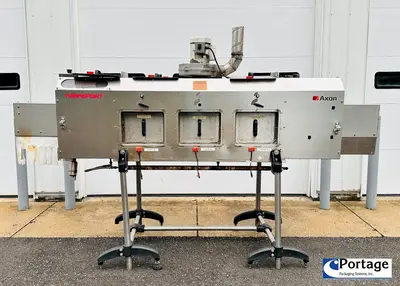

Type: Steam / Shrink / Sleever Tunnel
Container Size Range: 6”W x 15”H

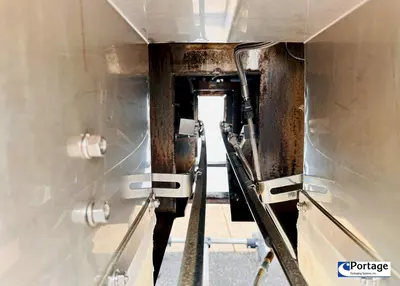

Openings: 9.5” max opening

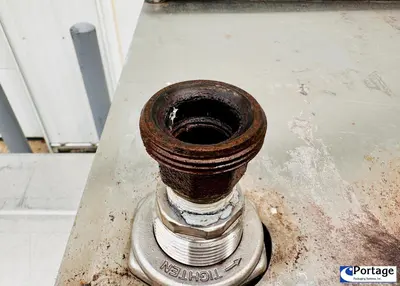

Steam Supply Required: 80psi
Steam Consumption: 200lbs/hr - 30 gallons per hour - Approx.

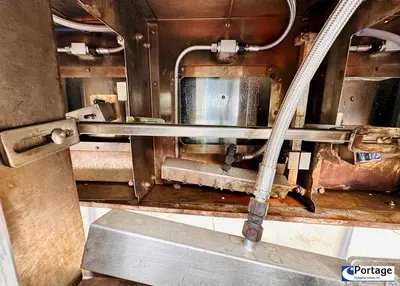

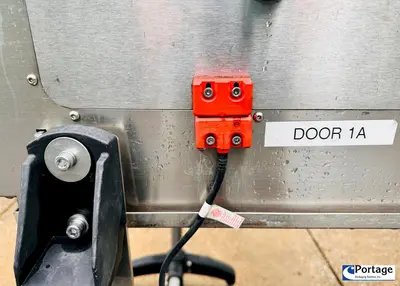

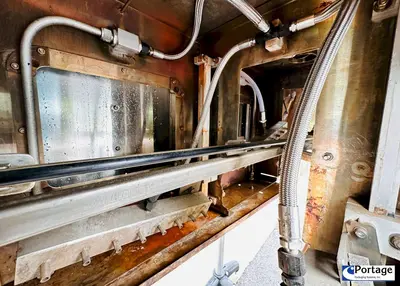

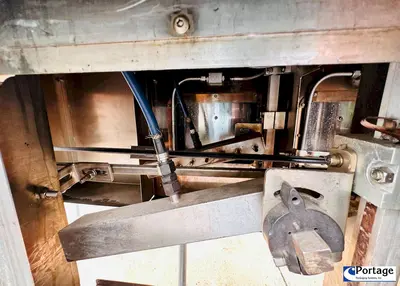

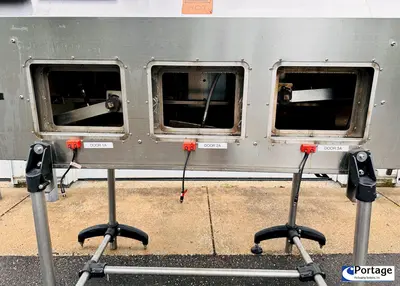

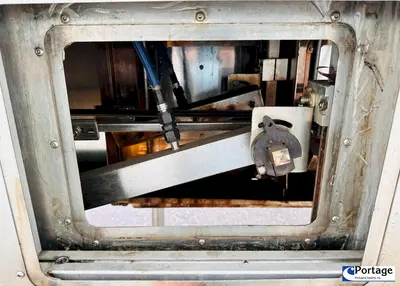

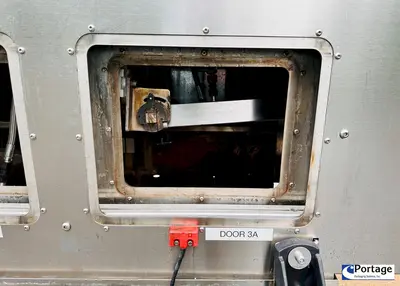

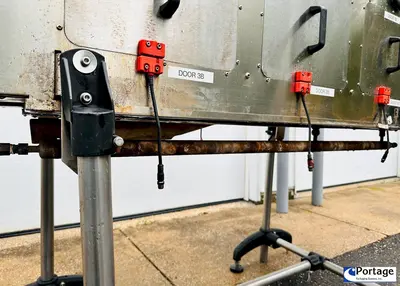

Heating Zones: 3-Zone Tunnel with access doors on each side - Inner & Outer doors/covers
Machine Speed: Application Specific

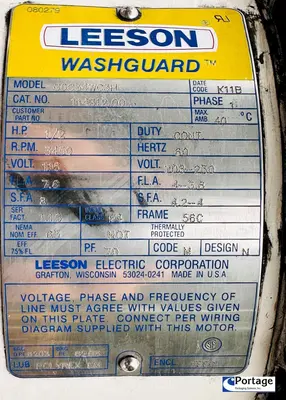

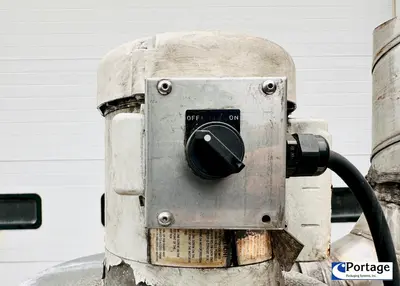

Blower Motor: 1/2Hp

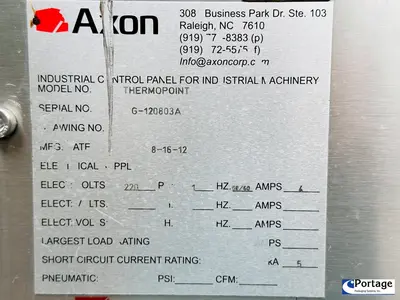

Electrical Specs: 115/230 Volts, Single Phase, 50/60Hz
Frame Material:: All Stainless Steel Construction for easy cleaning & maintaining
Frame Construction: Double Wall Shell Keeps Outer Surface Temps Cooler
Manufacture Date: 2012
Overall Dimensions: 24”W x 79”L x 77”H
Seller Notes: Units is USED. Some minor scratching/blemishes/streaking can be seen on the surfaces of the unit, but is not affecting the unit intended use. The unit was removed from a working environment and was functioning as intended when removed from service. There are NO EXTRAS, NO STEAM GENERATOR, or NO CONVEYOR INCLUDED, besides what you see with the unit pictured. Unit is being sold AS-IS, WHERE-IS, AS-SHOWN. Pictures are of the actual unit being purchased. Full crating or palletizing of the unit will be an extra cost. Unit will need a custom built skid/pallet due to size. If the buyer has any questions, please feel free to ask. As always, buyer is welcome to personally inspect and test unit at our facilities. All specifications are assumed to be correct, but must be confirmed and verified by the purchasing customer.
EXTRAS:: NO CONVEYOR INCLUDED WITH THE STEAM TUNNEL
