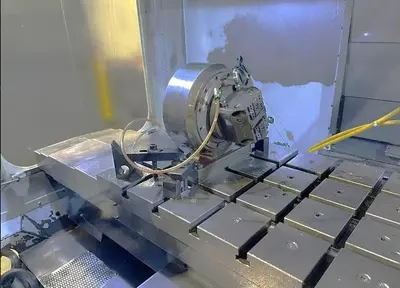

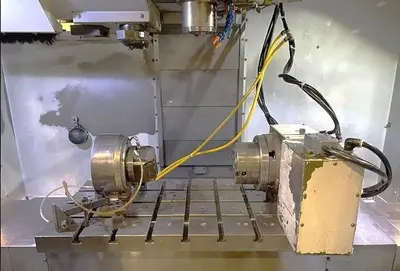

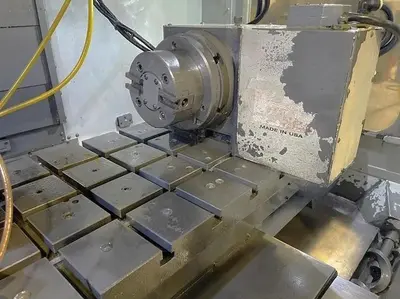

Haas HRT-210 4th Axis Rotary Table with Pneumatic Closer
4th Axis Drive & Wiring
Programmable Coolant Nozzle
High-Speed Machining
24+1 Position Side Mounted Tool Changer

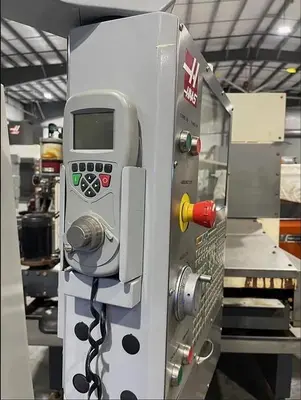

Remote Jog Handle
Auger Style Chip Conveyor
Rigid Tapping
User Definable Macros
Coordinate Rotation & Scaling
Visual Quick Code Programming
M19 Spindle Orientation
Advanced Tool Management
USB Port Interface
3.5" Floppy Disk Interface
DNC Ability
RS 232C Port Interface for DNC Operation
Coolant System with Tank (No Coolant Pump)

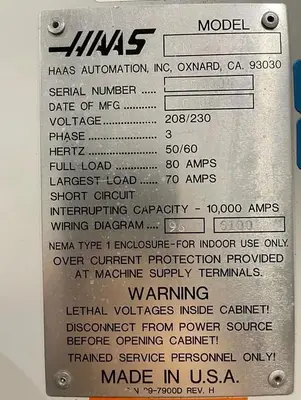

230 Volt 3-Phase
All Available Manuals

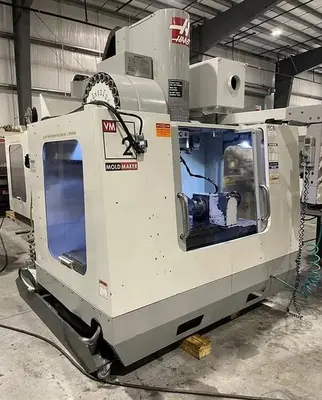

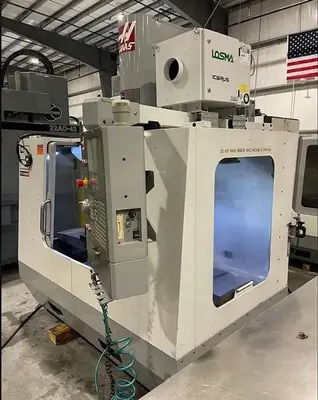

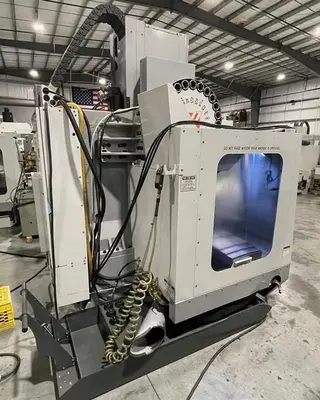

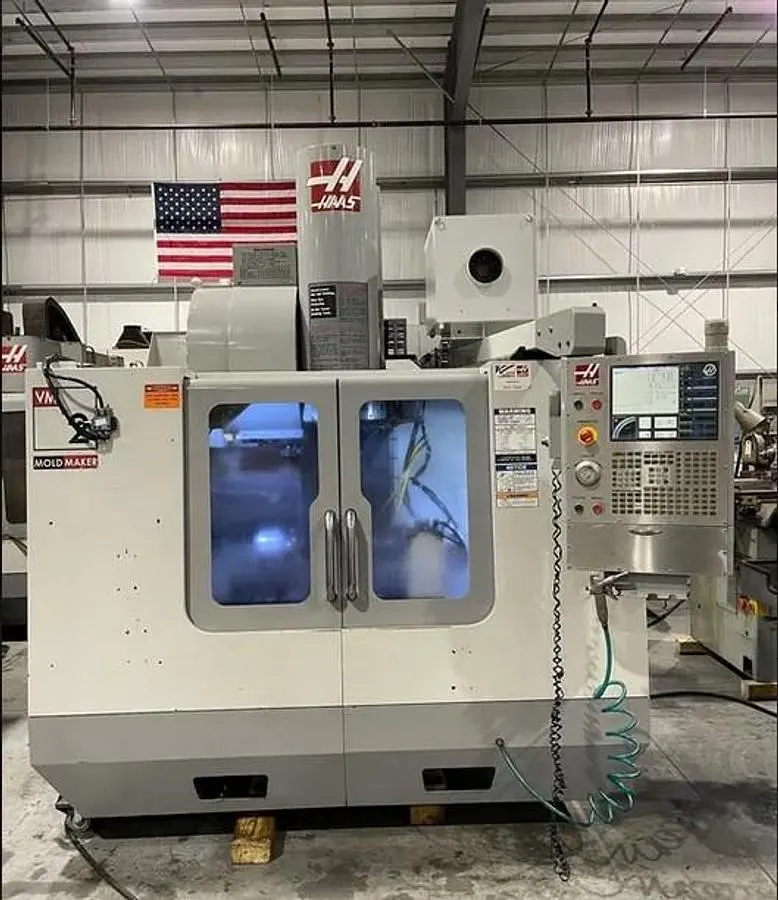

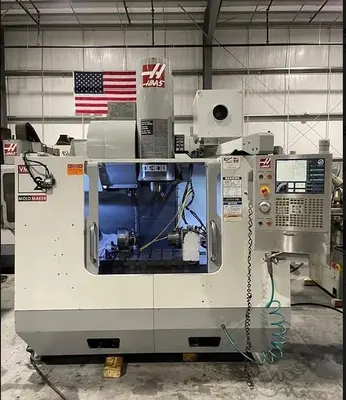

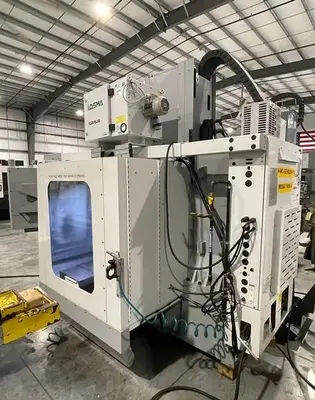

The 2006 Haas VM-2 Vertical Machining Center is designed for precision and efficiency. It features a robust 36" x 18" table capable of supporting up to 3,500 lbs, making it ideal for a variety of heavy-duty machining tasks. The machine offers a generous travel distance with 30" on the X-axis, and 20" on both the Y and Z axes, accommodating larger workpieces with ease.
Equipped with a high-speed, CT 40 spindle capable of reaching 12,000 RPM and powered by a 30 HP motor, the VM-2 can handle demanding operations with precision. The 24+1 tool position side-mount automatic tool changer facilitates quick tool changes in just 3.6 seconds, optimizing workflow efficiency. Additional features like the Haas HRT210 4th Axis Table and programmable coolant enhance the machine's versatility and performance.
Convenience is further ensured with a remote jog handle for easy manual operations. Despite its capabilities, the VM-2 maintains a compact footprint with dimensions of 111" x 91" x 91" and a weight of 7,900 lbs. This used model is a reliable choice for increasing productivity in any machine shop setting.
Table size: 36" x 18"
Table load capacity: 3,500 lbs
X-axis travel: 30"
Y-axis travel: 20"
Z-axis travel: 20"
Spindle taper: CT 40
Spindle speed: 12,000 RPM
Spindle motor 30 min. / cont.: 30 HP
Tool magazine capacity-side mount: 24 + 1 Position ATC
Tool change time: 3.6 seconds
Max. tool diameter / length: 5" / 11"
Rapid traverse rates: 710 IPM
Machine dimensions lxwxh: 111"x91"x91"
Machine weight: 7,900 lbs.
