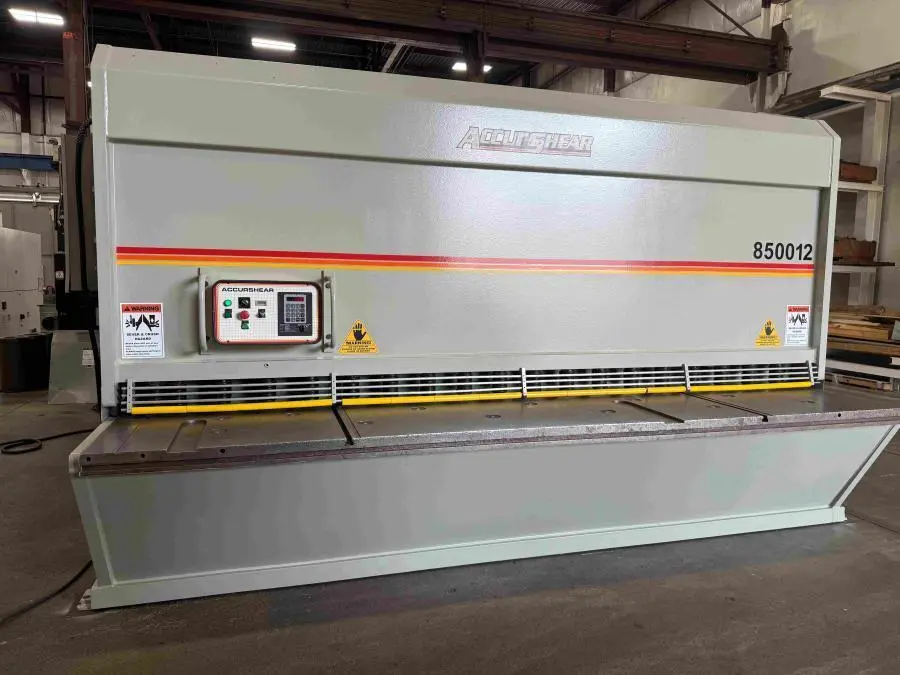

ACCURSHEAR 850012 HYDRAULIC POWER SQUARING SHEAR, NEW: 1998
| Max Thickness | 0.5" | 12.7 mm |
| Length of Blade | 12' | 3.7 m |
| Hyd/Mech | Hyd | Hyd |
| Back Gauges | 36" | 914.4 mm |
| Power | 40 hp | 29.8 kW |
| SPM | 9 strokes/min. | 9 strokes/min. |
CAPACITY (MILD STEEL): 1/2" x 12'
MAX. CUTTING LENGTH 144"
STROKES PER MINUTE: 21 - 44
NUMBER OF HYDRAULIC HOLD DOWNS: 19
WORKING HEIGHT: 34"
DISTANCE UNDER HOLD DOWNS: 1/2"
MAIN MOTOR: 40 HP
ELECTRICAL: 230/460/3/60
APPROX. DIMENSIONS: 174"(L) x 94"(W) x 97"(H)
APPROX. WEIGHT: 33,000 LBS
FRONT OPERATED 36" PROGRAMMABLE "GO-TO" BACK-GAUGE
GROOVE ON TOP OF BED FRONT TO BACK
POWER BLADE ADJUSTMENT
MANUAL STOKE ADJUSTMENT
BALL TRANSFERS IN TABLE
1) 4' FRONT SUPPORT
1) 6' SQUARING ARM
