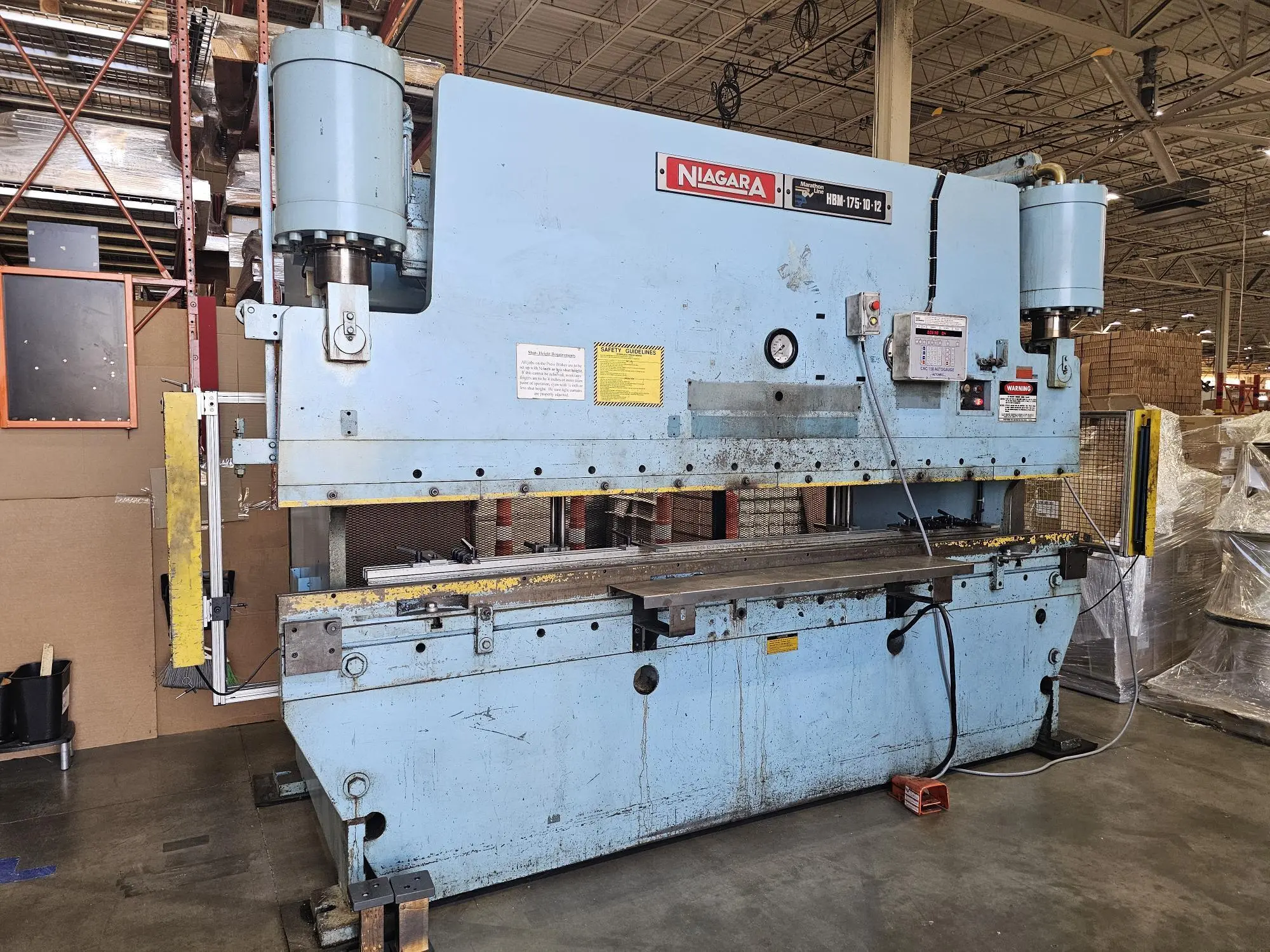

175-ton capacity, 12' bed, 10'6" between housings. Features 10" stroke, 30 HP motor, and Automec CNC150 back gauge. Ideal for fabricating tasks with powered ram adjustment and foot pedal.
| Tonnage | 175 T | 158.758 t |
| Type | HYD | HYD |
| OA Length | 12' | 3.7 m |
| OA (Overall) Length | 144" | 3,657.6 mm |
| Between Housings | 10' | 3 m |
| Between Housings | 6" | 152.4 mm |
| Stroke | 10" | 254 mm |
| # Axis | 2 | 2 |
CAPACITY: 175 TON
OVERALL LENGTH OF BED: 12'
DISTANCE BETWEEN HOUSINGS: 10'6"
STROKE: 10"
OPEN HEIGHT: 17"
CLOSED HEIGHT: 7"
RAM SPEED, RAPID: 130 IPM
RAM SPEED, APPROACH: 65 IPM
RAM SPEED, PRESSING: 21 IPM
RAM SPEED, RETURN: 130 IPM
ELECTRIC FOOT PEDAL: YES
RAM ADJUSTMENT: POWERED
MOTOR: 30 HORSEPOWER
FLUSH FLOOR STANDING
AUTOMEC 150 CNC BACKGAUGE
Automec Autogauge CNC150
