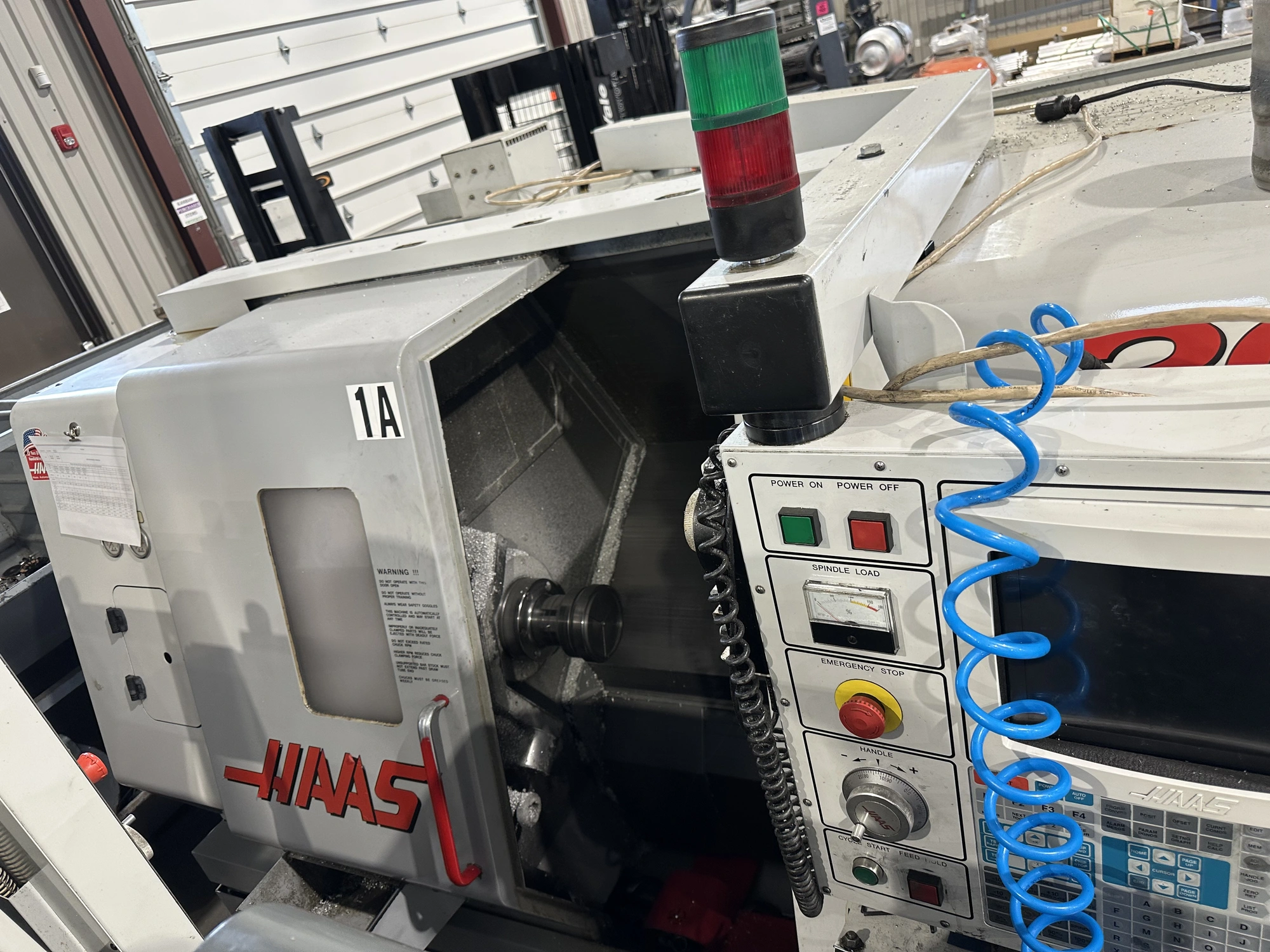

Used HAAS SL-20T CNC lathe.
New in 1999
23" swing, 24" machining length
20 hp power, 4,000 RPM
| Swing | 23" | 584.2 mm |
| Machining Length | 24" | 609.6 mm |
| # Axis | 2 | 2 |
| Chuck Size | 8" | 203.2 mm |
| Bar Capacity | 2" | 50.8 mm |
| Power | 20 hp | 14.9 kW |
| Max RPM | 4,000 RPM | 4,000 RPM |
| Turning Dia | 10.3" | 261.62 mm |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Control | CNC (Haas) | CNC (Haas) |
Max Cutting Diameter: 10.3″
Maximum Cutting Length: 20″
Standard Bar Capacity: 2″
X Axis Travel: 8.45″
Z Axis Travel: 20″
Turret Stations: 10
Max RPM: 4,000
Peak Spindle HP: 20
Spindle Nose: A2-6
Equipped with tailstock,
