| Swing | 20.5" | 520.7 mm |
| Machining Length | 21.7" | 551.18 mm |
| Chuck Size | 8" | 203.2 mm |
| Bar Capacity | 2.625" | 66.675 mm |
| Power | 20 hp | 14.9 kW |
| Max RPM | 4,000 RPM | 4,000 RPM |
| Turning Dia | 9.1" | 231.14 mm |
| Tailstock | Yes | Yes |

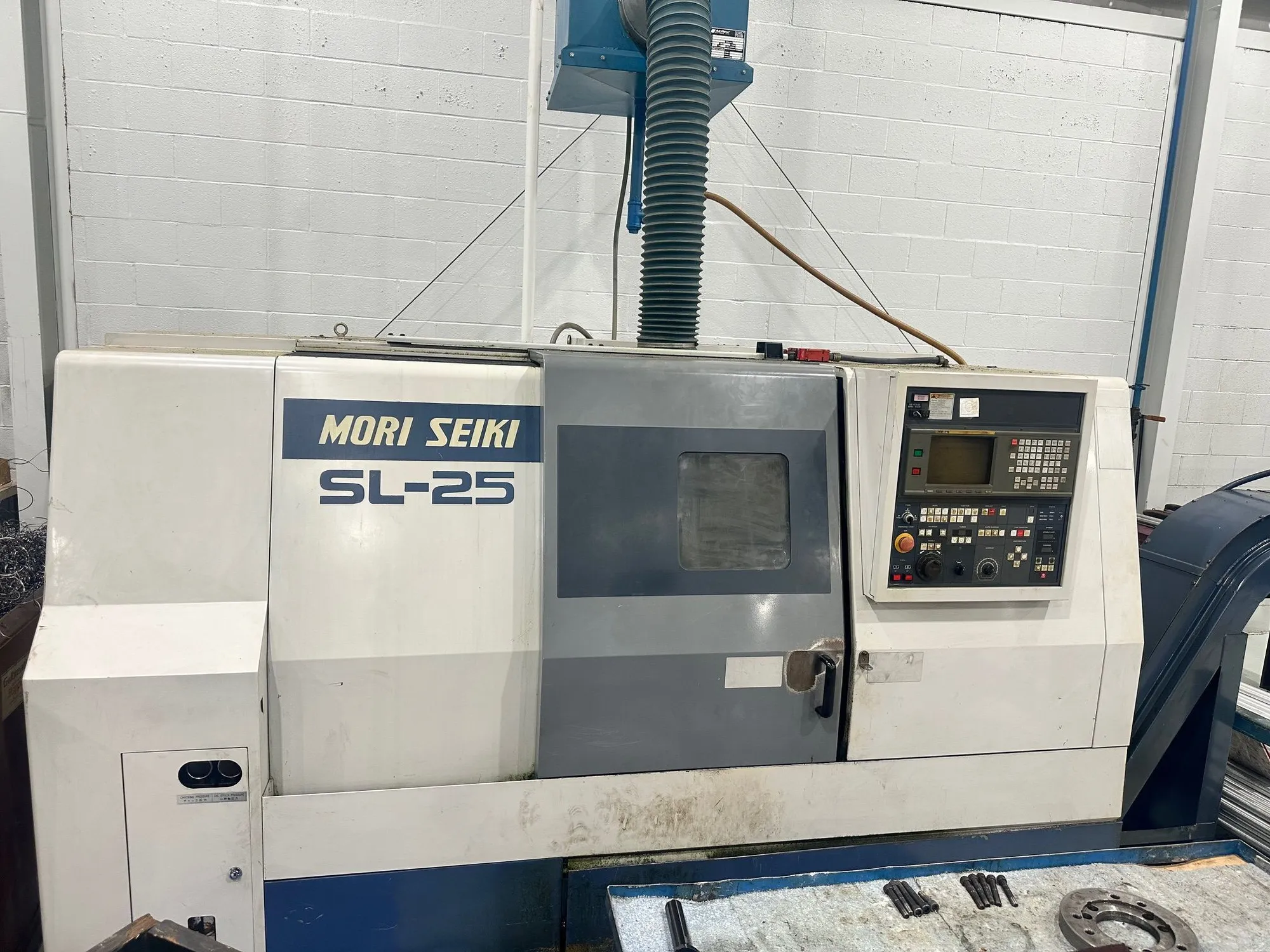

Mori Seiki SL25 CNC Lathe
Max Turning Diameter: 13.4″
Max Turning Length: 20.9″
Max Bar Capacity: 2.65″
Swing Over Cross Slide: 13.8″
Swing Over Bed: 20.5″
Distance Between Centers: 24.6″
X-Axis Travel: 11.3″
Z-Axis Travel: 43.33″
Rapid Traverse X Axis: 790 IPM
Rapid Traverse Z Axis: 945 IPM
Spindle Bore: 3.1″
Spindle Nose: A2-6
Spindle Speed: 35 – 3,500 RPM
Spindle Motor: 20 HP
Turret Capacity: 12 Stations
Turret Index Time: 1 Second
Tailstock Quill Diameter: 4.33″
Tailstock Quill Stroke: 3.93″
Tailstock Taper: MT-4
Electrics: 220 V, 60 Hz, 3 Ph
Approx Dimensions (l x w x h): 110″ x 68″ x 80″
Approx Dimensions with Conveyor: 150″ x 68″ x 80″
Approx Weight : 13,000 LB
