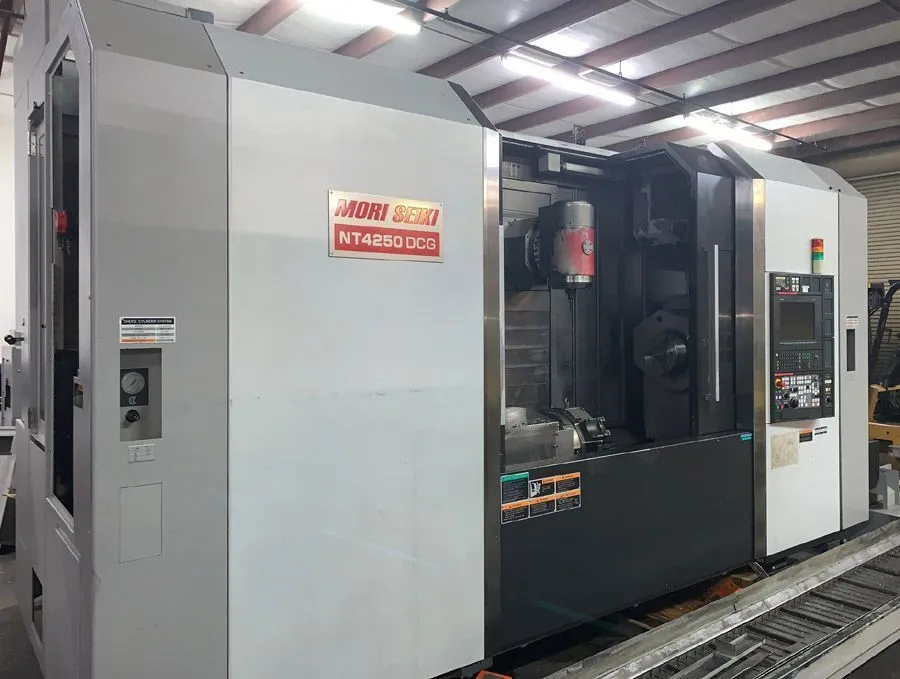

USED 2006 MORI SEIKI NT-4250DCG/1500SZ

Capacity-
Max Swing of Workpiece: 28.7”
Swing Over Cross Slide: 28.7” / 15.7” Turret 2
Max. Distance Between Centers: 73.3”
Max. Turning Diameter: 25.9” / Turret 2: 13.7”
Max Turning Length: 60.7”
Car Work Capacity: 3.1”
Travel-
X-Axis Travel : 29.5”
Y-Axis Travel : +/- 8.3”
Z-Axis Travel : 61” + 3.9”
B-Axis Rotation Range : +/-120 Degree
X-Axis Travel : 7.7”
Z-Axis Travel : 60”
Spindle 1-
Max. Spindle Speed: 4,000 RPM
No. of Spindle Speed Ranges: 2
Type of Spindle Nose: JIS A2-8
Through-Spindle Hole Diameter: 3.6”
Min. Spindle Indexing Increment: 0.0001 Degree
Spindle Torque <25%ED/10 Min/30 Min/cont>: 534 / 442.5 / 396.8 / 302.4 ft-lbf
Spindle 2-
Max. Spindle Speed: 4,000 RPM
No. of Spindle Speed Ranges: 2
Type of Spindle Nose: JIS A2-8
Through-Spindle Hole Diameter: 3.6”
Min. Spindle Indexing Increment: 0.0001 Degree
Spindle Torque <25%ED/10 Min/30 Min/cont>: 534 / 442.5 / 396.8 / 302.4 ft-lbf
Tool Spindle (Turret 1)-
No. of Tool Stations: 1
B-Axis Indexing Time: .6 sec / 90 Degree
Min. B-Axis Indexing Increment: 1 Degree??
Max. Tool Spindle Speed: 12,000 RPM
Taper Hole of Rotary Tool Spindle: Capto C6
Tool Storage Capacity: 40
Max. Tool Diameter : 2.7”
Max Tool Diameter : 5.5”
Max Tool Length / Tool Mass: 15.7” / 17.6 lbs
Tool Changing Time (Tool to Tool): 1.25 sec.
Spindle Torque (10%ED / Cont): 88.5 / 32.5 ft-lbf
Turret 2-
No. of Tool Stations: 12
Turret Indexing Time: .28 sec.
Max. Rotary Tool Spindle Speed: 6000 RPM
Spindle Torque (15%ED / 5 min / Cont.): 29.5 / 22.1 / 11.1 ft-lbf
Feed rate-
Rapid Traverse
Tool Spindle X: 1968 IPM / Y: 1181 IPM: Z:1968 IPM
Turret 2 X: 1181 IPM / Z:1181 IPM
Spindle 2 ZS: 1181 IPM
Motors-
Spindle 1 Drive Motor (30 min / Cont): 30 HP / 24.7 HP
Spindle 2 Drive Motor (30 min / cont): 30 HP / 24.7 HP
Tool Spindle Drive motor (10 min / cont): 24.7 HP / 15 HP
Turret 2 Rotary Tool Spindle Drive motor: 7.5 HP (5 min) / 5 HP (cont. )
Machine Size: 209” x 118” x 117”
Machine Weight: 56,320 lbs.
