USED 2008 3M-MATIC Case Sealer
Overview
Description
The machine originates from a high-profile pharmaceutical manufacturing plant (part of a large Pharma group that operates 18 industrial sites and 3 development centres located across Europe).
2x available units- both in the same excellent condition
1997
2008
Excellent condition with little use.

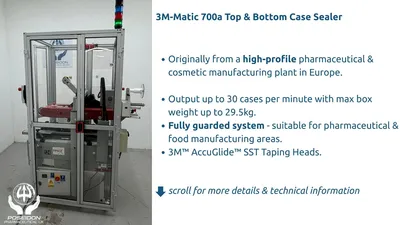

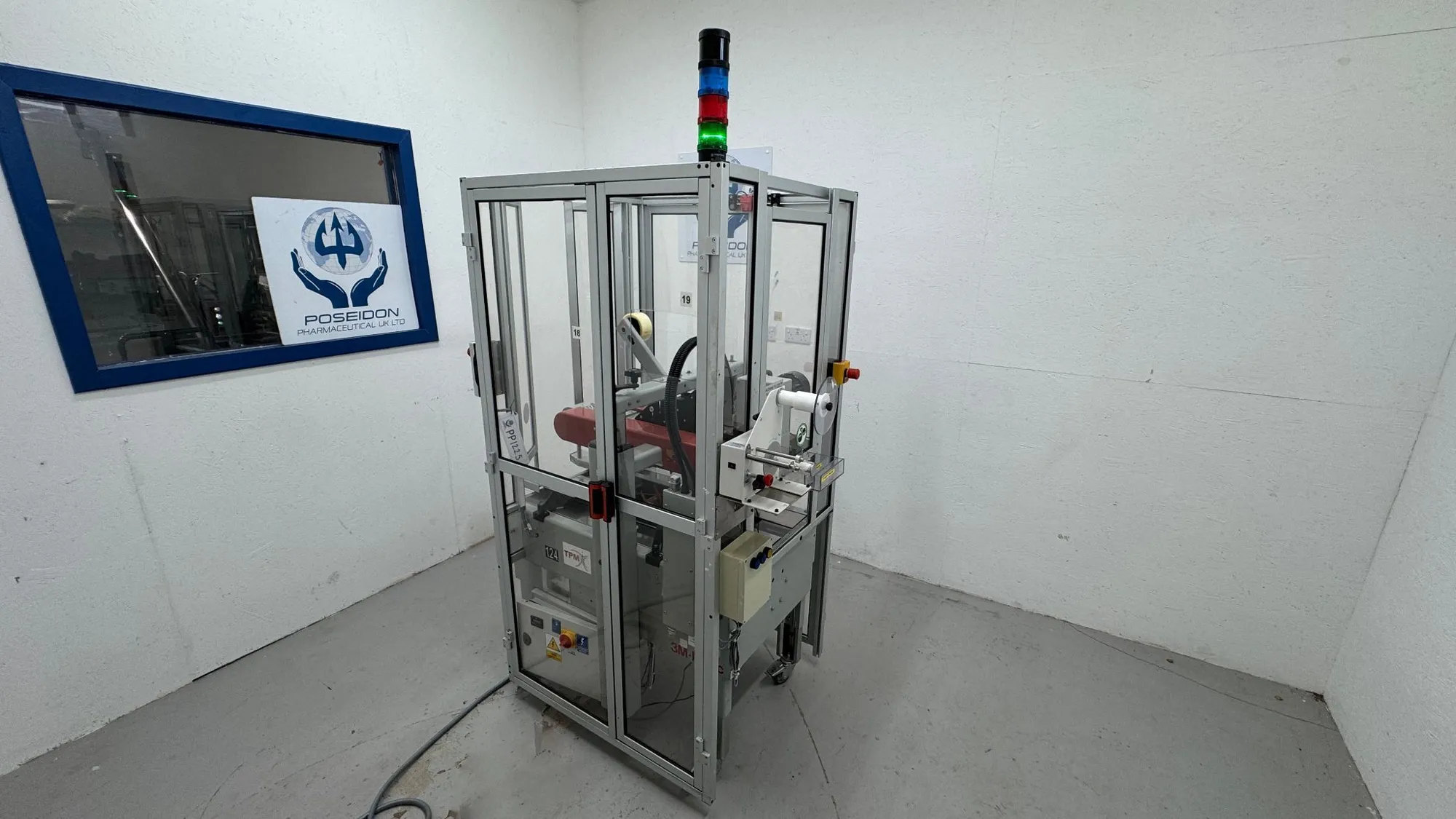

3M-Matic™ Adjustable Case Sealer 700a-s is as a used case sealer, designed to seal the top and bottom centre seams of up to 30 cartons per minute.
Working Description:
Fully guarded construction-suitable for demanding Pharmaceutical and Food grade manufacturing areas
Stainless steel construction for use in corrosive and high moisture environments
Equipped with 3M™ AccuGlide™ SST Taping Heads designed to apply a “C” clip of Scotch® pressure-sensitive type film box sealing tape to the top and bottom centre seam of regular slotted containers.
Adjustable top and bottom belt drive system for reliable conveyance of heavier or tall/light boxes.
Compression rollers squeeze flaps together to create a tight centre seam
Gearmotors provide power to the 4 drive belts, and adjustable side guides position and align your boxes for quick and easy throughput.
Technical information:
Output up to 30 cases per minute
Box Weight (filled): 2.3 kg to 29.5 kg.
Contents must support flaps.
Box Size:
Length: 150mm to unlimited
Width: 150mm to 550mm
Height: 120mm to 620mm
Cartons narrower than 250 mm in width may require more frequent belt replacement.
Tape Width - 36mm [1 1/2 inch] minimum to 48mm [2 inch] maximum
Tape Roll Diameter - up to 405mm [16 inch] maximum on a 76mm [3 inch] diameter core (Accommodates all system roll lengths of Scotch® film tapes.)
Power Requirements - Electrical – 120 VAC, 60 Hz, 3.25 A Pneumatic – 6.5 bar gauge pressure [95 PSIG], 2.5 SCFM 75 litre /minute @ 21° C., 1.01 bar maximum at maximum cycle rate. A pressure regulator/fi litre is included.
Specifications
Technical information:
Output up to 30 cases per minute
Box Weight (filled): 2.3 kg to 29.5 kg.
Contents must support flaps.
Box Size:
Length: 150mm to unlimited
Width: 150mm to 550mm
Height: 120mm to 620mm
Cartons narrower than 250 mm in width may require more frequent belt replacement.
Tape Width - 36mm [1 1/2 inch] minimum to 48mm [2 inch] maximum
Tape Roll Diameter - up to 405mm [16 inch] maximum on a 76mm [3 inch] diameter core (Accommodates all system roll lengths of Scotch® film tapes.)
Power Requirements - Electrical – 120 VAC, 60 Hz, 3.25 A Pneumatic – 6.5 bar gauge pressure [95 PSIG], 2.5 SCFM 75 litre /minute @ 21° C., 1.01 bar maximum at maximum cycle rate. A pressure regulator/fi litre is included.
