USED 2006 MARCHESINI PS-300

Originates from prominent pharmaceutical manufacturing in Europe.

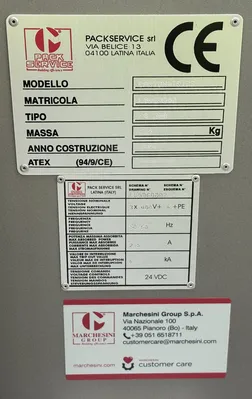

CE Marked.

Excellent used condition.

Working Description

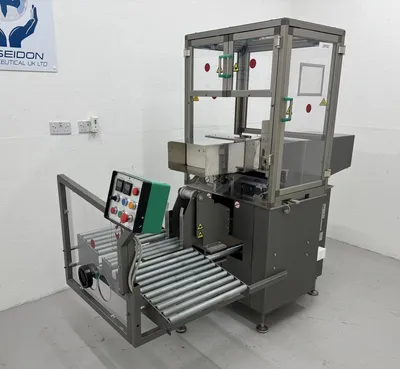

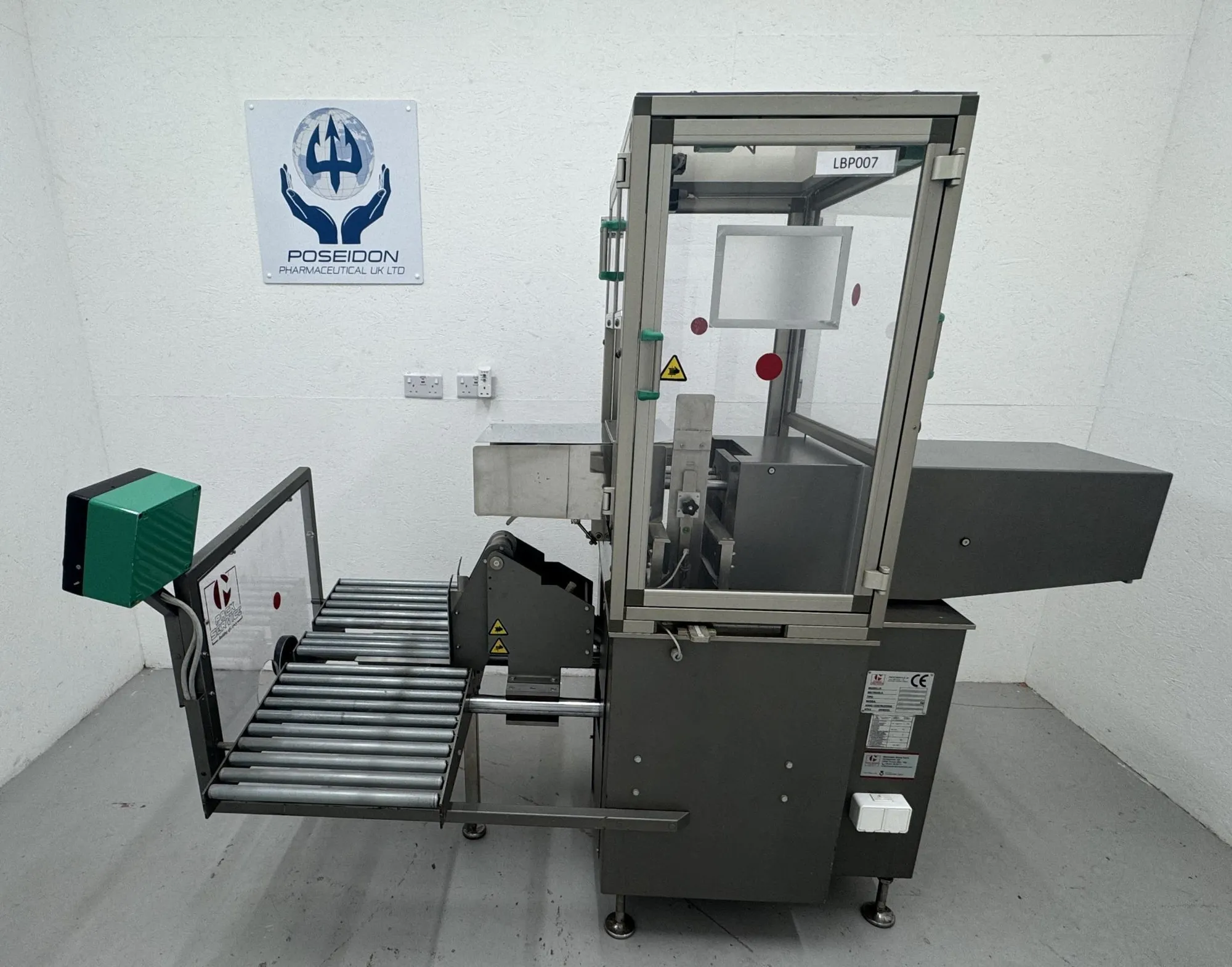

Marchesini Pack Service PS300 semi-automatic case packer for small to medium output production requirements; suitable for: Contract Packing, Pharmaceutical, Cosmetics, Nutraceutical, Medical Devices and other industries.

The pre-formed cases must be placed directly on the loading area. Cartons are fed by conveyor from the machine in front of PS300 into its stacking unit, where they are collated upwards, as it is programmed through the Operator Interface Panel.

The case is then automatically fed and discharged on a free running conveyor.

Wide range of cases and products working sizes

Case feeding area safe and free from any mechanical movement
Fast and easy change over, with digital indicators and quick fixing of mobile change parts

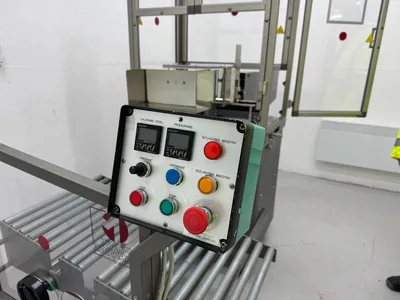

Omron HMI
Fully enclosed structure with safety guards
Complete with manuals
The pre-formed cases must be placed directly on the loading area. Cartons are fed by conveyor into the stacking unit, where they are collated upwards, as it is programmed through the Operator Interface Panel. The case is then automatically fed and discharged on a free running conveyor.

Technical info:

· Case sizes:

- Length: 200mm to 600mm

- Width: 125mm to 400mm

- Height 65mm to 400mm

· Individual product box sizes:

- Length: 25mm to 580mm

- Width: 10mm to 120mm

- Height: 65mm to 300mm

· Machine size: Length: 2300mm x Width: 1500mm (incl. outfeed roller conveyor) Height: 1900mm Weight 650kg.

· The pre-formed cases must be placed directly on the loading area. Cartons are fed by conveyor into the stacking unit, where they are collated upwards, as it is programmed through the Operator Interface Panel. The case is then automatically fed and discharged on a free running conveyor.

Technical info:

· Case sizes:

- Length: 200mm to 600mm

- Width: 125mm to 400mm

- Height 65mm to 400mm

· Individual product box sizes:

- Length: 25mm to 580mm

- Width: 10mm to 120mm

- Height: 65mm to 300mm

· Machine size: Length: 2300mm x Width: 1500mm (incl. outfeed roller conveyor) Height: 1900mm Weight 650kg.
