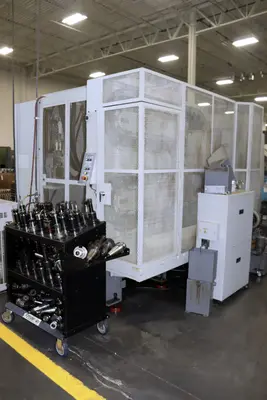

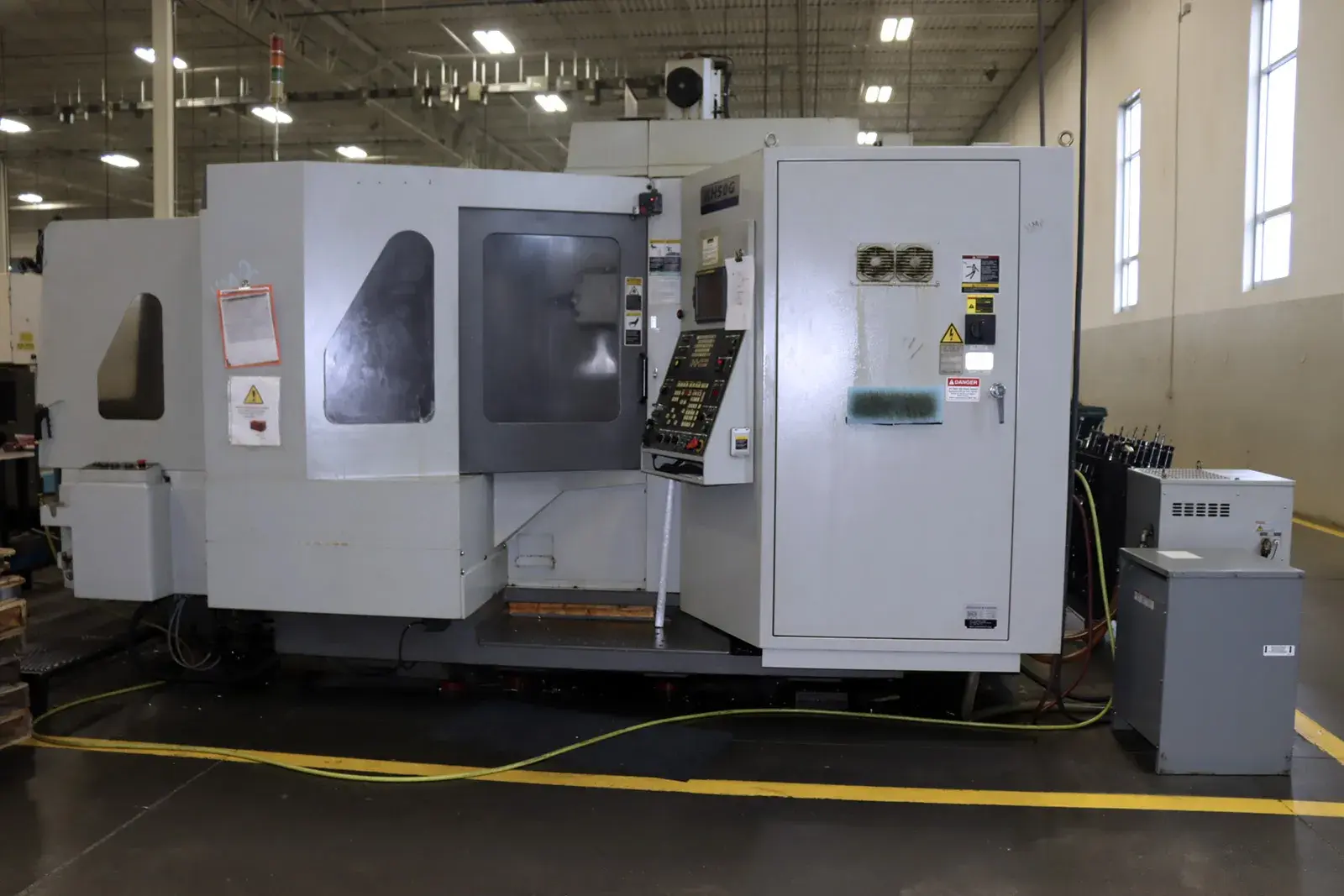

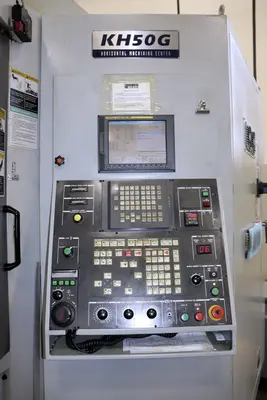

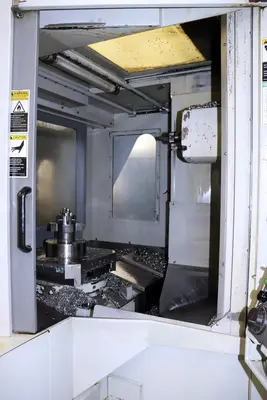

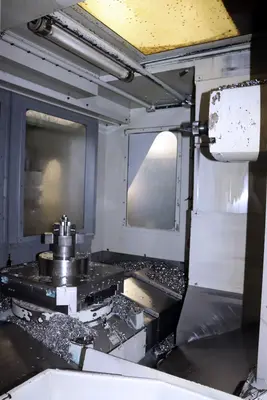

USED 2008 HYUNDAI KIA KH50G

Used Hyundai Kia KH50G. This pre-owned Horizontal Machining Center is in great working condition and can be securely delivered to your facility floor. If you have any technical questions about this Hyundai Kia Horizontal Machining Center we can review machine specifications. To request a quote, inquire about rigging and trucking or to schedule an inspection, contact us today.

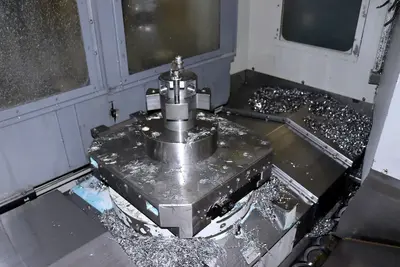

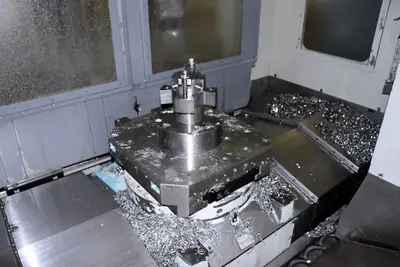

Number of Pallets: 2
X Axis Travel: 29.9"
Y Axis Travel: 27.8"
Z Axis Travel: 25.6"
Spindle Center To Table Top: 0 ~ 29.5"
Spindle Nose to Table Center: 5.3" ~ 30.9"
Table Load Capacity: 800LBS
B-Axis Indexing: 1 Degree
Spindle Taper: CAT #50
Spindle Speeds: 8000RPM
Spindle Speed Ranges: 2
Max Torque Lbs-Ft (1 min): 538 FT LBS
Spindle Motor: 25 HP AC
Rapid Traverse X / Y / Z: 788 , 788, 788IPM
Cutting Feed Rate: 1 ~ 5000 IPM

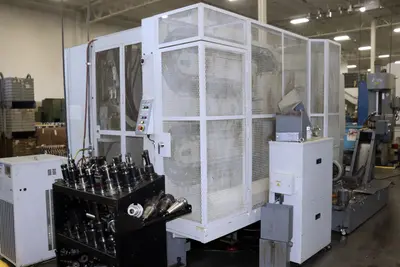

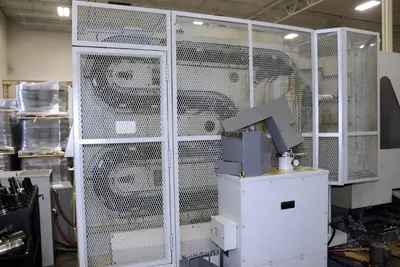

ATC Capacity: 60 ATC
Max Tool Dia: 4.3" /9.6"
Max Tool Length: 15.7"
Max Tool Weight: 44LBS
Machine Weight (Approx): 26,455 LBS

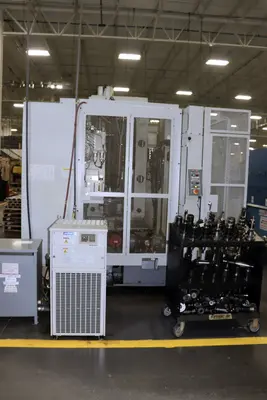

Oil Chiller
Transformer
1000 PSI High Pressure Thru Spindle Coolant
Chip Conveyer
Coolant Tank
Tool probe
