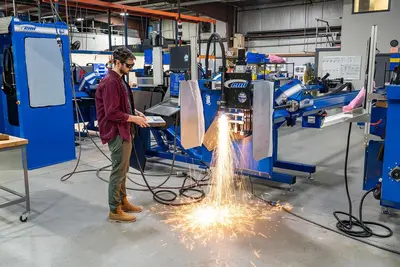

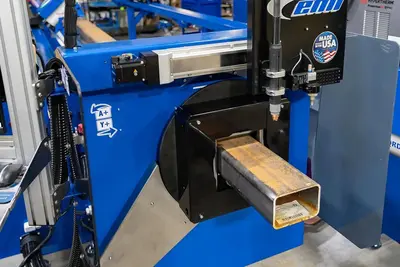

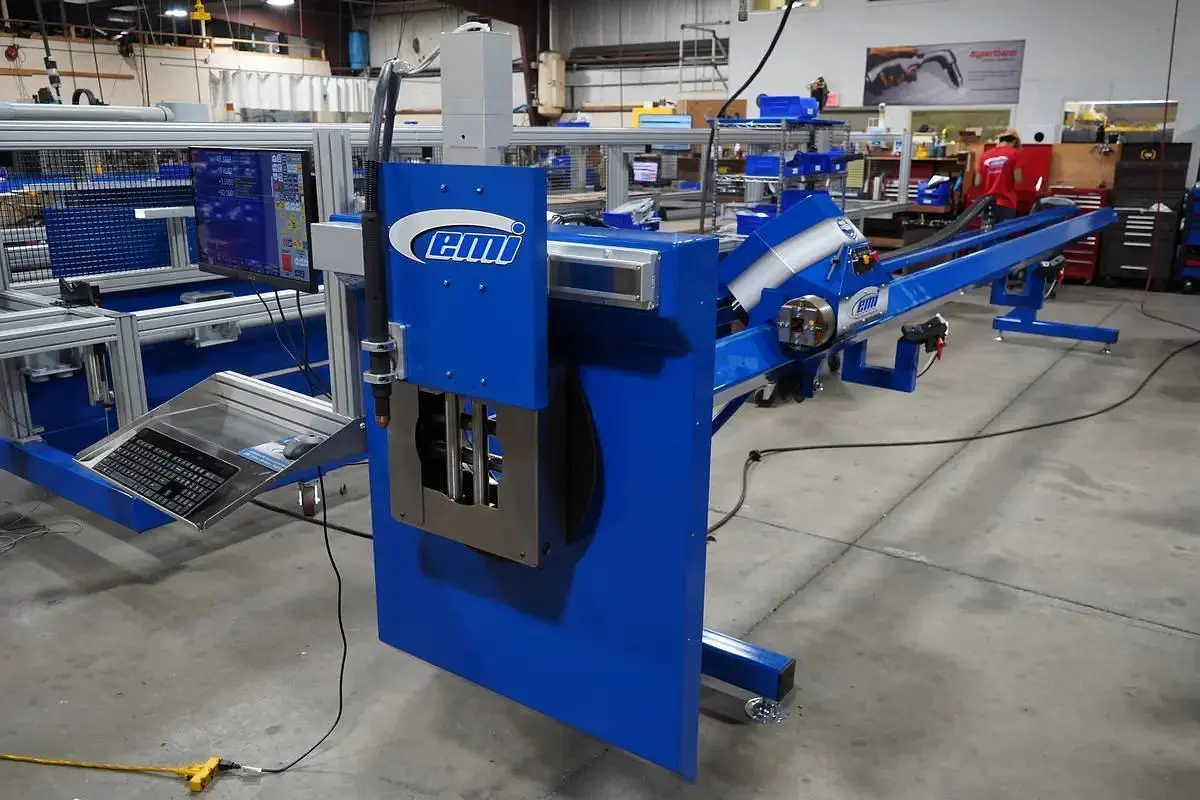

NEW EMI EL-SQRD

Cost-Effective Multi-Profile Plasma Cutting with Manual Loading

Cut, Miter, Cope, Mark, Burn Holes & Slots
Round stock up to 6.625”
Square & Rectangle stock up to 6” x 6”
Channel stock up to C6 x 13lbs
Angle stock up to 6” x 6”
Flat stock up to 8″

CNC Tube Plasma Cutting You Can Count On
Our EL-SQRD CNC tube plasma cutting system gives fabricators the perfect stepping stone to the benefits of CNC automation. Thanks to robust build quality, smart design, and easy programming, the EL-SQRD will help you ramp up production of tube, pipe, angle, channel and miscellaneous metals with ease.

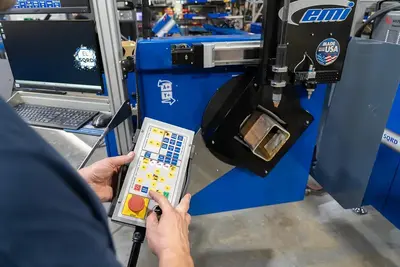

For fabricators who are new to CNC cutting and automation, the EL-SQRD comes standard with our proprietary Piecemaker software. This intuitive software was designed by fabricators for fabricators, and allows you to quickly program the machine right at the machine simply by inputting a few data points right off the drawing.
For more advanced shops, the EL-SQRD optionally integrates with the Lantek Flex 3D system. This allows the machine to connect directly into the latest shop management software, and import just about any industry-standard file type.

Key Features & Benefits of the EL-SQRD

Process Round, Square, Rectangle, Channel, Angle and Flat Stock
Save Time by Combining Multiple Processes Into a Single Step
Cut, Miter, Cope, Mark, Burn Holes and Slots
Cut Any Combination of Diameters and Intersection Angles With No Tooling Changes
Eliminate Manual Measuring, Sawing, Notching, Drilling and Deburring
Eliminate Repetitive Material Handling and Downstream Processes
Produce Weld-Ready Miters and Copes Right From the Machine
Significantly Improve Fit-Up and Weld Penetration
Save Substantial Time Producing the Parts You Need
Additional Features
Closed-Loop Servo Motors for Best-In-Class Accuracy and Repeatability
Breakaway Torch Prevents Costly Downtime

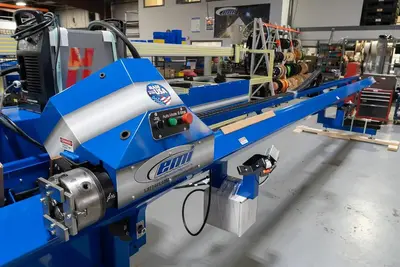

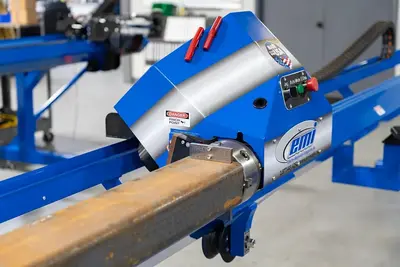

Self-Centering Front Support for Easy Material Changeover
Universal Front Material Support Reduces Time Switching From One Profile to the Next
Automatic Material Supports Make Loading a Breeze
Specifications
Processes
Cuts
Miters
Copes
Marks
Burns Holes & Slots
Material Sizes
Round stock up to 6.625”
Square & Rectangle stock up to 6” x 6”
Channel stock up to C6 x 13lbs
Angle stock up to 6” x 6”
Flat stock up to 8”
Plasma System Options
Hypertherm Powermax105 SYNC
Hypertherm Powermax85 SYNC (standard)
Material Length
Maximum 24’
Full Stick Load Capacity
Maximum 20 lbs / ft
Max Work Piece Weight
480 lbs
Machine Footprint
337″ long, 64″ wide
Power Requirements
Machine Cabinet Requirements
220VAC, 25A 1-PH
Hypertherm Requirements
Varies based on Powermax model
