NEW HYD-MECH H-20A

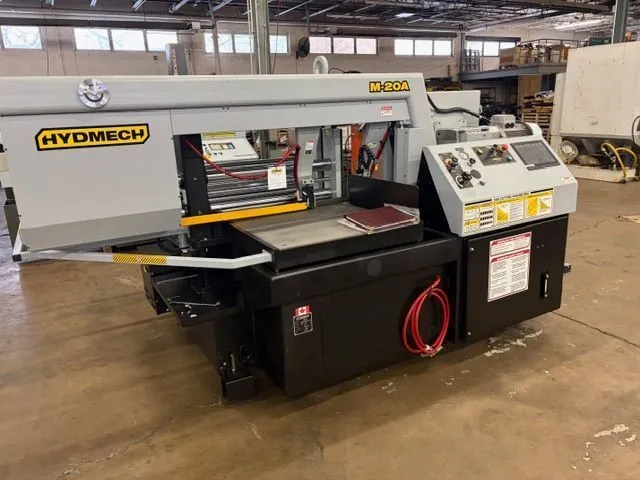

2025 HYD-MECH M20A Bandsaw, 20" x 30" capacity, Mitering cap at 45 degrees 20", 30 degrees 12"
Over the past forty five years, HYDMECH has become a worldwide leader in metal band saw and cold saw technology and metal sawing solutions.
Our progressive attitudes combined with our innovative solutions in design and manufacturing have earned us a solid reputation as a company that meets the sawing challenges head on for all our customers. And it all started with the vision of one man.

Polish immigrant and engineer, Stan Jasinski, founded HYDMECH in 1978 in Woodstock, Ontario. Originally, HYDMECH was an engineering consulting firm specializing in hydraulic and forestry equipment. But frustrated with searching for a saw to suit his needs, Stan exercised his engineering expertise to build his own mitering saw suddenly changing the company’s focus in 1980.

DIMENSIONS

IMPERIAL METRIC

Capacity round 20” dia 500mm dia

rectangular 20” x 30” 500 x 750mm

@ 45 deg 20” round, 18x20” rec. 400mm round, 350x400mm rec.

@ 30 deg 12” round, 12x20” rec. 300mm round, 300x400mm rec.

Length Control programmable up to 99 jobs, with 5 in queue

Blade: length 20’ 6” (23’2” w/ extended head) 6250mm (7061mm)

width 1 1/2” 38mm

thicknes .050” 1.25mm

Blade: Speed 60-350 SFM 18-107 m/min

Blade: Tension (hydraulic) 30,000 psi 207000 kPa

Blade: Guides: carbides (coolant lubricated)

Blade: Wheel Diameter 22” diameter 560 mm

Motors: blade drive 10HP 7.5kW

hydraulic 3HP 2.2kW

Pumps: hydraulic pump 6 1/2 gpm 24.5 L/min

(pressure compensated)

coolant pump 3 1/2 gpm (150W) 13.2 L/min (150W)

Hydraulic Tank 11 US gallons 42 L

Hydraulic System Pressure 950 psi 6544kPa

Hydraulic Blade Tension Pressure 950 psi 6544kPa

Vise Control: hydraulic

Shuttle Stroke (single stroke multi shuttle capability) 0-33” 0-838mm

Table Height 32” 812mm

Machine Weight 7700 lbs. 3500 kg

Maximum Workload 8000 lbs. 3650 kg

Overall Dimensions 140” W x 90” L x 66” H 35560 W x 2286 L x 1676mm H

Noise Level 75-95 db 75-95 db
