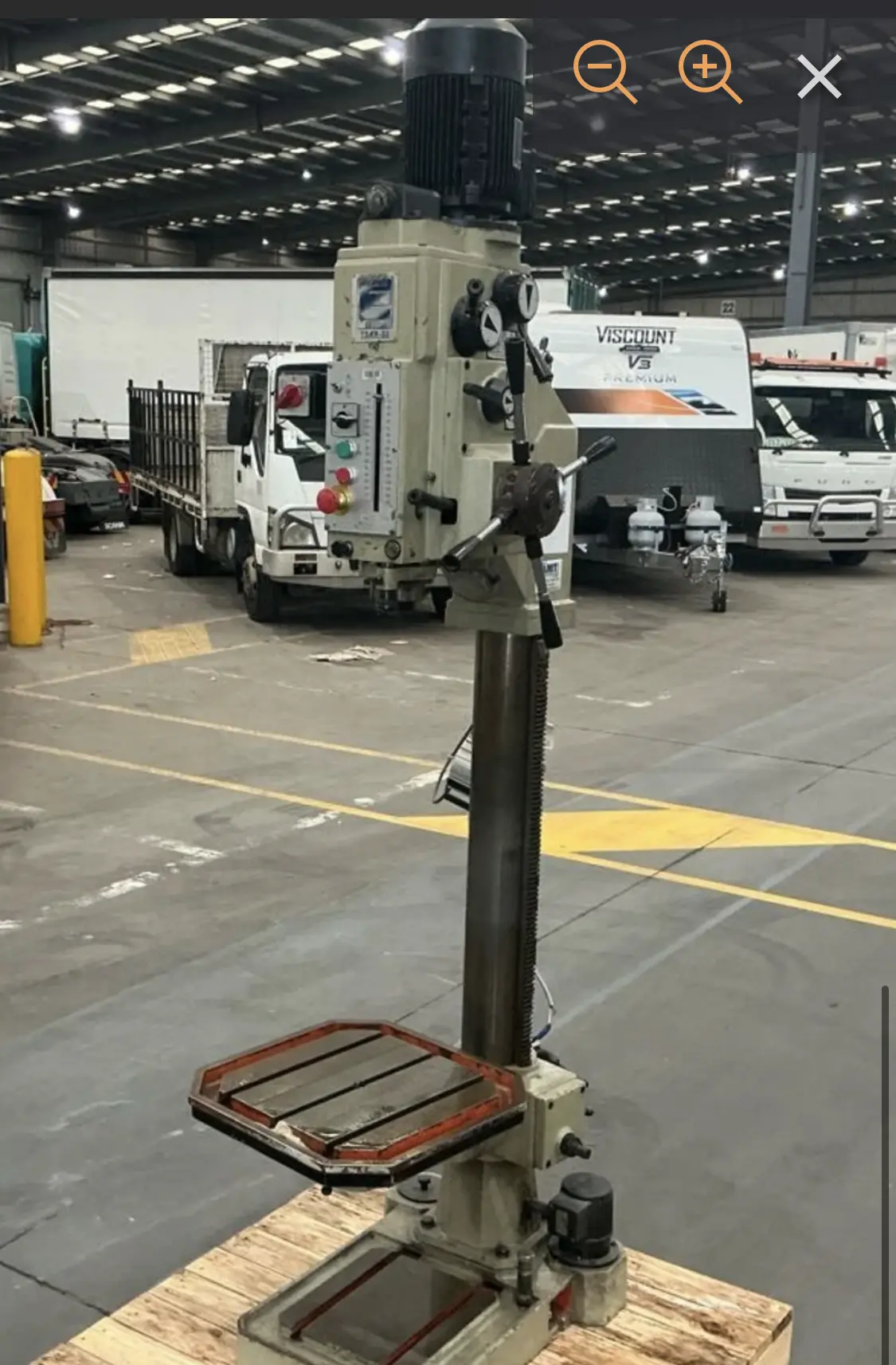

USED ERLO TSAR.32

ERLO TSAR-32 – Specification Sheet

Model: TSAR-32
Type: Geared Head Drill Press / Drill–Tap Machine

Capacity

Max Drilling Capacity (Steel): 32 mm
Max Tapping Capacity: M28
Spindle Taper: MT-4
Spindle Stroke (Quill Travel): 160 mm

Table / Travel / Dimensions

Throat (Spindle to Column): 300 mm
Spindle to Table Distance: 70 – 885 mm
Table Size: 400 × 420 mm
Column Diameter: 125 mm
Speeds & Motor
Spindle Speeds (8-Speed): 75 – 2,100 rpm
Motor Power: 0.75 – 1.15 kW (varies by configuration)
Voltage: 400V (typical)

Weight
Approx. Weight: 300–320 kg
