| Tonnage | 88 T | 79.832 t |
| Type | HYD | HYD |
| Overall Length | 98.6" | 2.5 m |
| Between Housings | 6.6' | 2 m |
| Stroke | 3.93" | 99.822 mm |
| # Axis | 3 | 3 |
| Control | CNC (NC9-EXII) | CNC (NC9-EXII) |
| Dimensions | 98″ X 60″ X 81″ | 98″ X 60″ X 81″ |
| Weight | 11,000 Lbs | 11,000 Lbs |
Capacity: 88 Ton
Overall Bending Length: 98″
Distance Between Housings: 86″
Stroke: 0″ – 3.94″
Open Height: 14.57″
Shut Height: 10.67″
Throat Depth: 15.76″
Back Gauge Travel: 19.6″
Ram Speeds:
Approach: 106″ Per Minute
Forming: 19” Per Minute
Return: 122” Per Minute
Main Motor: 7.5 HP
General:
Power: 220v / 3-Phase
Overall Dimensions: 98″ X 60″ X 81″ High
Weight: 11,000 lbs

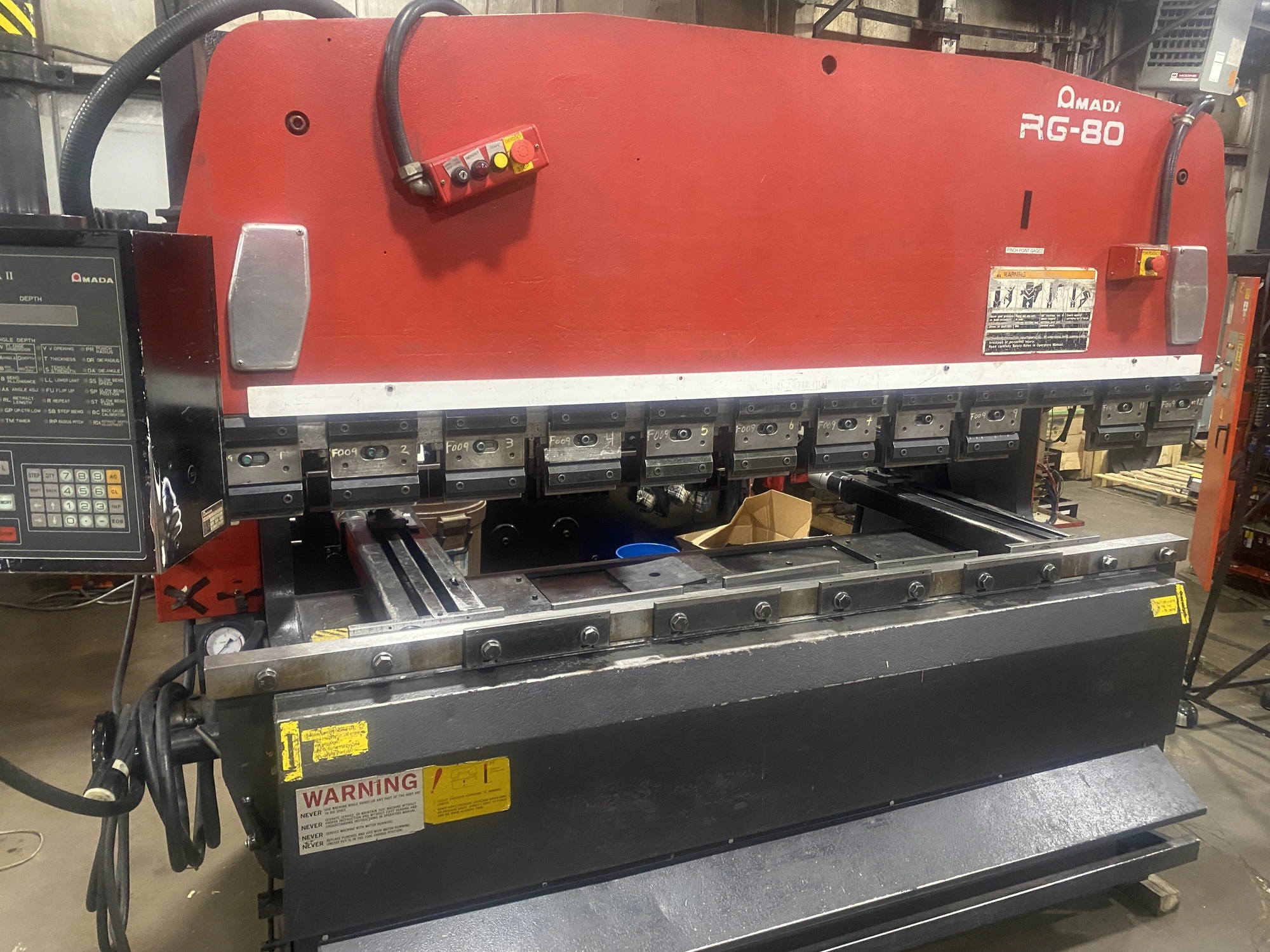

AMADA RG-80 CNC Equipped With:
NC9-EXII CNC Control
3 Axis Control and Back Gauge
Remote Handwheel Depth Control
Pneumatic Fingers
Foot Treadle
Pressure Gauge
RS-232 Port
