USED 2013 NAKAMURA TOME SUPER NTMX
Overview
Description

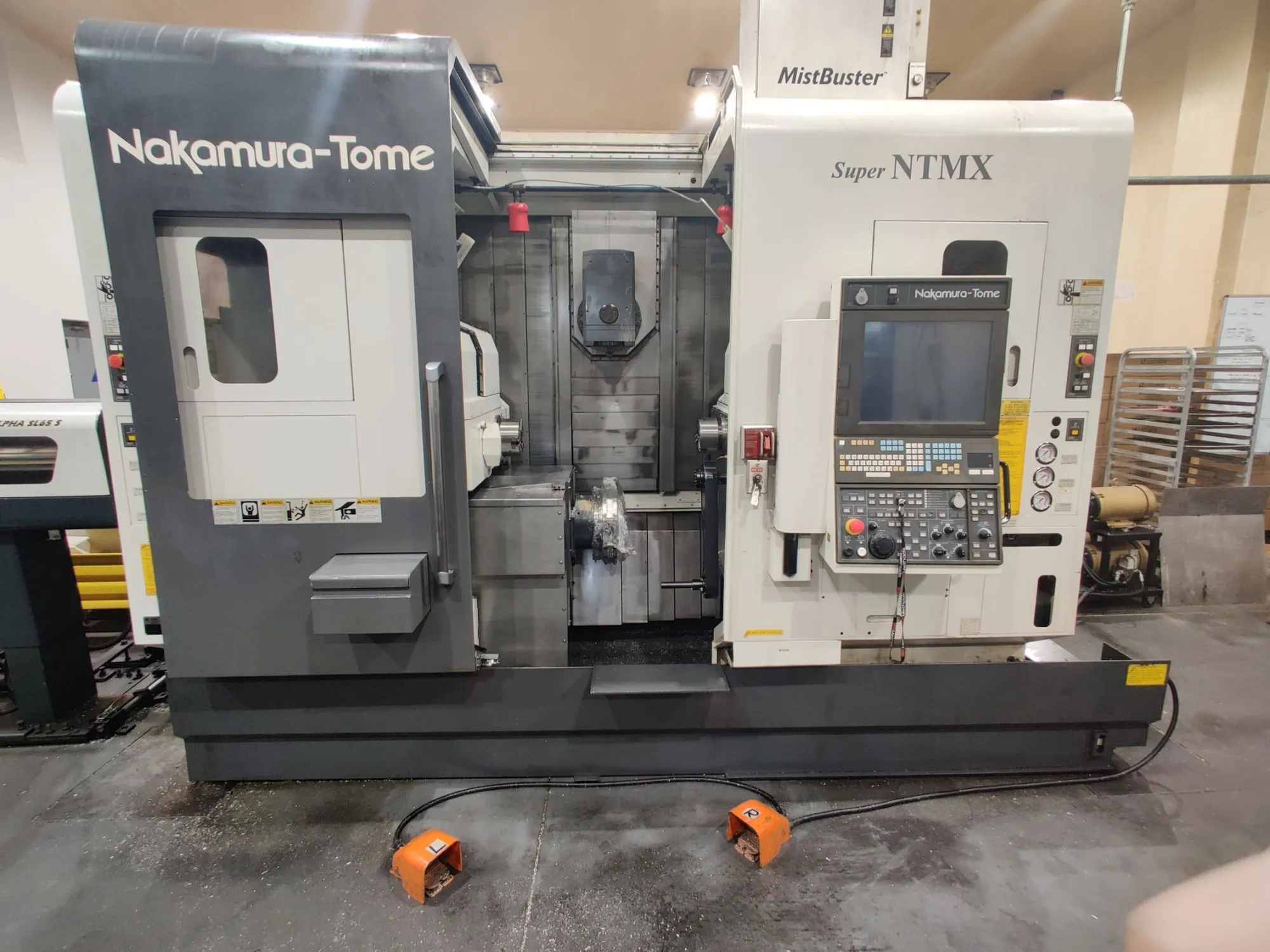

Fanuc, 9-Axes, B/C/Y-Axis Live Milling, Sub Spindle, Twin Turret, 1,000 PSI Thru-Spindle Coolant, LNS Barfeed. This high precision machining 2013 Nakamura Tome Super NTMX multi-axis cnc lathe is capable of 5-axis simultaneous machining and high accuracy part transfer. And also includes tool presetter, parts catcher and conveyor, mist buster, and lots of tooling as pictured.
Specifications
| SWING OVER CROSS SLIDE | 8.07" | 204.98 mm |
|---|---|---|
| MAX CUTTING DIAMETER | 7.87" | 199.9 mm |
| MAX CUTTING LENGTH | 30" | 762 mm |
| DISTANCE BETWEEN CENTERS | 38.58" | 979.93 mm |
| X-AXIS TRAVEL | 22.44" | 569.98 mm |
| Y-AXIS | Yes | Yes |
| Y-AXIS TRAVEL | 7.87" (±3.93") | 7.87" (±3.93") |
| Z-AXIS TRAVEL | 51.1" | 1,297.9 mm |
| CHUCK SIZE | 7" | 177.8 mm |
| BAR CAPACITY | 2" | 50.8 mm |
| SPINDLE NOSE | A2-5 | A2-5 |
| SPINDLE MOTOR | 15 hp | 11.2 kW |
| SPINDLE SPEED | 5,000 RPM | 5,000 RPM |
| SUB SPINDLE | Yes | Yes |
| SUB SPINDLE - CHUCK SIZE | 7" | 177.8 mm |
| SUB SPINDLE - BAR CAPACITY | 2" | 50.8 mm |
| SUB SPINDLE - SPINDLE NOSE | A2-5 | A2-5 |
| SUB SPINDLE - SPINDLE MOTOR | 15 hp | 11.2 kW |
| SUB SPINDLE - SPINDLE SPEED | 5,000 RPM | 5,000 RPM |
| B-AXIS MILLING SPEED | 12,000 RPM | 12,000 RPM |
| B-AXIS ROTATION | 190° (±95°) | 190° (±95°) |
| TURRET CAPACITY | 24 | 24 |
| LIVE MILLING | Yes | Yes |
| LIVE MILLING SPEED | 12,000 RPM | 12,000 RPM |
| TURRET 2 CAPACITY | 24 | 24 |
| TURRET 2 - X-AXIS TRAVEL | 5.13" | 130.3 mm |
| TURRET 2 - Z-AXIS TRAVEL | 25.9" | 657.86 mm |
Equipped With

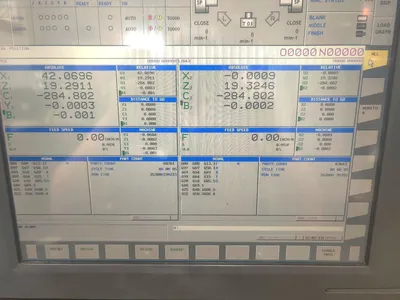

FANUC 31i-A5 2PATH CNC CONTROL
LNS ALPHA SL65-S BAR FEEDER (2014)
9-CONTROLLED AXES
5-AXES SIMULTANEOUS MACHINING (UPPER X1, Z1, C1[C2], Y, B1)
4-AXES (LOWER X2, Z2, C2[C1], B2)
SIMULTANEOUS TURNING UPPER & LOWER TURRETS
48 ATC (24 ATC MAGAZINE UPPER/24 ATC MAGAZINE LOWER)
THRU-SPINDLE COOLANT
HIGH PRESSURE COOLANT (1,000 PSI)
RENISHAW NC4 LASER TOOL SETTER (SETTING UPPER TOOLS)
SRP3 TOOL PRESETTER (SETTING LOWER TOOLS)
PART CONVEYOR
PARTS CATCHER
SPINDLE CHILLER
MIST BUSTER MIST COLLECTOR
FIRE SUPPRESSION SYSTEM
INCLUDED TOOLING:
LOWER TURRET (14 HOLDERS):
(2) DRIVEN 90 DEGREE ER16 HOLDERS
(5) BORING BAR HOLDERS 1” DIA
(2) BORING BAR HOLDERS 1.25 DIA
(5) STICK TOOLING BLOCK
UPPER TURRET (63 HOLDERS):
(15) C4 EXTENSIONS
(6) ER16 HOLDERS (ULTRA-HIGH-PRECISION)
(15) ER20 HOLDERS
(10) ER32 HOLDERS (LYNDEX NIKKEN)
(4) INTERNAL BORING TOOL HOLDERS (PH HORN)
(1) PRECISION BORING HEAD
(2) CUTOFF BLADE HOLDER
(2) OD TURNING HOLDERS
(1) SIDE-LOC HOLDER
(1) BORING BAR HOLDER
(6) SHRINK FIT HOLDERS
** PRICE NEW AS EQUIPPED: $650,000+
** MACHINE CUTTING PRIMARILY ALUMINUM
** IN PLANT, UNDER POWER, READY FOR IMMEDIATE INSPECTION & PURCHASE
