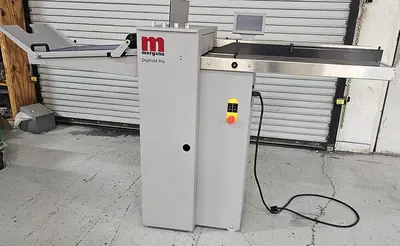

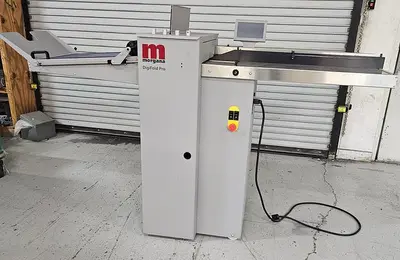

Morgana Digifold Pro Folding/Creasing
Serial #L148A00186
Maximum sheet size: 27.5" x 15.15"
Minimum sheet size: 8.26" x 5.51"
Maximum paper thickness: (approx 400 gsm) including laminated material
Minimum paper thickness: 0.0043"
Maximum number of folds per sheet: 2
Maximum number programmed applications: Unlimited alpha numeric
Minimum repeat crease distance: 1.57"
Minimum repeat fold distance: 2.75"
Minimum crease distance from lead edge: 1.96"
Minimum fold distance from lead edge: 1.96""
Minimum crease distance from tail edge: 1.96"
Minimum fold distance from tail edge: 1.96" (depending on paper weight)
Minimum fold length: 2.75"
Speed per hour (a4 in half): 6000 sph
Dimensions: 79.5" L x 26.7" W x 49.8" H Weight:419lbs.
Electrical: 240v 50/60hz
Unique id: 20240608DNCL148A00186
