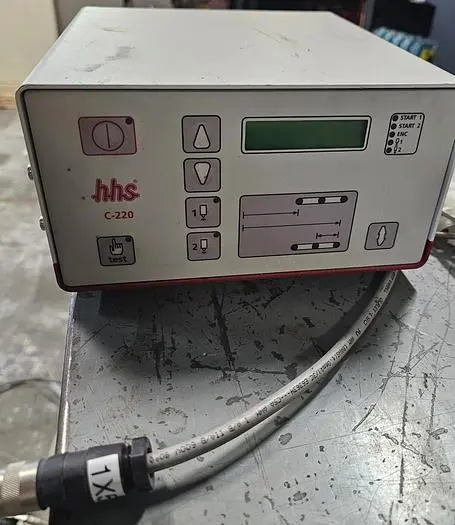

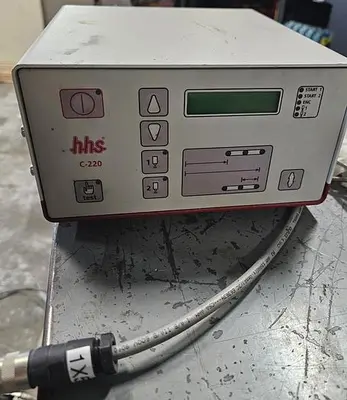

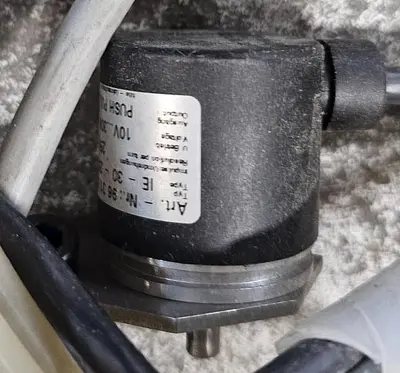

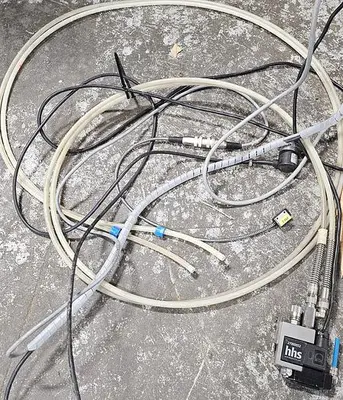

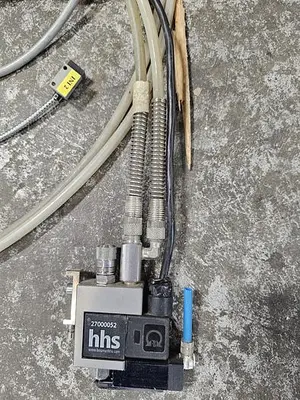

Baumer HHS Controller C-220 with Cold Glue Head & Encoder
Serial #900935
Typical Applications:
Spine glued brochures
Spot closure of direct mail or signatures
Edge gluing for sleeves etc.
Carton sealing with hot-melt
Power supply: Supply voltage: 1N~90...264V ± 10% 47...63Hz, automatic voltage detection
Connected Output: 200VA

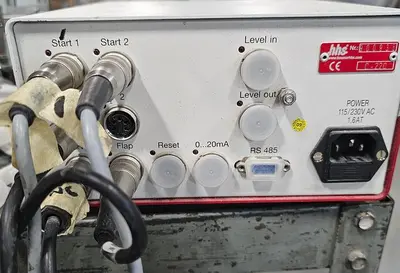

Input: 2* start input, 1 encoder, 1 level sensor, 1 reset
Output: 2 gun output Max. power loss per drive: 25W Max. control current: 2.5A
Proportional Output: 1 pressure control Connected output: 0....20 mA
Additional output: 1 level sensor, 1 shutter Connected Output Control Voltage: +24V Max. control current: 0.5A
Unique id: 20241607DNC900935
