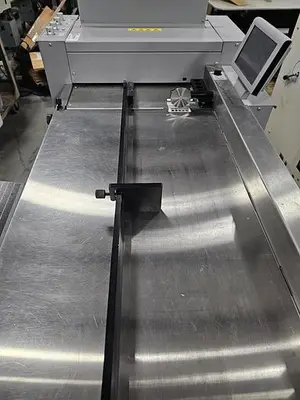

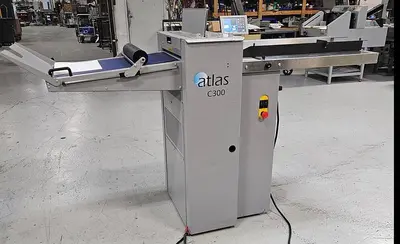

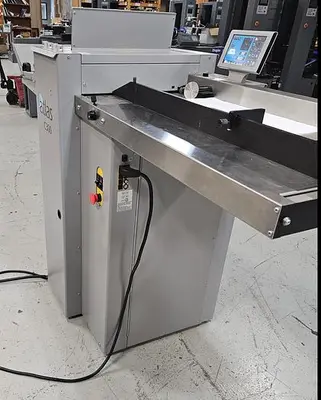

Formax Atlas C300 Automatic Creaser/Folder
Serial #601486
Speed: Up to 6,000 sheets per hour (8.5” x 11.5”)
Maximum Sheet Size: 27.5” x 15.1”
Minimum Sheet Size: 8.2” x 5.5”
Paper Thickness: Max: 0.015” (approx. 400gsm) Min: 0.004” (approx. 75gsm)
Folds per Sheet: Up to 2
Minimum Repeat Crease Distance: 1.57” (depending on paper weight)
Minimum Repeat Fold Distance: 2.75” (depending on paper weight)
Minimum Crease Distance from Leading Edge: 1.96"
Minimum Fold Distance from Leading Edge: 1.96"
Minimum Crease Distance from Trailing Edge: 1.96"
Minimum Fold Distance from Trailing Edge: 1.96"
Minimum Fold Length: 2.75"
Programmable Jobs: Unlimited
Machine Dimensions: 79.5” L x 26.7” W x 49.8” H Weight: 419 lbs.
Electrical: 220V, 60hz, 15A, NEMA 6-15P
Unique id: 20240603DNC601486
