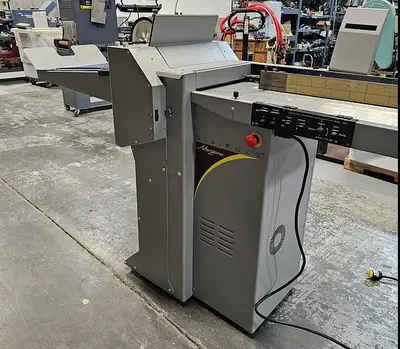

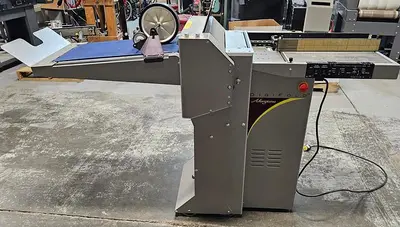

USED MORGANA DIGIFOLD

Morgana Digi-Fold
Serial #120587JJACC

Feeding System: . Bottom suction feed
Max. Sheet Size: 27.5” x 15”
Min. Sheet Size: 8.3” x 5.5
Max. Paper Thickness: 0.01
Min. Paper Thickness: 0.004
Max. No. Creases per Sheet: 9
Max. No. Folds per Sheet: 2
Max. No. Stored Programs: 9
Min. Repeat Crease Distance: 1.6”
Min. Repeat Fold Distance: 2.75”, Depending on paper weight
Min. Crease Distance from Leading Edge: 1.96”
Min. Crease Distance from Tail Edge: 1.96”
Min. Fold Distance from Tail Edge: 1.96
Min. Fold Length: 2.75”
Speed per Hour (A4 Material): 5000 sheets

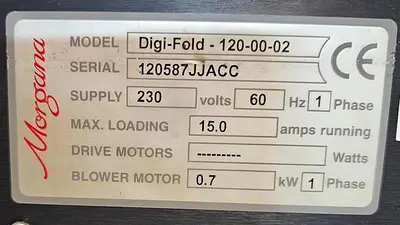

Electrical: Supply 230 Volts 60 Hz 1 Phase Max. Load: 15.0 Amps Blower Motor: 0.7 kW 1 Phase
Unique id: 2023012DNC120587JJACC
