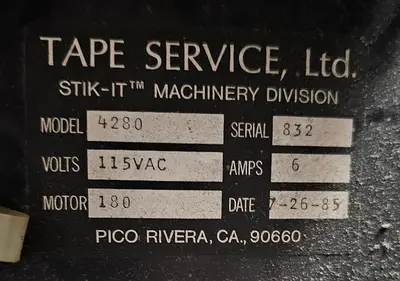

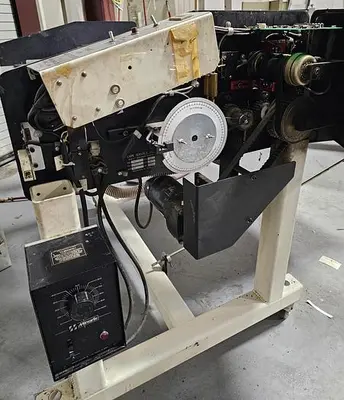

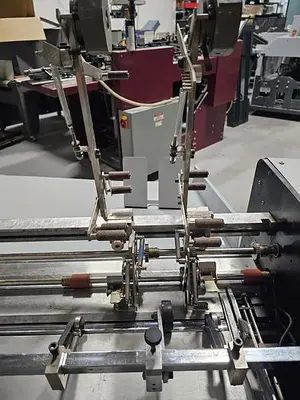

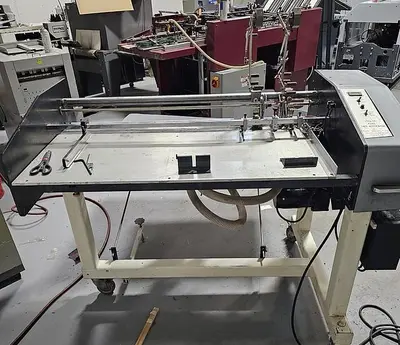

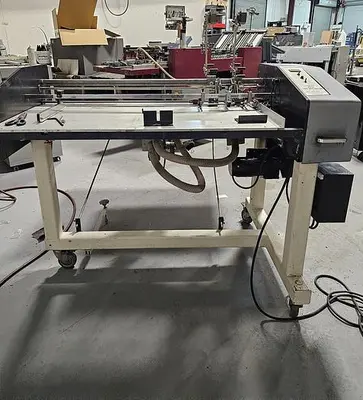

USED 1985 TAPE SERVICE, LTD. 4280

Stik It 4280 Tape Applicator
Serial #832
We have extra Tape Heads

Tape Application Ranges: 2-3/4' distance between tapes center to center 1-1/2"
Placement Accuracy: +/- 1/16" in strip or spot mode
Tape Applying Heads: 8 - maximum
Tape Types: Pressure sensitive and double coated
Tape Widths (Standard): 1/2", 3/4", 1"
Sheet Stock Range: 2" - 44"
Length Strip Mode: 4" minimum, no limit on maximum
Length Spot Mode: 4" minimum - 66" maximum
Thickness: 2 - point clear plastic to 50-point board
Speed: Bodine DC variable speed drive: 70-100 fpm (21.4-30.5 mpm)
Electrical: Single phase, 110-115 volt, 50/60 Hz., 6 amps
Floor Space Required: 72" L x 60" W Table Height: 36"
Unique id: 20232709DNC832
