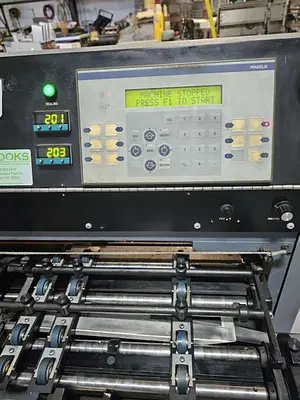

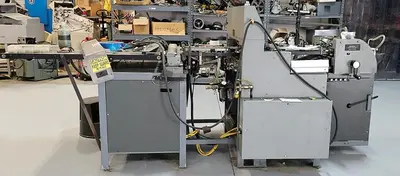

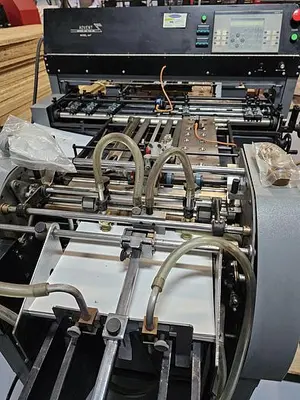

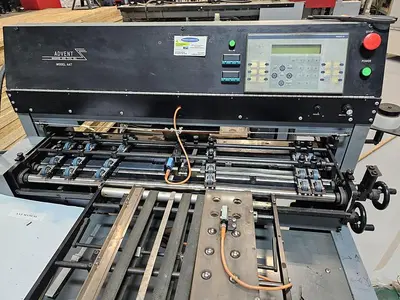

Advent AAT Auto Tabber
Serial #1196
| Weight | 1200 lbs. approximately | 1200 lbs. approximately |
Max. Sheet Size: 14" x 22"
Minimum Sheet Size: 5" x 7"
Sheet Weight Range: 28 lb. to pressboard weight
Tab Extensions: 3/8" and 1/2" width standard die set
Tab Length: with laminating 7/16" to 5", without 7/16" to 6"
Lamination Length: 1" to 5 1/2"
Cycling Rate: 8000 cph at 8 1/2" x 11" format
Electrical: 115 VAC 30Amp
Air Requirements: 12 cfm at 80 psig
Machine Dimensions: 90" x 48"
Compressor: 7 1/2 hp two stage 60 gallon reserve tank
Speed: up to 6,000 sheets per hour with laminated tabs; 8,000 sheets per hour with die cut only tabs in 9 x 11 format
Unique id: 20231407DNC1196
