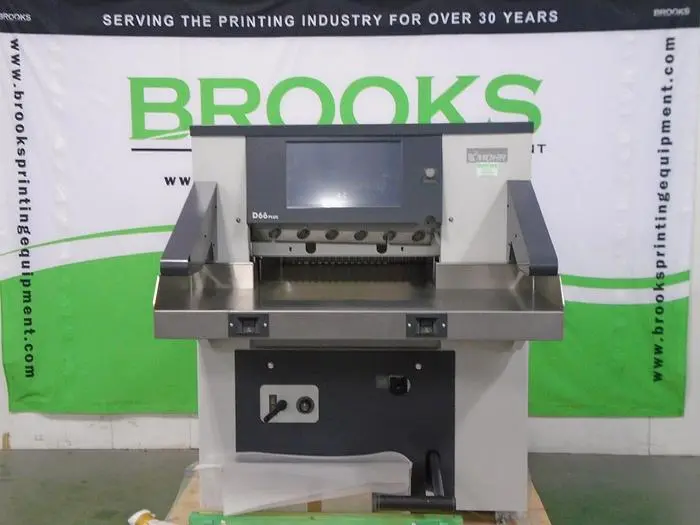

Mohr D66 Plus, Touch Screen
Operation via 18.5" touch-screen display. There are 1998 memory positions available for repeat cut sequences.
| Weight | 1,367 lbs. | 1,367 lbs. |
Cutting Width: 26.4"
Feeding Width: 26.4"
Cutting Height Max.: 3.14"
Front Table Length: 26.4"
Table Height: 35.43"
Clamp Pressure Max.: 3300 lbs.
Backgauge Speed (0-...): 2.7"
Number of cuts: 20
Smallest cut w/o false clamp plate: 0.60"
Smallest cut with false clamp plate: 1.96"
Installation Information: Width:49.21" Depth: 71.85" Height: 59.05"
Electrical: 208-230V 3 Phase 25Amps
Heat Output: BTU/h: 7.784
Noise emissions (according to EN 13023): 76.5
