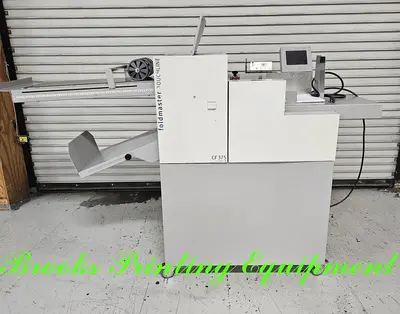

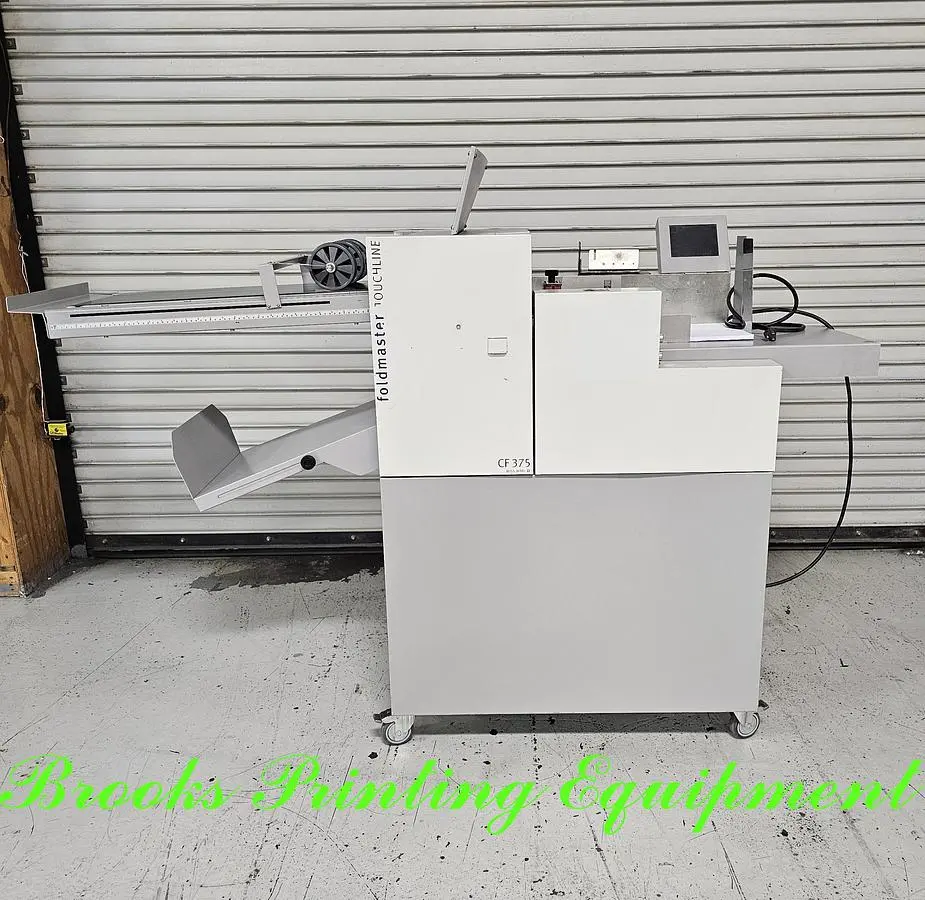

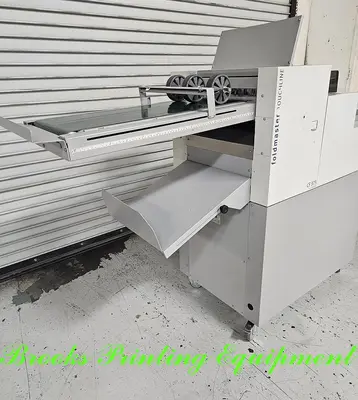

Multigraf Touchline CF375

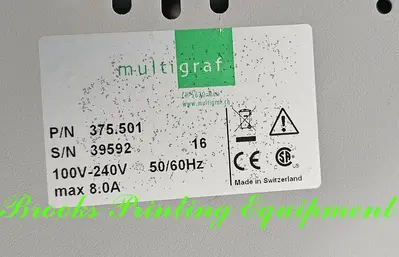

Serial #39592
Feeder system: Suction Feeder
Feeder Capacity: 7.08"
Paper size minimum: 4.13" x 5.82"
Paper size maximum: 14.76" x 25.98"
Paper Weight: 80-400 gsm or max. 0.0157"(paper stocks depending on material quality)

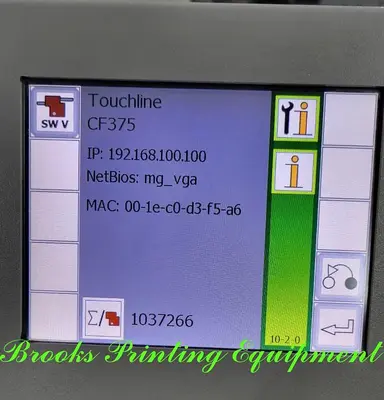

Control panel: Touchscreen
Double sheet detection: Ultrasonic
Creasing system: Multigraf Swingbar
Creasing styles: 1 creasing bar = 2 styles
Crease depths: 3 automatic setups
Number of creases: Up to 20 per sheet
Minimum crease distance: 1.18"
Fold system: Multigraf Pro-Knife
Number of folds: up to 2 per sheet
Fold length minimum: 1.18"
Fold length maximum: 19.68"
Delivery belt length: 32.28"
Reception tray height: 4.72"
Speed: Up to 6,000 sheets per hour, depending on application
Dimensions: 73" L x 24" x 52" H Weight: 432 lbs.
Electrical: 100-240 VAC, 50/60 Hz
Unique id: 20252411DNC39592
