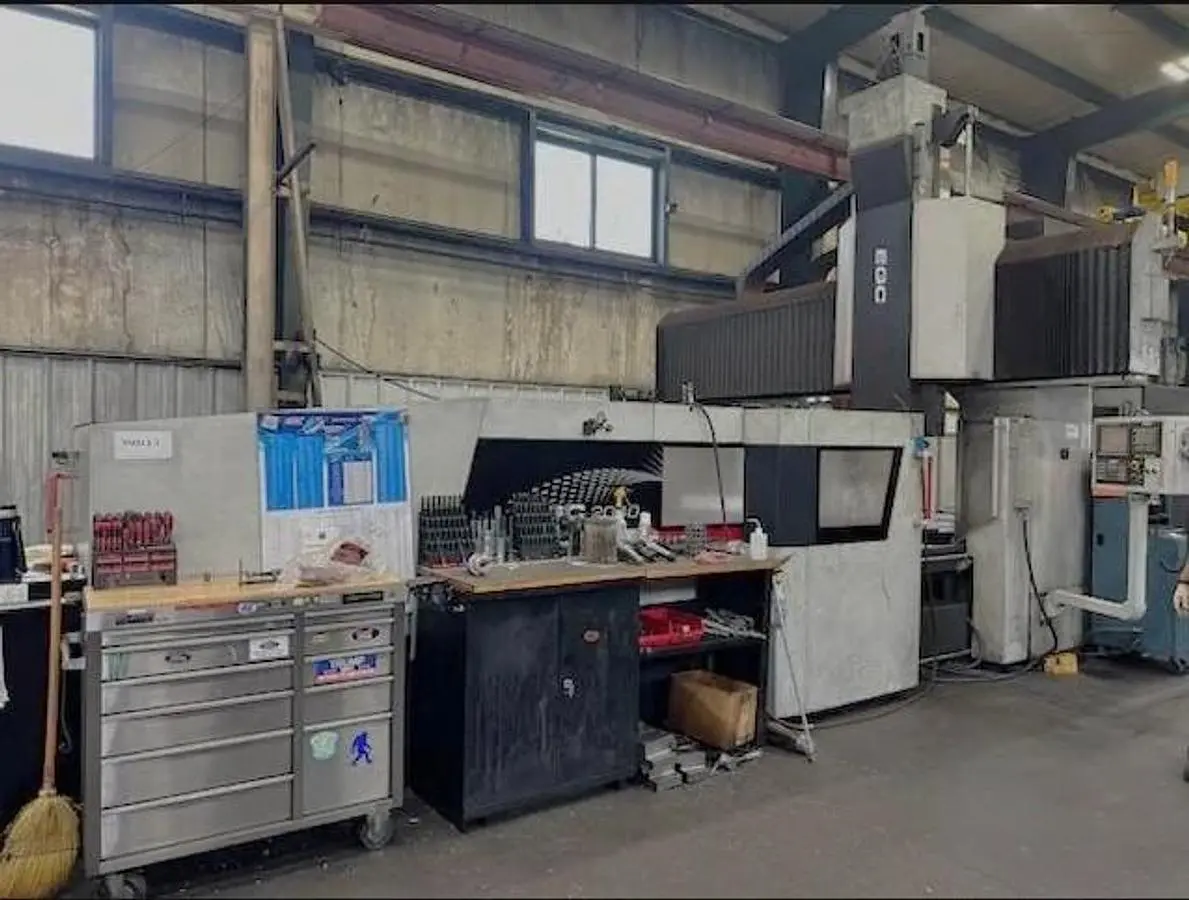

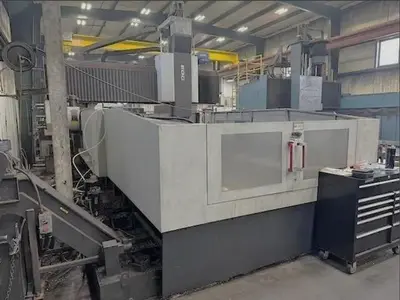

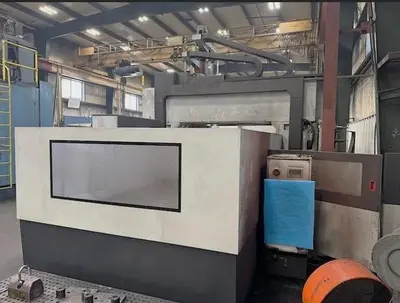

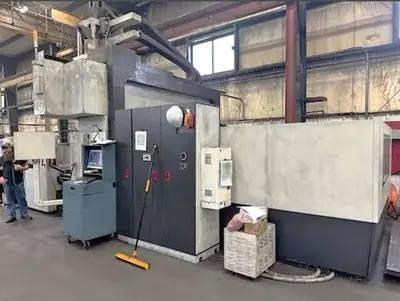

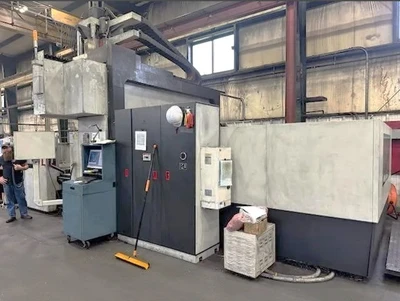

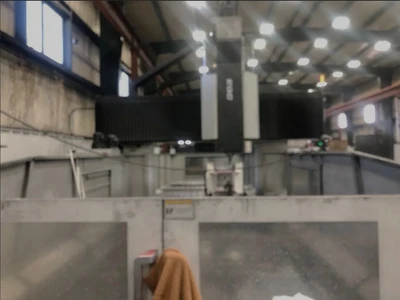

USED 2014 SMTCL EGC 2040 BRIDGE STYLE MILL

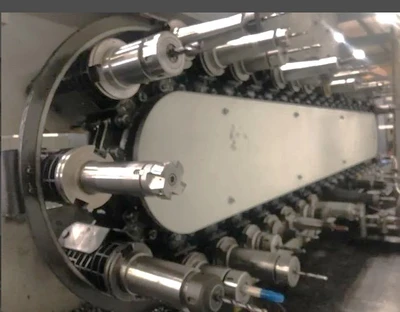

40 Station Side Mounted Tool Changer
Chip Conveyor
Chip Augers that feed to Conveyor
Complete Coolant System with Tank & Pump
Rigid Tapping
Flood Coolant
RS 232 Port Interface
All Available Manuals

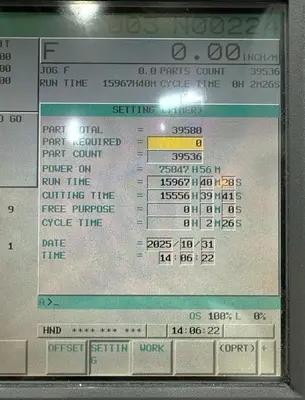

**Cutting Time of 15,556 Hours**

**One owner machine used to cut steel, iron, aluminum for both automotive and aeronautics industries**

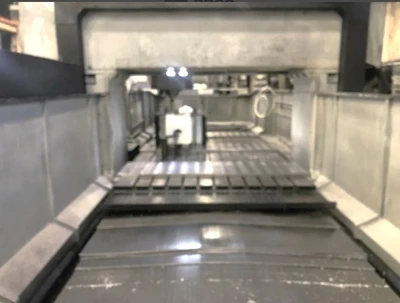

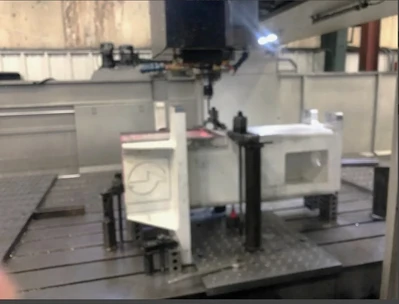

The 2014 SMTCL EGC 2040 Bridge Style Mill is a robust CNC Vertical Machining Center ideal for heavy-duty industrial applications. It features a generous table size of 157 inches by 78 inches, accommodating a maximum load of 30,800 lbs, making it suitable for large workpieces. With X, Y, and Z axis travels of 157 inches, 78 inches, and 39.03 inches respectively, it offers extensive flexibility for various machining tasks.

This machine is equipped with a #50 taper spindle powered by a 40 HP motor, capable of reaching speeds up to 6,000 RPM across two ranges. The machine includes a 40-station side-mounted automatic tool changer, enhancing its productivity by minimizing downtime between tool changes. The Fanuc 0i-MD CNC control provides reliable and precise control over machining operations.

The overall construction is solid, with a machine weight of 101,000 lbs, ensuring stability and precision during machining. The spindle nose can be positioned between 9.8 inches and 49.21 inches from the table top, offering versatility for different setup configurations. With a distance of 110 inches between its columns, the EGC 2040 is designed to accommodate large components comfortably while maintaining accuracy and efficiency.

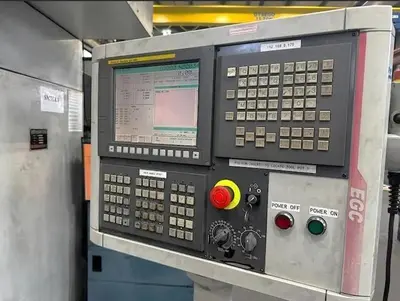

Machine Control: Fanuc 0i-MD CNC Control

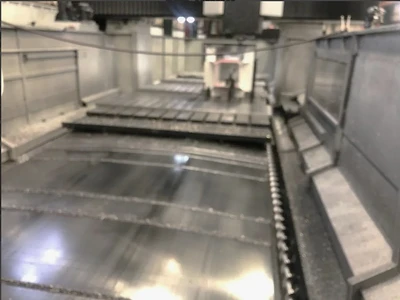

Table size: 157" x 78"
Maximum Load on Table: 30,800 lbs.
X axis travel: 157"
Y axis travel: 78"
Z axis travel: 39.03"

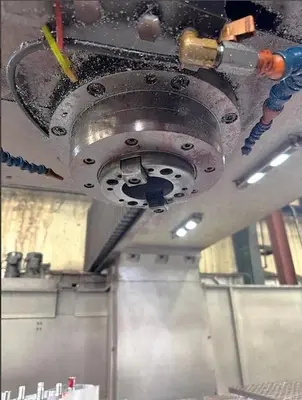

Spindle taper: #50 Taper
Spindle motor: 40 HP
Spindle speed: 6,000 RPM - 2 Ranges
Spindle Nose to Table Top: 9.8" - 49.21"
Distance Between Columns: 110"
Number of Tool Positions: 40 Station Side Mounted ATC
Machine weight: 101,000 lbs
Machine Dimensions: 452" x 244" x 267"
