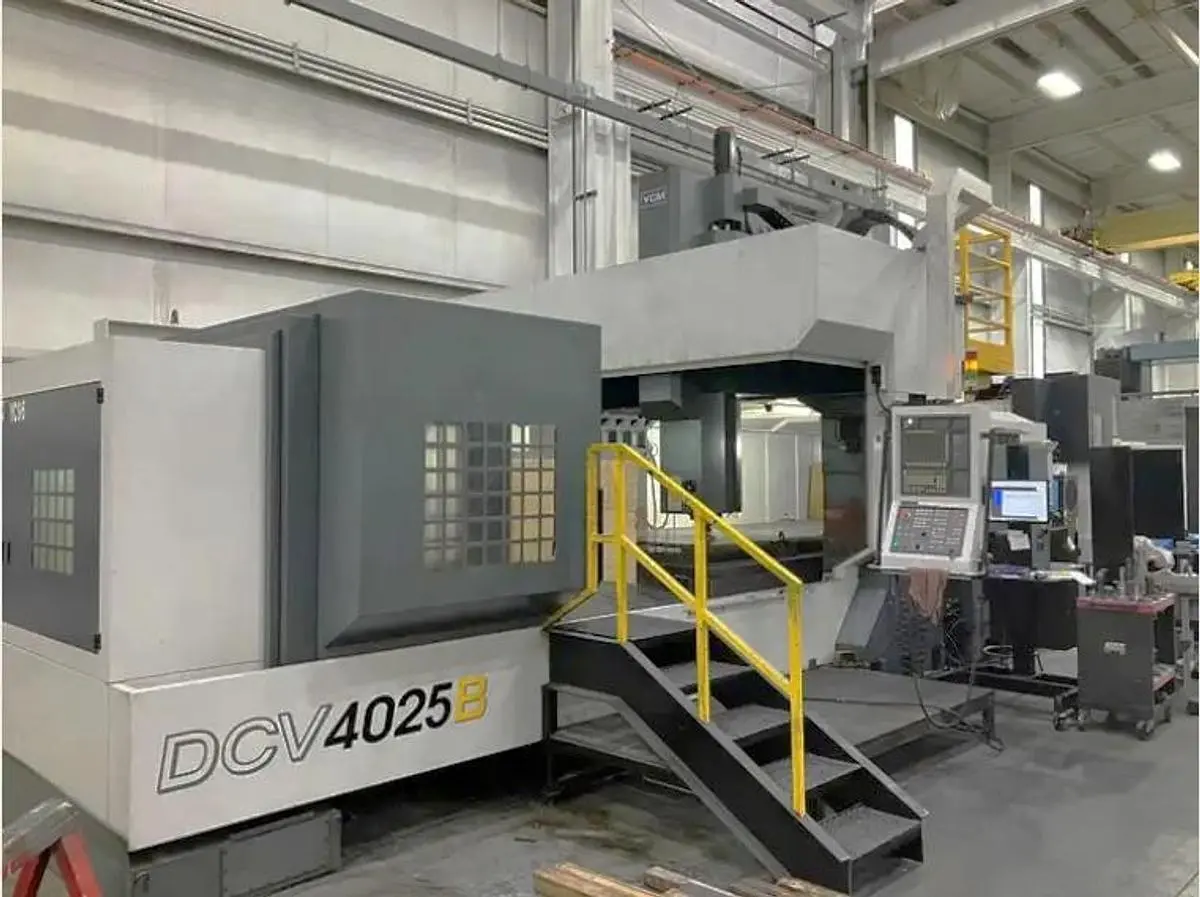

USED 2012 YCM DCV 4025B BRIDGE MILL

Coolant Through the Spindle

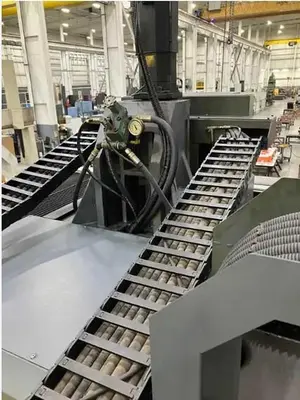

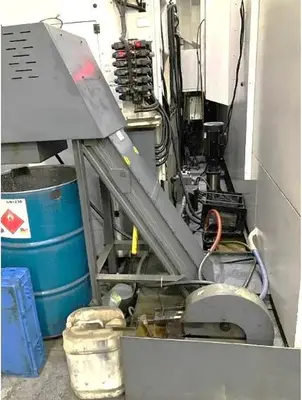

Chip Conveyor
Chip Augers
Chiller Unit
High Speed Machining
Data Server
Ethernet Interface
RS 232 Port Interface
Spindle Thermal Compensation
3 Roller Type Guide Way on Y Axis
Hardened and Ground Box Ways on Z Axis
Tool Selection Random Method
Electrics 220/480V

The 2012 YCM DCV 4025B Bridge Mill is a robust and reliable used CNC vertical machining center, ideal for heavy-duty machining tasks. It features a Fanuc 31i Series Control system, ensuring precise and efficient operations. The machine has impressive travel capabilities, with its X-axis accommodating 160 inches, Y-axis 98 inches, and Z-axis 40 inches, making it suitable for large workpieces. The spacious table, measuring 158" x 94.5", can support up to 44,092 pounds, providing significant capacity for industrial applications.

Equipped with a CAT 50 spindle taper, the spindle operates at a maximum speed of 4,500 RPM, propelled by a 30 HP motor. This enables high-speed machining and maximizes productivity. It also includes a 120-station automatic tool changer, facilitating seamless tool transitions. Additionally, the machine's coolant through the spindle feature ensures efficient cooling, enhancing tool life and cutting performance.

With rapid traverse rates of 472 IPM on the X and Y axes and 591 IPM on the Z-axis, along with cutting feed rates of 394 IPM, the YCM DCV 4025B is designed to optimize production speed. The machine’s robust construction, with a machine weight of 101,412 pounds, ensures durability and stability during operation, making it a reliable choice for demanding manufacturing environments.

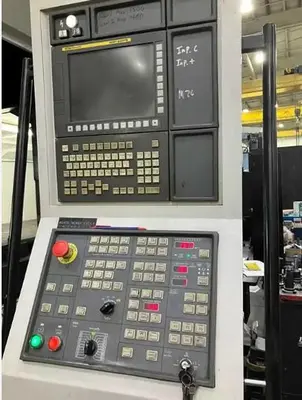

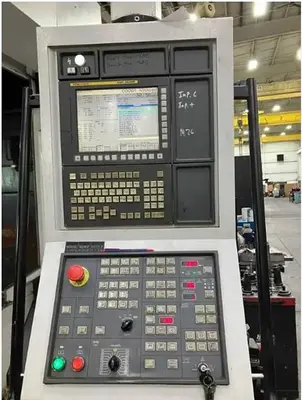

Machine Control: Fanuc 31i Series Control

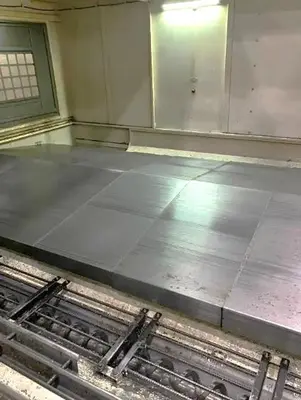

Table Size: 158" x 94.5"
Maximum Weight on Table: 44,092 lbs.
Distance Between Columns: 107.9"
X-axis travel: 160"
Y-Axis Travel: 98"
Z-Axis Travel: 40"

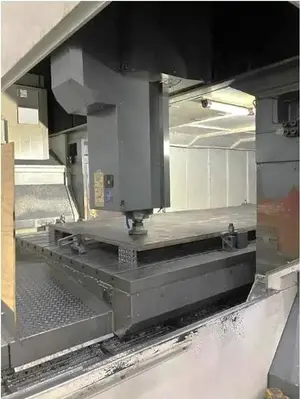

Spindle Taper: CAT 50
Spindle Speed: 4,500 RPM
Spindle Motor: 30 HP
Distance Spindle Nose to Table Top: 7.87" - 47.87"

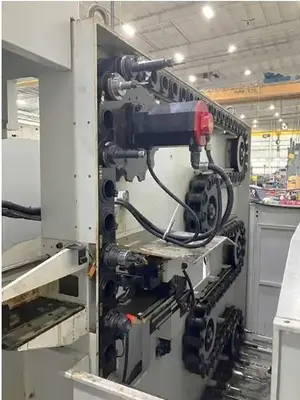

Tool Magazine Capacity: 120 Station Tool Changer
Maximum Tool Diameter / Length / Weight: 4.92" / 13.78" / 44.1 lbs.
Rapid Traverse Rates X / Y, Z: 472 IPM / 591 IPM
Cutting Feedrates: 394 IPM
Machine Dimensions LxWxH: not available
Machine Weight: 101,412 lbs.
