USED 2022 HAAS EC-1600ZT-5AX

4th Axis Drive & Wiring
5th Axis Drive & Wiring

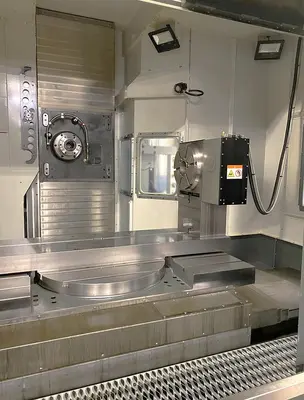

Full 4th Built-in 30" Rotary Platter
Haas Rotary Table for 5th Axis
Extended Z-Axis Travel
300 PSI Coolant thru the Spindle
Wireless Intuitive Probing System
Coordinate Rotation & Scaling
Spindle Orientation
User Definable Macros
Visual Part Programming System
High Speed Machining
50 Station Tool Changer
CAT 50 Taper Geared Head Spindle
Remote Jog Handle w/ Color LCD
Auger Style Chip Conveyor
Enclosure Exhaust System
15" Color LCD Monitor
USB Port Interface
RS 232 Port Interface
Rigid Tapping
Memory Lock Key Switch

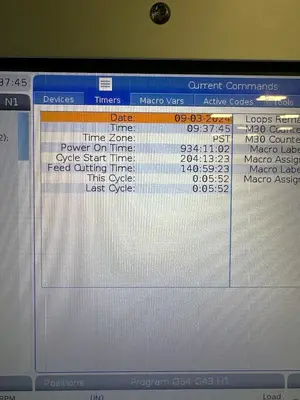

**Power On Hours 934**
**Cycle Start Hours 204**
**Feed Cutting Hours 140**

**Price New As Equipped at $448,370**

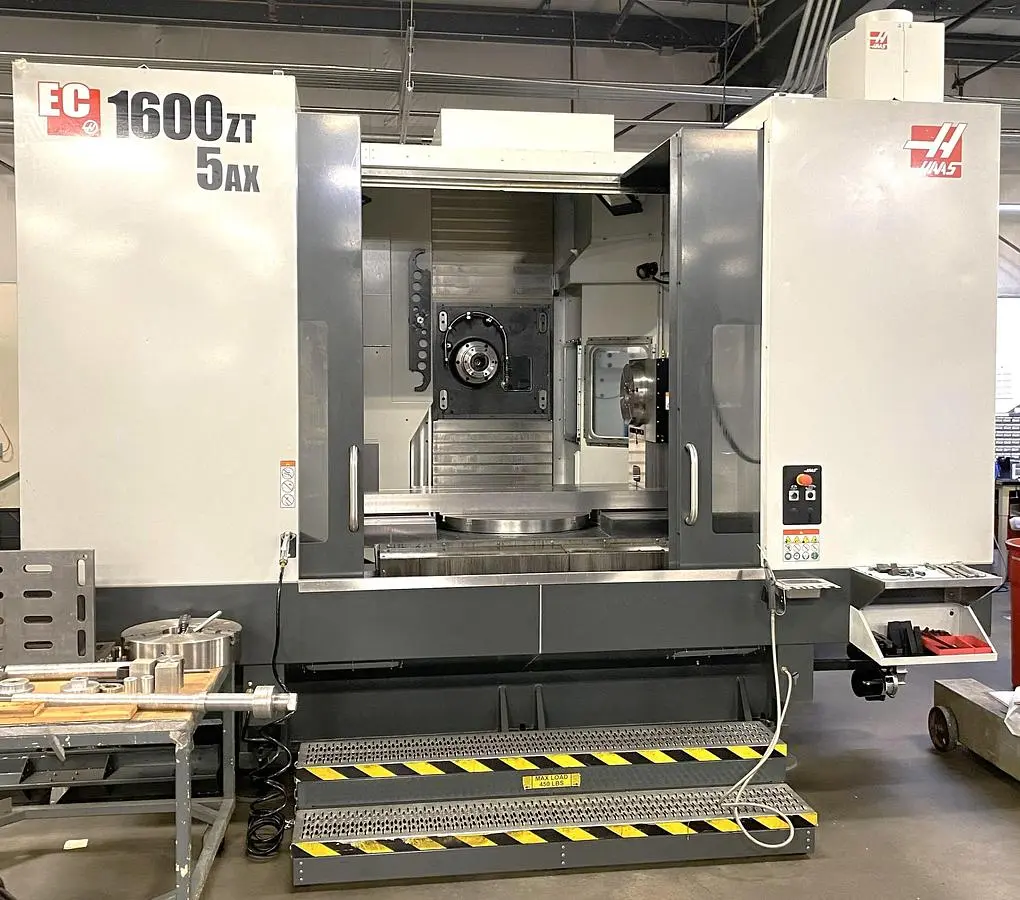

The 2022 Haas EC-1600ZT-5AX is a robust CNC Horizontal Machining Center, designed to handle demanding tasks with precision and efficiency. This used model features an extended Z travel and a full fourth-axis rotation with a generously sized 64" x 36" table, capable of supporting up to 10,000 lbs. Equipped with a powerful CAT 50 tapered spindle, this machine operates at speeds up to 7,500 RPM, driven by a 30 HP, two-speed geared head motor.

The EC-1600ZT-5AX offers ample workspace with an X-axis travel of 64", Y-axis of 50", and Z-axis of 40". It includes a 50-position automatic tool changer, supporting tools up to 10" in diameter, 20" in length, and weighing 30 lbs. Rapid traverse rates of 540 IPM enhance its productivity, making it suitable for high-speed machining environments. The machine is further equipped with through-spindle coolant and Renishaw probing for precise measurements and increased efficiency.

With dimensions of 190"x144"x135" and a weight of 30,000 lbs, it is a significant addition to any industrial setup. Despite its capabilities, the machine has only 140 feed cut hours, indicating minimal use and well-preserved condition. This CNC center is ideal for businesses looking to take on large-volume, complex machining tasks with reliability and precision.

Table Size: 64" x 36"
Maximum Table Load: 10,000 lbs
B-Axis Table Rotation: Full 4th Axis
X-axis travel: 64"
Y-Axis Travel: 50"
Z-Axis Travel: 40"
Spindle Taper: CAT 50
Spindle Speed: 7,500 RPM
Spindle Motor: 30 HP 2-Speed Geared Head
Tool Magazine Capacity: 50 Position Tool Changer
Rapid Traverse Rates: 540 IPM
Maximum Tool Diameter / Length / Weight: 10" / 20" / 30 lbs
Machine Dimensions LxWxH: 190"x144"x135"
Machine Weight: 30,000 lbs
