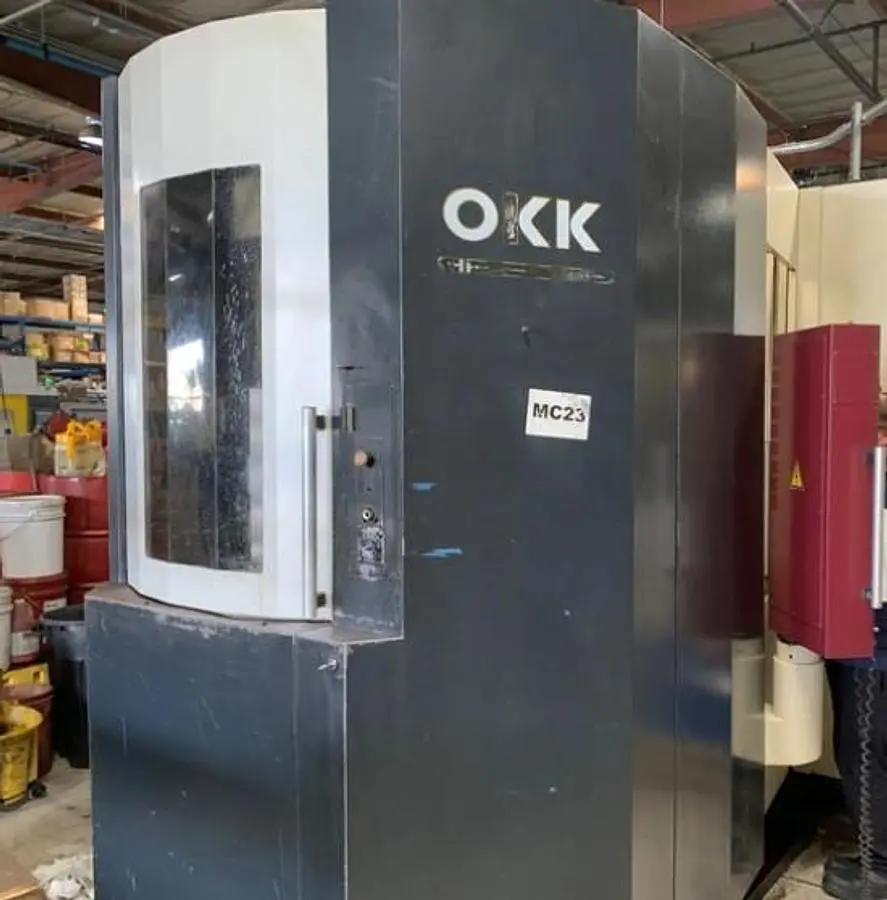

USED 2005 OKK HPS-500S

Coolant thru the Spindle
Spindle Chiller

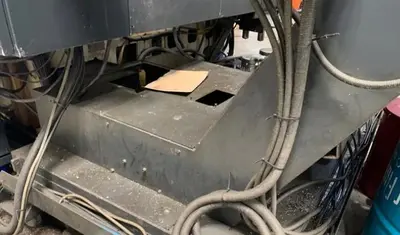

Chip Conveyor
All Available Manuals

The 2005 OKK HPS-500S is a reliable used CNC horizontal machining center equipped with a Fanuc 180i control. This machine features a dual pallet system with each pallet measuring 19.7 inches square, allowing for efficient production cycles and reducing downtime between tasks. Its pallets can index at .001-degree increments, providing precise positioning capabilities.

With a maximum table load of 881 lbs and travel capacities of 24.8 inches on the X-axis, 24.4 inches on the Y-axis, and 23 inches on the Z-axis, the HPS-500S supports substantial and complex machining projects. The machine operates with a CAT 40 spindle taper, reaching speeds of up to 12,000 RPM, powered by a robust 30 HP spindle motor. Additionally, it is equipped with a 60-tool automatic tool changer, enhancing its versatility and productivity in diverse applications.

The machine offers rapid traverse rates of 2,362 inches per minute, ensuring quick repositioning, and overall efficiency in operations. Despite its substantial capabilities, the machine maintains a compact footprint with dimensions of 162 inches in length, 99 inches in width, and 122 inches in height, and it weighs 18,500 lbs. This well-rounded machining center is suitable for businesses seeking to enhance their manufacturing capabilities with high precision and reliability.

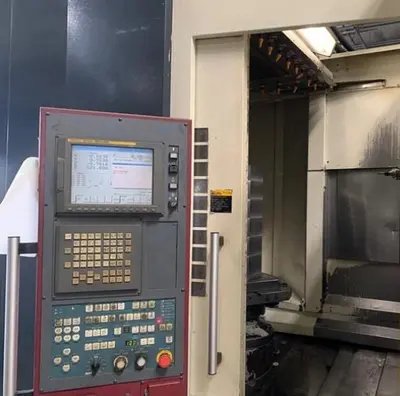

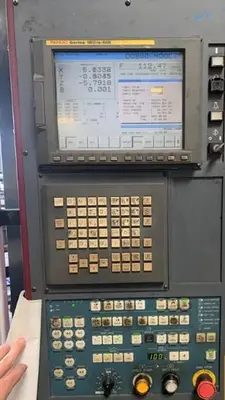

Machine Control: Fanuc 180i

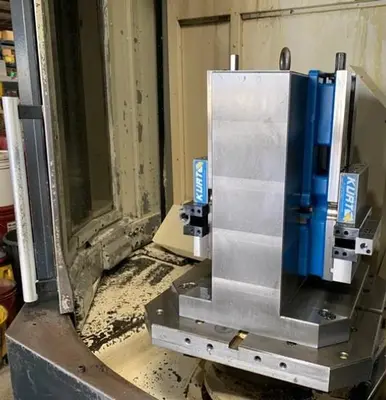

Pallet Size / Number of Pallets: 19.7"x19.7" / 2
Pallet Indexing: .001 Degree
Maximum Table Load: 881 lbs
X-Axis Travel: 24.8"
Y-Axis Travel: 24.4"
Z-Axis Travel: 23"

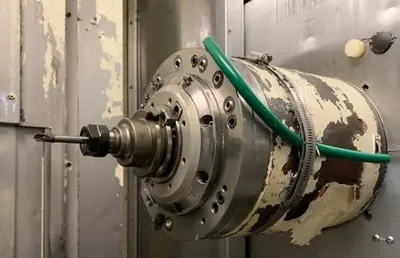

Spindle Taper: CAT 40
Spindle Speed: 12,000 RPM
Spindle Motor: 30 HP
Tool magazine capacity: 60 atc
Rapid Traverse Rates: 2,362 ipm
Machine Dimensions LxWxH: 162"x99"x122"
Machine Weight: 18,500 lbs
