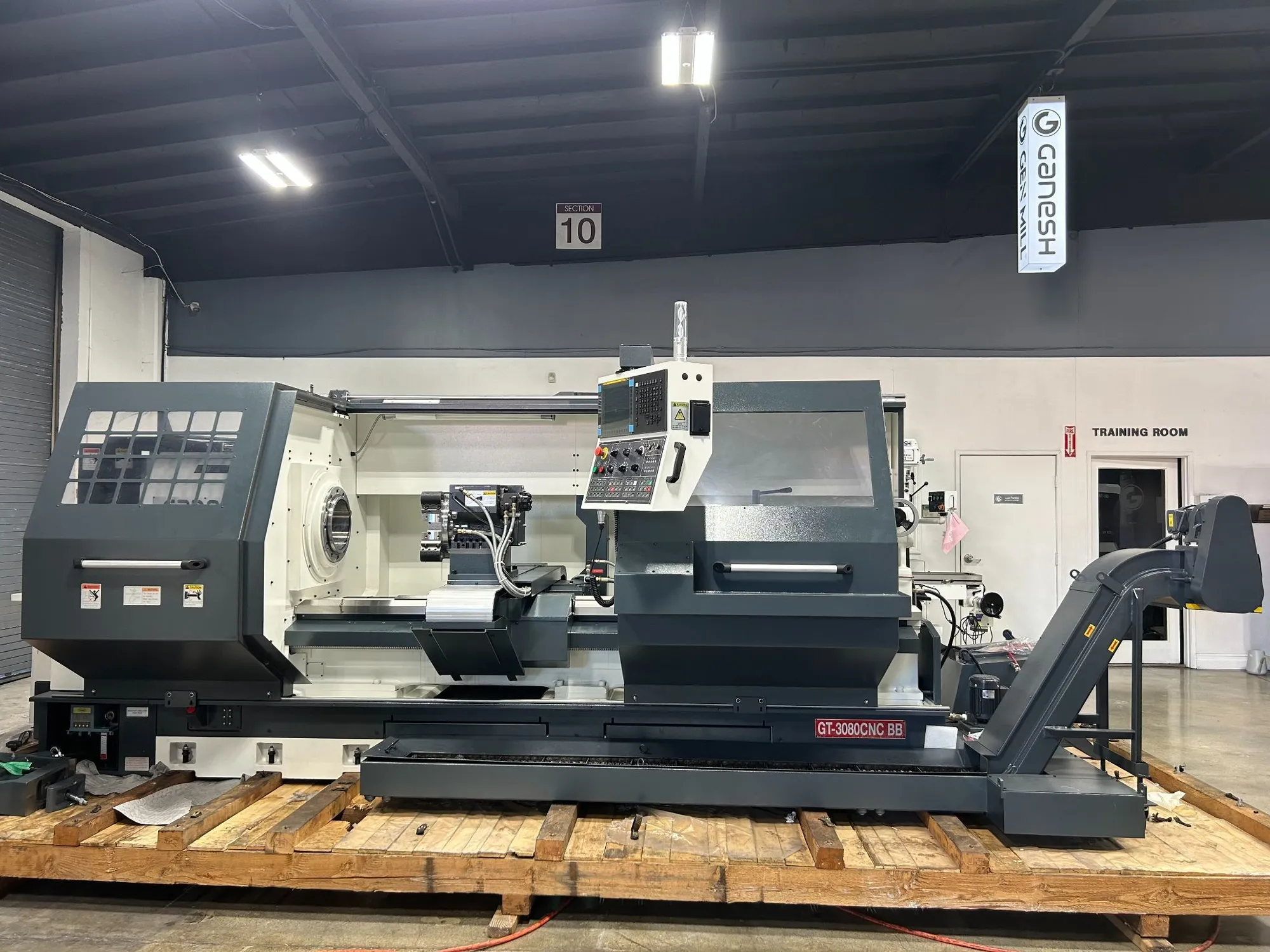

2025 GANESH GTW-3080 CNC Lathe brand new and in stock. Big Bore option included!! Machine can ship right away from southern California with 10" Big Bore, 30" swing, and 78" machining length. Features include an 8-position hydraulic turret, tailstock, chip conveyor, and coolant system. Note: Chuck not included.
| Swing | 30" | 762 mm |
| Machining Length | 78" | 1,981.2 mm |
| Bar Capacity | 10" | 254 mm |
| Live Tooling | No | No |
| Y-Axis Milling | No | No |
| Sub Spindle | No | No |
| # of Turrets | 1 | 1 |
| Turning Dia | 22" | 558.8 mm |
| Power | 30 hp | 22.4 kW |
| Max RPM | 0 RPM | 0 RPM |
| Tailstock | Yes | Yes |
| Control | CNC | CNC |
| Dimensions | 222x85x80 | 222x85x80 |
| Weight | 13,230 lb | 13,230 lb |
10" Spindle Bore Upgrade ($30,000 Value)
8 Position Hydraulic Turret
(4) ID Tool Holders
(8) OD Wedge Tool Holders 1" Shank
Chip Conveyor
Tailstock (MT #6)
Steady Rest
Rear Chuck Mount
Coolant System
*Note: Chuck not included with Big Bore Option.
