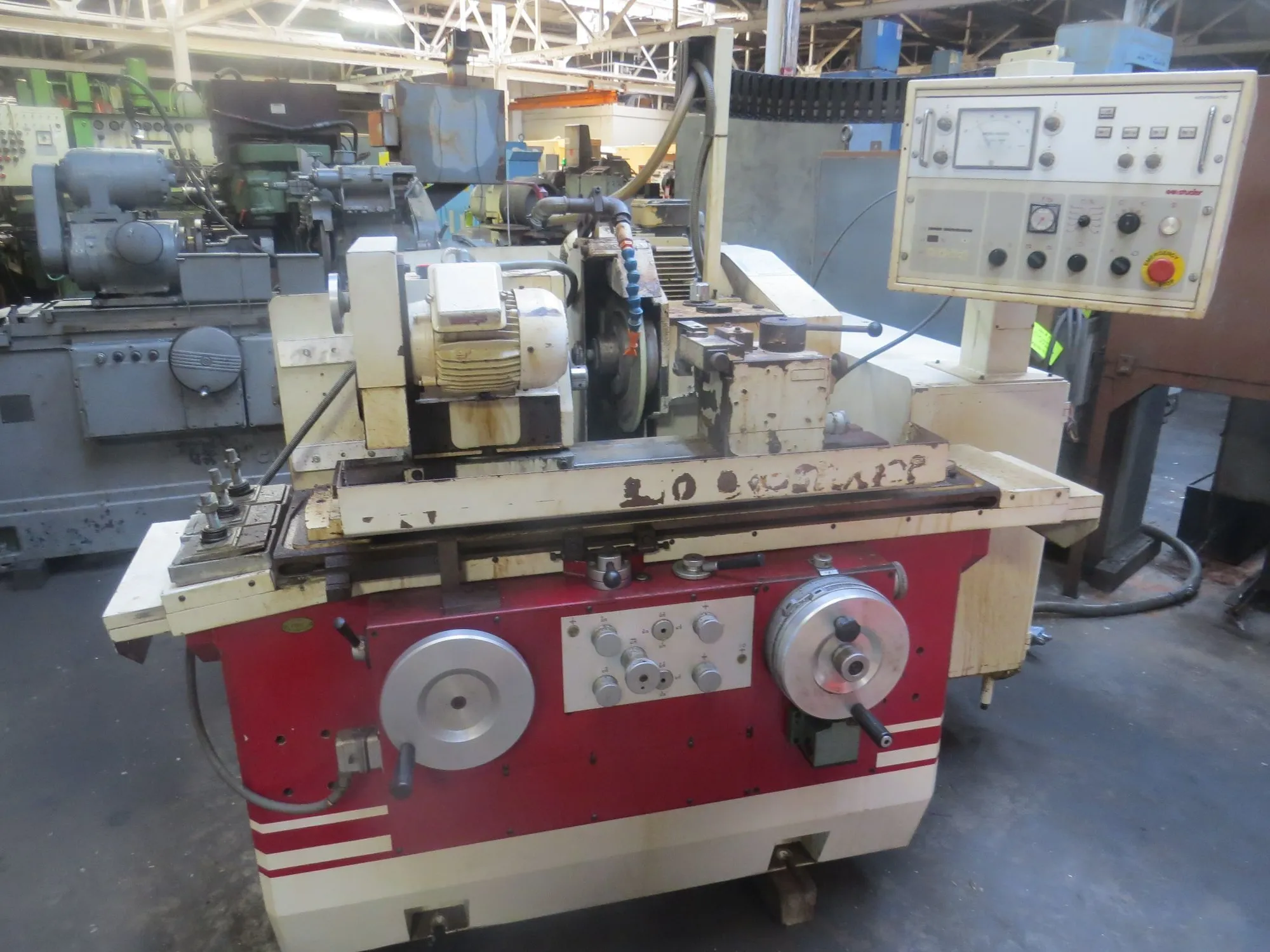

USED 1984 STUDER S30-1

1984 STUDER S30-1 cylindrical angle head CNC grinder, used condition. Features a 10" swing, 20" centers, and 7.4 hp wheel power. Includes swing down attachment, tailstock dresser, and more. Ideal for precision grinding needs.

STUDER S30-1 CNC UNIVERSAL GRINDER
S/N 3006.02 YEAR: 1984

STANDARD SPECIFICATIONS

Main Dimensions
Swing Diameter………………………………………………10”
Center Distance………………………………………………20”

Longitudinal Slide
Maximum Travel……………………….…………………….23”
Minimum Automatic Travel………………………………….1.5mm
Speed………………………………………………………….2 – 217 inches / min
Maximum Swivel Of Table……………………….………… 10 Degrees
Reversal Dwell………………………………………………..0-6s

Wheel Slide
Maximum travel………………………………………………12”
Rapid Approach…….…………………………………………2”
Plunge Depth In Dia…………………………………………..3.4mm
Infeed 1………………………………………………………..0.012-6mm / min
Infeed 2………………………………………………………..0.012-1.2mm / min
Incremental Infeed…………………………………………….0.001-0.05mm / min

Wheelhead
External Grinding Wheel Left Dia x Width x Bore………………..16” x 3” x 5”
Hinged Internal Grinding Attch. For Belt Spindles Incl. Drive……1.5 kw
Power requirement…………………………………………………5.5 kw
Peripheral speed Vs…………………………………………………35 m/s
Speeds………………………………………………………………1670/2110 RPM

Workhead
Swivel Range……………………………………………………..0-90 Degrees
Fitting taper……………………………………………………… Morse 5
Collets…………………………………………………………… W-25
Power requirement………………………………………………...0.55 kw
Speed nw Stepless…………………………………………………30-1000 min-1
Maximum work piece weight between centers…………………....287 lbs.
Live grinding load…………………………………………………100 Nm

Tail Stock
Fitting taper……………………………………………………… Morse 3
Travel of barrel………………………………………………….. 35mm
Fine Adjustment For Cylindricity Corrections…………………...40 um

EQUIPPED WITH
Swing down attachment.
Leveling pads.
Tailstock dresser.
Attached panel.
Push button station.

Specifications are deemed accurate, however, subject to verification or prior sale.
