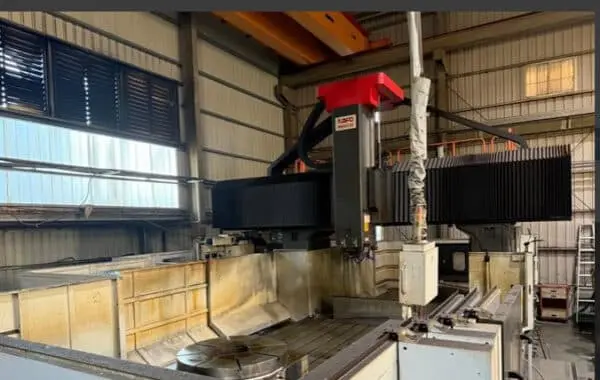

KAFO RV-4135 – 2019

KAFO RV4135 5-Face Double Column Machining Center
CAPACITY:

TABLE SIZE 157.48″ X 82.67″

TABLE CAPACITY 37,400 LBS.

DISTANCE BETWEEN COLUMNS 106.29″

X-AXIS TRAVEL (TABLE LONGITUDINAL) 161.41″

Y-AXIS TRAVEL (HEAD) 137.79″

Z-AXIS TRAVEL (SPINDLE) 43.30″

DISTANCE FROM SPINDLE NOSE TO TABLE 7.87″-51.18″

SPINDLE SPEEDS 10,000 RPM

SPINDLE TAPER BT-50

SPINDLE DRIVE MOTOR 60 HP/49 HP

APPROXIMATE DIMENSIONS 425″ X 307″ X 226″

MACHINE WEIGHT 104,500 LBS.

FANUC OI-MF CNC CONTROL WITH 10.4″ LCD

60-STATION AUTOMATIC TOOL CHANGER

AUTO HEAD STORAGE WITH 90 DEGREE HEAD

UNIVERSAL HEAD (3,500 RPM W/ 5 DEG. INDEXING)

4TH AXIS ROTARY TABLE (NCT-B-1000R)

X/Y/Z LINEAR SCALES

AIR THRU SPINDLE

CHIP CONVEYOR
