USED 2006 VISIONWIDE VF-4000

40 Station Tool Changer
Chip Conveyor
Spindle Chiller Unit
Rigid Tapping
Remote Jog Handle
Card Interface
RS 232 Port Interface
Coolant System with Tank & Pump

**New OEM Spindle Installed in 2024**
**New X & Z Axis Ballscrews and Thrust Bearings Installed in 2025**

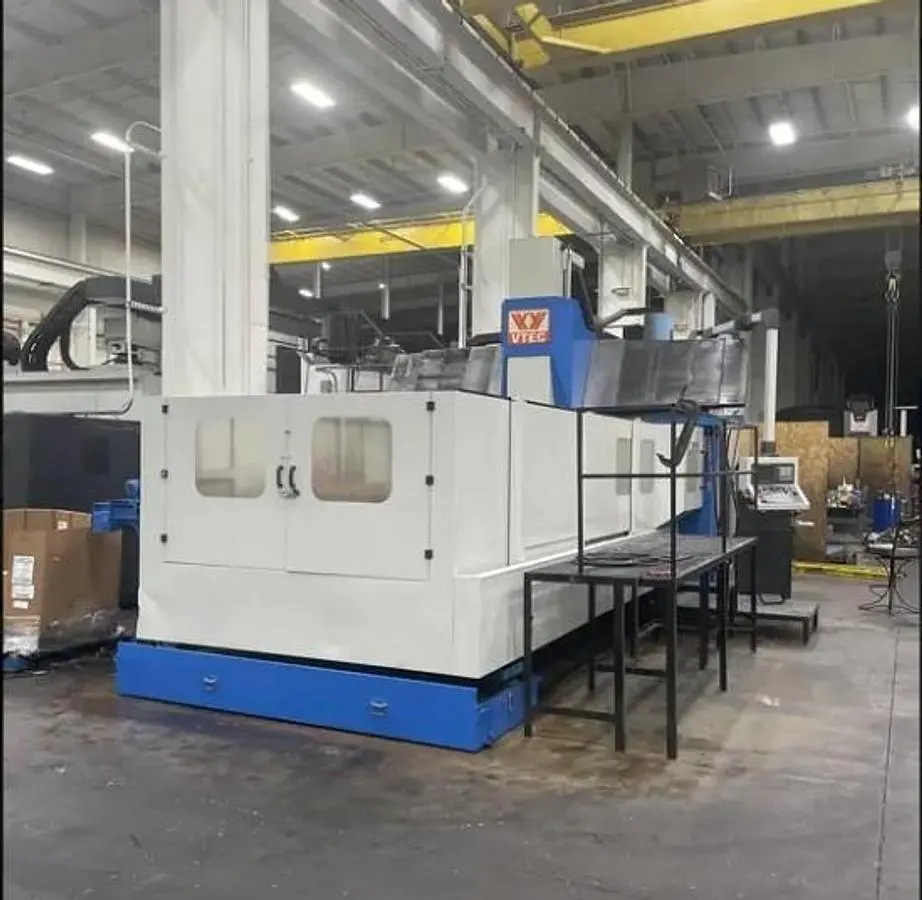

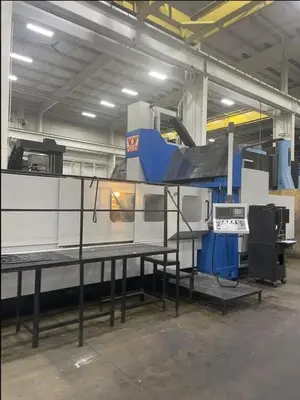

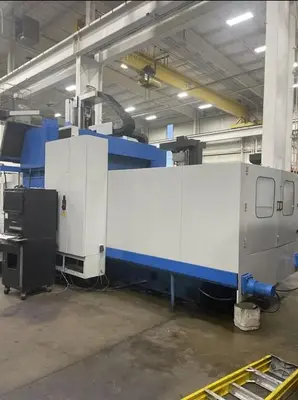

The 2006 Visionwide VTEC VF-4000 is a robust bridge style vertical machining center, ideal for heavy-duty industrial applications. It features an impressive table that measures 165 inches by 80.70 inches, capable of handling a load capacity of up to 28,660 pounds, making it suitable for large workpieces. With travel dimensions of 165 inches on the X-axis, 90 inches on the Y-axis, and 40 inches on the Z-axis, this machine offers considerable versatility for complex machining tasks.

Equipped with a Fanuc 18i-MB Control, the VF-4000 ensures precision and efficiency in operation. This model accommodates a CAT50 spindle taper, driven by a 30 HP motor capable of reaching spindle speeds up to 6,000 RPM with a two-speed geared mechanism, which provides flexibility for varied machining requirements. The machine’s tool handling capacity is enhanced by a 40-position automatic tool changer, streamlining workflow and reducing downtime.

Though classified as used, this machining center has received a new spindle in 2024, enhancing its operational reliability and extending its service life. With its impressive specs and recent upgrades, the Visionwide VTEC VF-4000 is a reliable choice for businesses seeking efficient, high-capacity machining solutions.

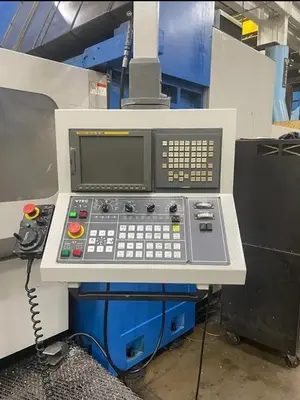

Machine Control: Fanuc 18i-MB Control
Table size: 165" x 80.70"
Table Load Capacity: 28,660 lbs.
X axis travel: 165"
Y axis travel: 90"
Z axis travel: 40"
Spindle taper: CAT #50
Spindle motor: 30 HP
Spindle speed: 6,000 RPM - 2 Speed Geared
Number of Tool Positions: 40 Station Tool Changer
