10 Station Tool Changer
Direct Belt Drive
RS 232 Port Interface
Coolant System with Tank & Pump
Accepts Both Single or Three Phase Power

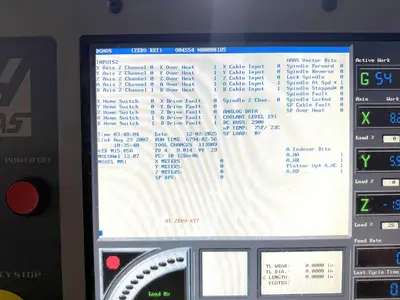

**Run Hours 6,794**

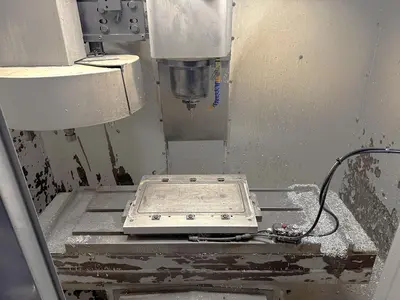

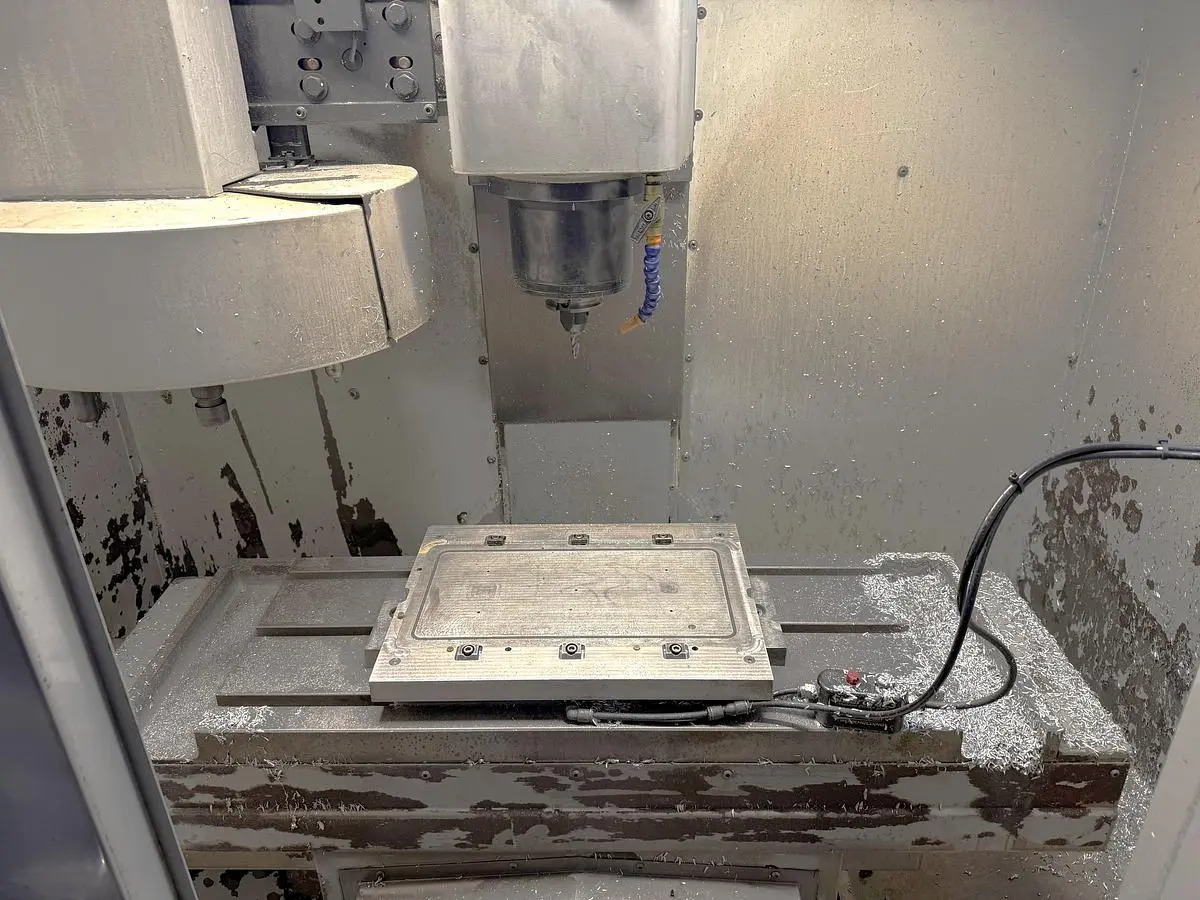

The 2007 Haas Mini Mill is a reliable CNC vertical machining center, ideal for a range of applications in a compact format. This used model features a working table size of 36" x 12", capable of handling a maximum load of 500 lbs. It offers generous travel dimensions with 16" on the X-axis, 12" on the Y-axis, and 10" on the Z-axis. The spindle, equipped with a CAT #40 taper, delivers a speed of up to 7,500 RPM, powered by a robust 7.5 HP motor.

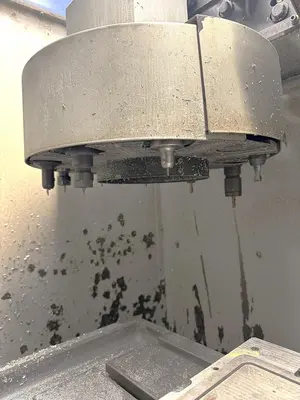

Equipped with a 10-position automatic tool changer (ATC), the Haas Mini Mill ensures quick tool switching with a change time of just 2.5 seconds. The machine supports rapid traverse rates of 650 inches per minute (IPM) and cutting feeds of up to 500 IPM, optimizing operational efficiency. Additionally, the spindle has a nose-to-table distance range from 4" to 14", accommodating various workpiece heights.
For versatility, this machine accommodates both single-phase (240V) and three-phase power (208V), adapting to different shop setups. The machine's compact dimensions of 78" x 80" x 98" make it suitable for smaller spaces, while its weight of 3,400 lbs ensures stability during operation. With 6,794 run time hours, the Mini Mill is a dependable choice for businesses seeking cost-effective manufacturing solutions.
Table Size: 36" x 12"
Maximum Table Load: 500 lbs
X-axis travel: 16"
Y-Axis Travel: 12"
Z-Axis Travel: 10"
Spindle Taper: CAT #40
Spindle Speed: 7,500 RPM
Spindle Motor: 7.5 HP
Distance Spindle Nose to Table Top: 4" - 14"
Tool Magazine Capacity: 10 Position ATC
Tool Change Time Tool to Tool: 2.5 Seconds
Maximum Tool Diameter / Length / Weight: 3.5" / Na / Na
Rapid Traverse Rates: 650 IPM
Cutting Feedrates: 500 IPM
Electrical Requirements: Either 208V Three Ph or 240V Single Phase
Machine Dimensions LxWxH: 78" x 80" x 98"
Machine Weight: 3,400 lbs
