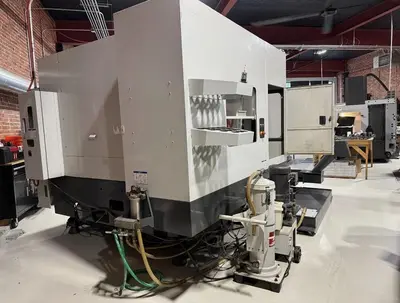

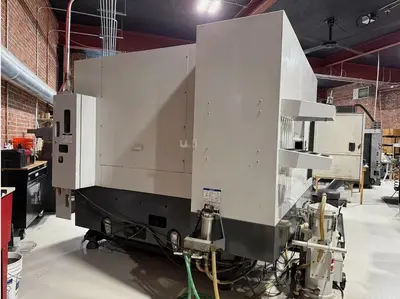

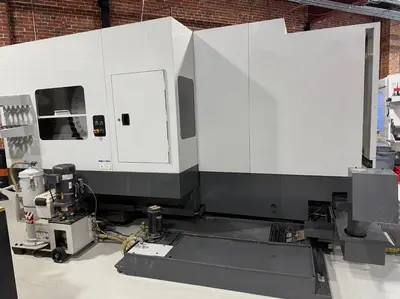

USED 2012 HAAS EC-500

2 Pallet Factory Pallet Changer System
1 Degree Pallet Indexing of 4th Axis Table

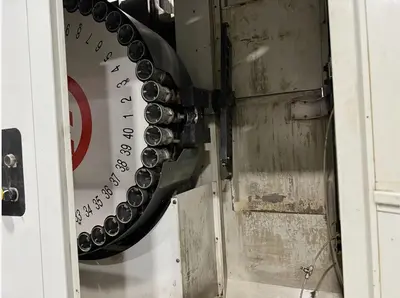

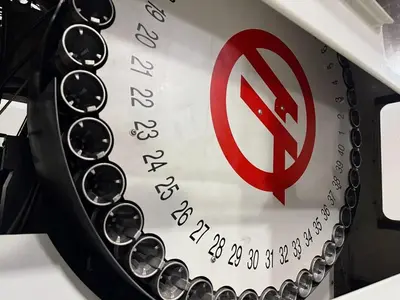

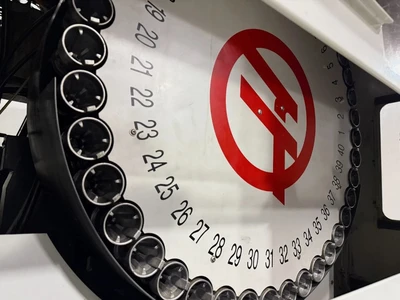

40 Station Tool Changer
12,000 RPM Spindle

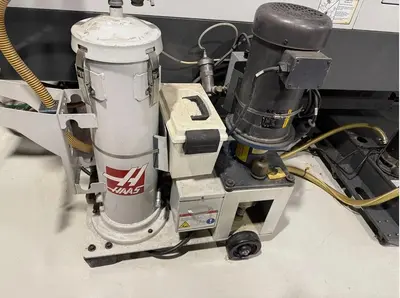

1,000 PSI Coolant Through Spindle
WIPS Wireless Probing with both Tool & Part Probes
Spindle Orientation
Haas Visual Quick Code Programming System
Coordinate Rotation & Scaling
User Definable Macros
Auger Style Chip Conveyor
Advanced Tool Management
Rigid Tapping
Inline Direct Drive Spindle
Shower Coolant
1 MB Programming Memory
Memory Key Lock Switch
15" Color LCD Monitor
USB Port Interface
RS 232 Port Interface
Coolant System with Tank & Pump

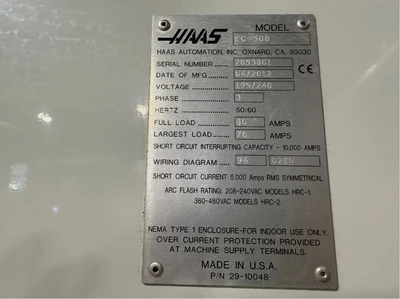

195-260V 3-Phase Power Required

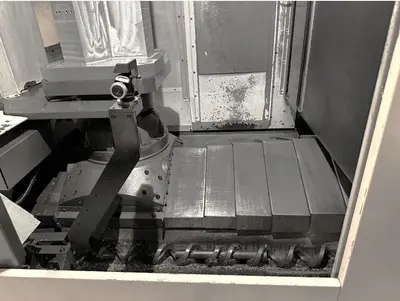

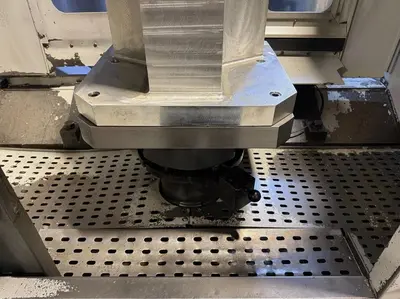

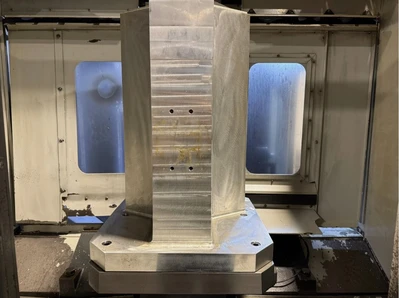

(2) Abbott X62812-500DIN Tombstones

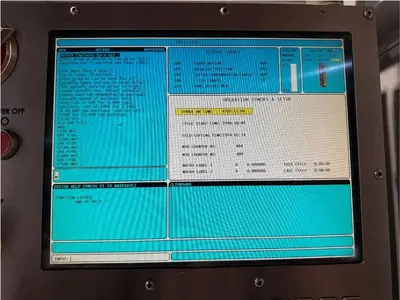

**Cycle Start Time 5,940 Hours**
**Feed Cutting Time Estimated at 1,954 Hours**

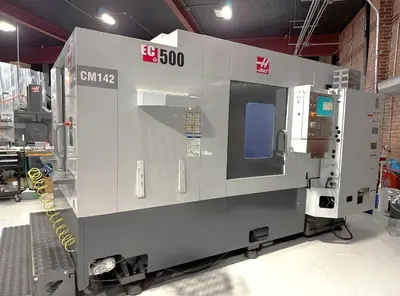

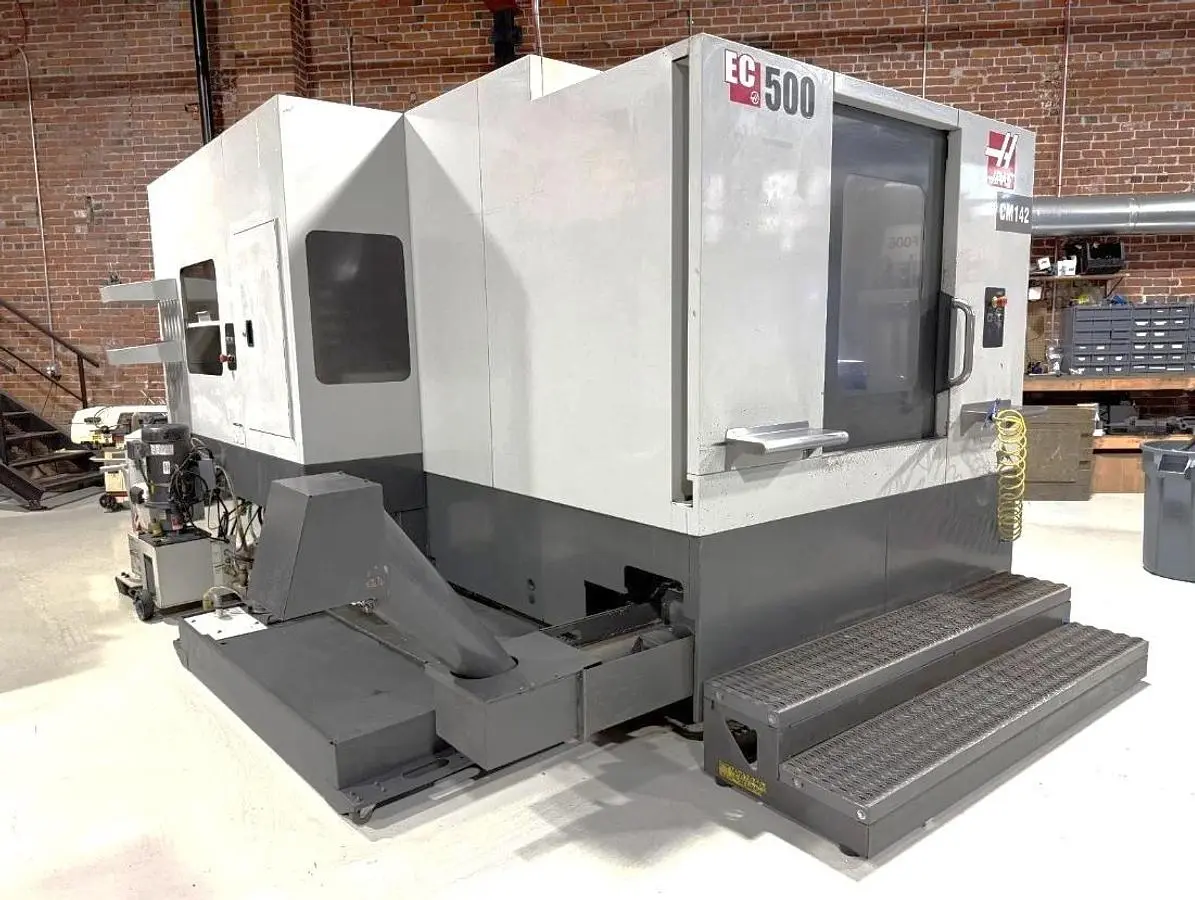

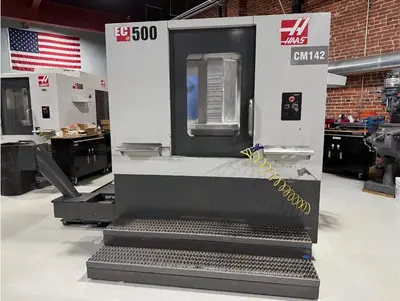

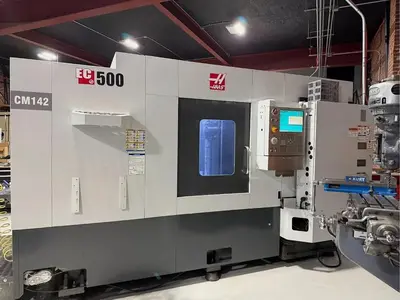

The 2012 Haas EC-500 is a pre-owned CNC horizontal machining center, ideal for demanding industrial applications. It features a Haas CNC Control, ensuring precision and ease of use. Equipped with a 40-position automatic tool changer, this machine offers efficient tool management for complex tasks. The 20"x20" dual pallet changer provides flexibility, accommodating workpieces up to 1,000 lbs with a 1-degree pallet indexing feature, allowing for precise rotation and alignment.

Its spindle operates at speeds up to 12,000 RPM, driven by a robust 30 HP vector direct drive motor. The machine supports a maximum X-axis travel of 32", Y-axis travel of 20", and Z-axis travel of 28", providing ample space for various machining operations. The spindle is designed to handle CAT 40 taper tools, with a maximum tool diameter of 6", length of 12", and weight capacity of 12 lbs. Rapid traverse rates of 1,000 IPM and cutting feed rates of 500 IPM ensure quick and efficient machining.

Additional features include a 1,000 PSI coolant through spindle system and a Haas probing package for enhanced accuracy. With dimensions of 130"x164"x104" and weighing 28,000 lbs, this machine is built for stability and durability, suitable for high-volume production environments.

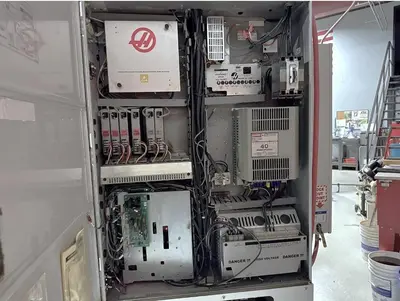

Machine Control: Haas CNC Control

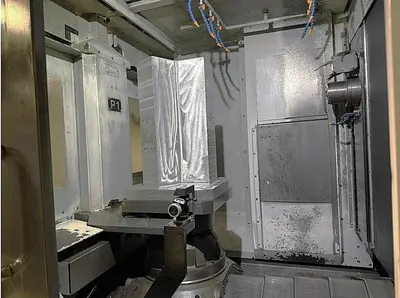

Table Size: 20"x20" 2-Pallet Changer
Maximum Table Load: 1,000 lbs
Pallet Indexing: 1 Degree Pallet Index
X-Axis Travel: 32"
Y-Axis Travel: 20"
Z-Axis Travel: 28"
Spindle Taper: CAT 40
Spindle Speed: 12,000 RPM
Spindle Motor: 30 HP Vector Direct Drive
Tool Magazine Capacity: 40 Station Side Mounted ATC
Maximum Tool Diameter / Length / Weight: 6" / 12" / 12 lbs
Spindle Nose to Pallet Center: 0" - 28"
Rapid Traverse Rates: 1,000 IPM
Cutting Feedrates: 500 IPM
Machine Dimensions LxWxH: 130"x164"x104"
Machine Weight: 28,000 lbs
