24 Station Side Mounted Tool Changer
12,000 RPM Spindle
Rigid Tapping

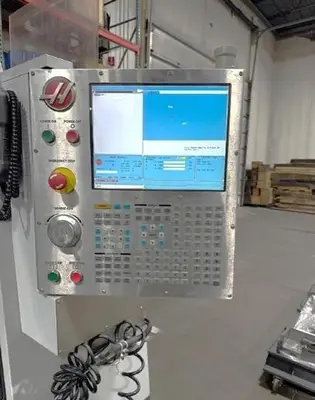

Remote Jog Handle
High Intensity Lighting
USB Port Interface
RS 232C Port Interface for DNC Operation
Coolant Tank with Pump
**Spindle was rebuilt on this machine in November of 2025**
**Approximately 5,729 Run Hours**

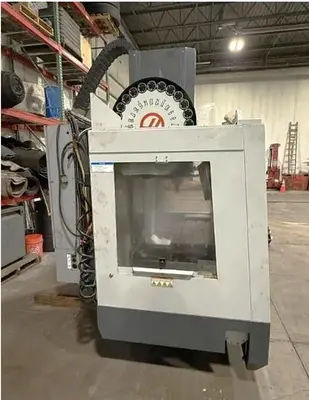

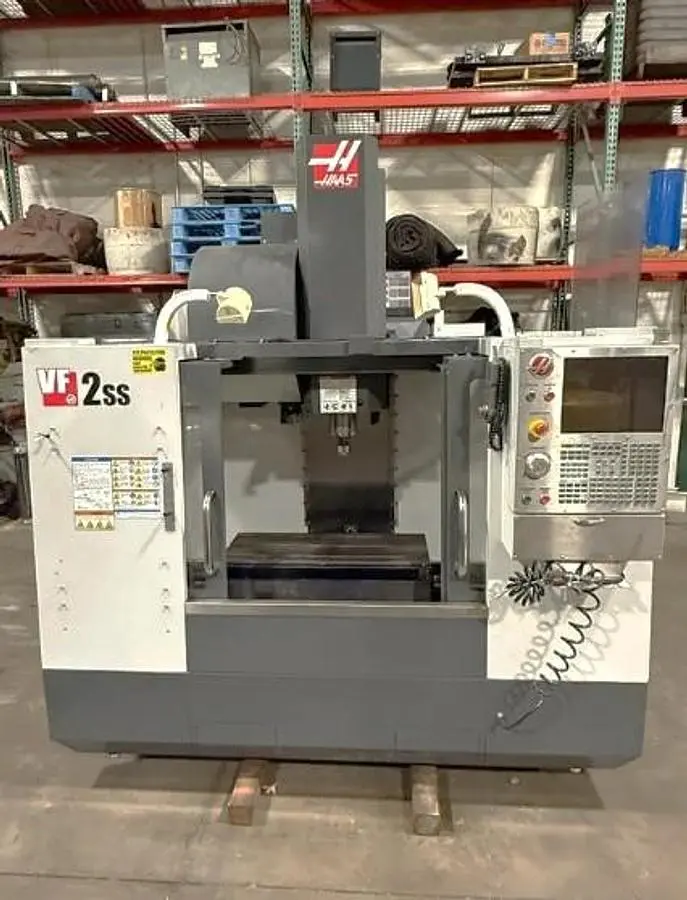

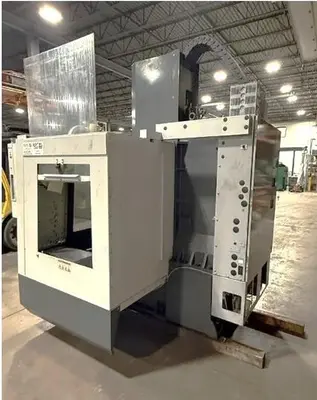

The 2010 Haas VF2SS is a high-performance CNC vertical machining center well-suited for precision manufacturing environments. It features a robust 30 HP direct-drive spindle with a maximum speed of 12,000 RPM, efficiently handling demanding machining tasks. The machine includes a 24+1 position side-mount tool changer, allowing for streamlined operations and reduced tool change times.
With a table size of 36" x 14" and capable of supporting loads up to 1,500 lbs, the VF2SS offers ample space for various workpieces. The X, Y, and Z axis travels are 30", 16", and 20" respectively, allowing for versatility in part dimensions. The spindle utilizes a CAT #40 taper, providing compatibility with a wide range of tooling options.
Users benefit from features such as a remote jog handle and USB port interface for simplified operation and data management. Additional enhancements include high-intensity lighting to improve visibility during machining. This model's rapid feed rates of 1,400 IPM in all axes ensure efficient production cycles. The machine measures 88" x 94" x 102" in size and weighs approximately 9,000 lbs, making it a stable and reliable choice for those needing precision and high-speed capabilities.
Table size: 36" x 14"
Max table load: 1,500 lbs
X axis travel: 30"
Y axis travel: 16"
Z axis travel: 20"
Spindle taper: CAT #40
Spindle speed: 12,000 RPM
Spindle motor: 30 HP - Direct Drive
Spindle nose to table top: 4" - 24"
Number of tool positions: 24 + 1 Position Side Mount
Max tool weight: 12 lbs.
Rapid feed rate (x,y,z): 1,400 IPM
Cutting feed rate: 0.1 - 833 IPM
Machine dimensions: 88" x 94" x 102"H
Machine weight (approximately): 9,000 lbs.
