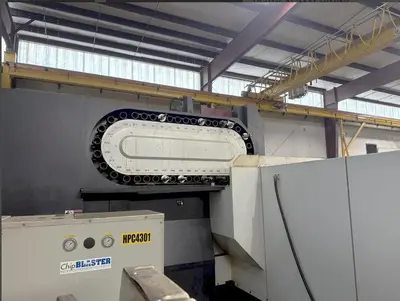

40 Station Side Mounted Tool Changer
Wired for 4th Axis
12,000 RPM Spindle
Dual Chip Augers

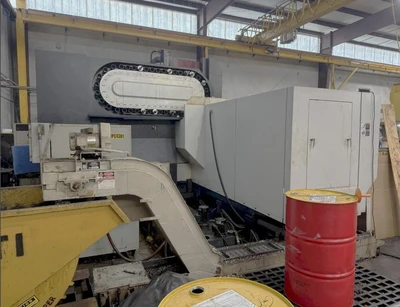

Rear Exit Belt Style Chip Conveyor

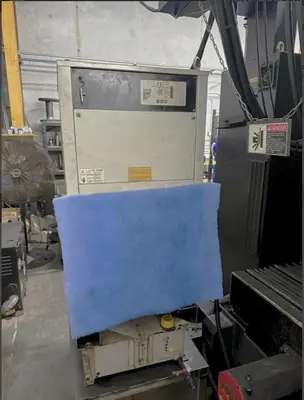

Spindle Oil Chiller Unit

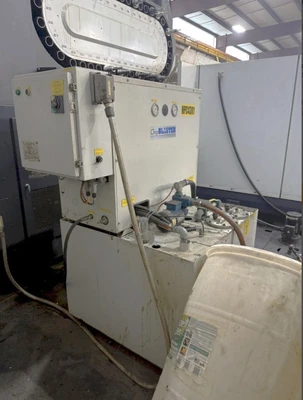

Chip Blaster High Pressure Coolant Through the Spindle
Remote Jog Handle
RS 232 Port Interface
Coolant System with Tank & Pump
Boxed Ways
High Torque Spindle
Built for Heavy Duty Cutting
**In Plant Under Power, Available for Inspection**

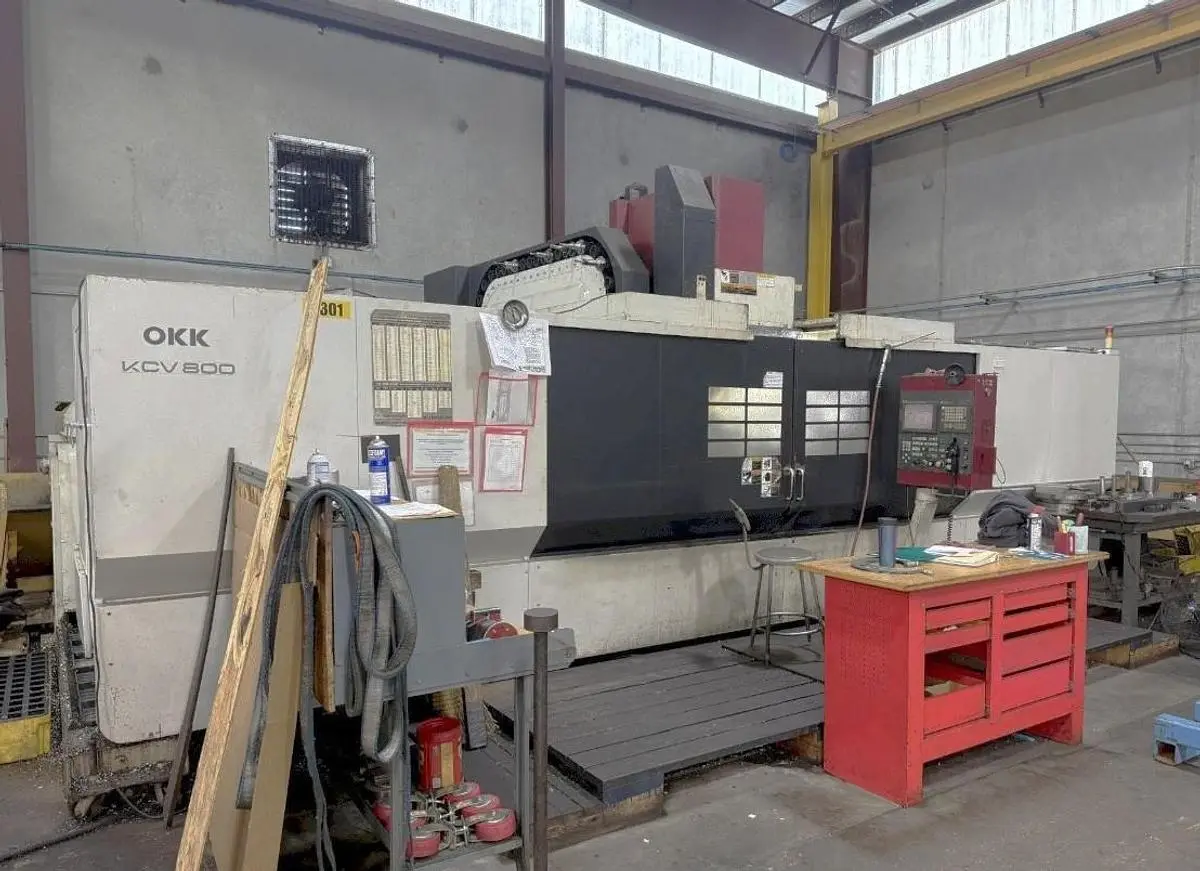

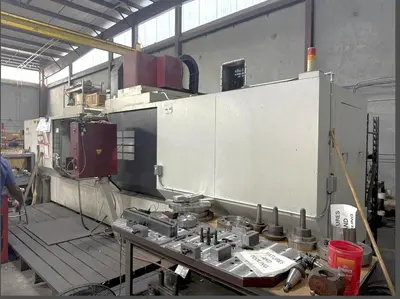

The 2007 OKK KCV-800 is a robust and reliable 3-Axis CNC Vertical Machining Center. Equipped with a Fanuc 160i Control, this machine offers impressive X, Y, and Z-axis travels of 120", 33.85", and 28.34" respectively, providing ample work space for a variety of applications. The table measures 130" x 32" and can support a maximum weight of 6,613 lbs., ensuring it can handle demanding machining tasks.

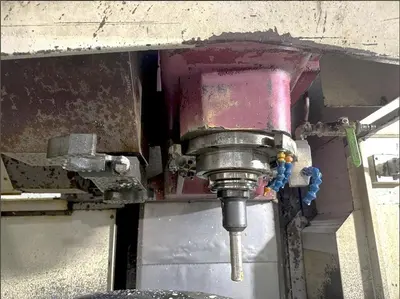

The machine features a CAT 50 spindle taper capable of speeds up to 12,000 RPM, powered by a 40 HP motor with a 2-speed geared drive. This configuration allows for efficient and precise machining operations. A spindle chiller is included to maintain optimal performance. The distance from the spindle nose to table top ranges from 7.87" to 36.22", offering flexibility in workpiece heights.
Additional features include a 40-station side-mounted Automatic Tool Changer (ATC), facilitating seamless tool transitions. A high-pressure CTS (Coolant Through Spindle) system and a conveyor enhance operational efficiency and maintenance. The machine's dimensions are 250" x 174" x 141", with a weight of 46,200 lbs., underscoring its sturdy construction for industrial use.
Control: Fanuc 160i Control

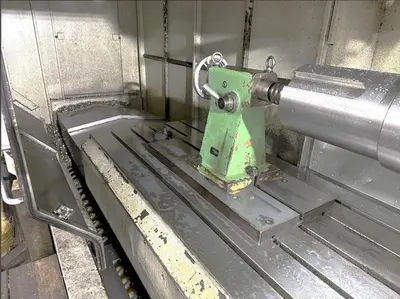

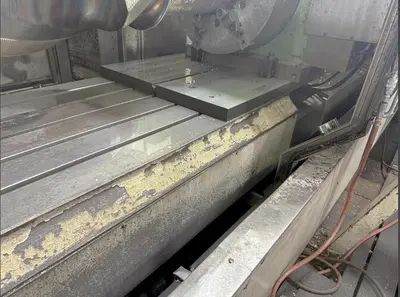

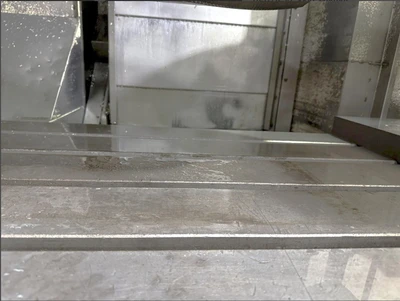

Table size: 130" x 32"
Maximum Weight on Table: 6,613 lbs.
X-Axis Travel: 120"
Y-Axis Travel: 33.85"
Z-Axis Travel: 28.34"
Spindle Taper: CAT #50
Spindle Speeds: 12,000 RPM
Spindle Motor: 40 HP - 2 Speed Geared
Distance Spindle Nose to Table Top: 7.87" - 36.22"
Number of Tool Positions: 40 Station Side Mounted ATC
Machine Dimensions: 250" x 174" x 141"
Machine Weight: 46,200 lbs.
