20 Station Tool Changer
Coolant System
RS 232 Port Interface

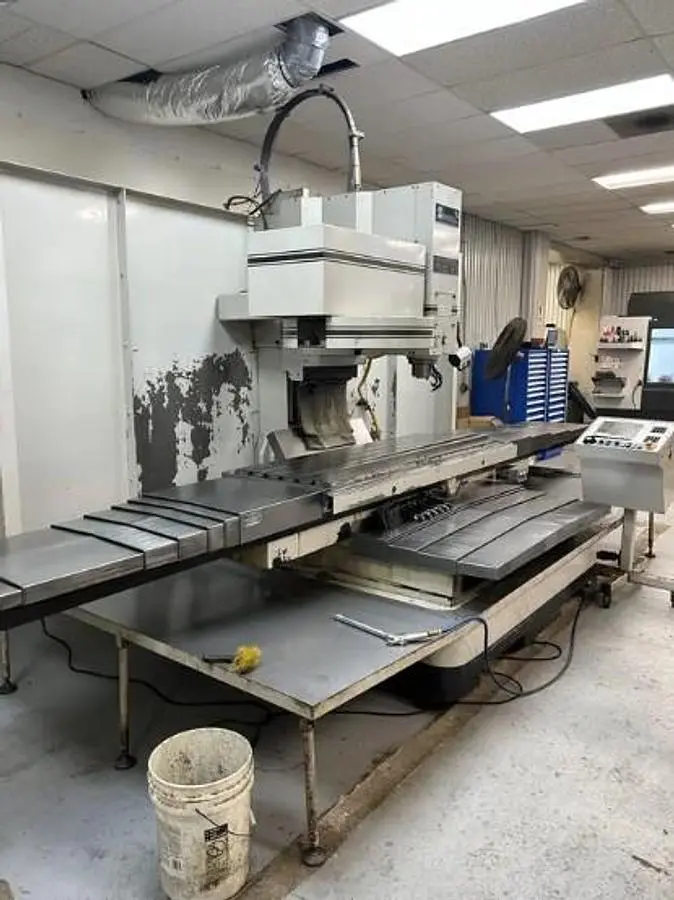

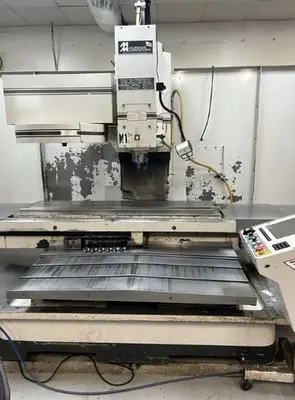

The 2007 Milltronics VMD-30 is a reliable used 3-axis CNC Vertical Machining Center, perfect for various industrial applications. It features a Milltronics Centurion 6 control system, which provides precision and ease of operation. The VMD-30 boasts a generous table size of 70 inches by 30 inches, capable of handling loads up to 5,000 lbs, making it suitable for large workpieces.
The machining center offers substantial travel with 70 inches on the X-axis, 30 inches on the Y-axis, and 24 inches on the Z-axis. The spindle runs at a maximum speed of 3,000 RPM and accommodates a CAT 40 spindle taper, driven by a 10 HP motor. With a 20-station ATC in an umbrella style, tool changes are efficient and minimally disruptive to operations.
With machine dimensions of 267 inches in length, 97 inches in width, and 115 inches in height, and a weight of 22,000 lbs, the VMD-30 is a robust and well-constructed machine. This machining center is an excellent choice for businesses looking to enhance their capabilities with dependable and precise machining solutions.
Control: Milltronics Centurion 6
Table Size: 70" x 30"
Table load capacity: 5,000 lbs
X-Axis Travel: 70"
Y-Axis Travel: 30"
Z-Axis Travel: 24"
Spindle Speed: 3,000 RPM
Spindle Taper: CAT 40
Spindle Motor: 10 HP
Tool Magazine Capacity: 20 Station ATC - Umbrella Style
Machine Dimensions LxWxH: 267"x97"x115"
Machine Weight: 22,000 lbs
