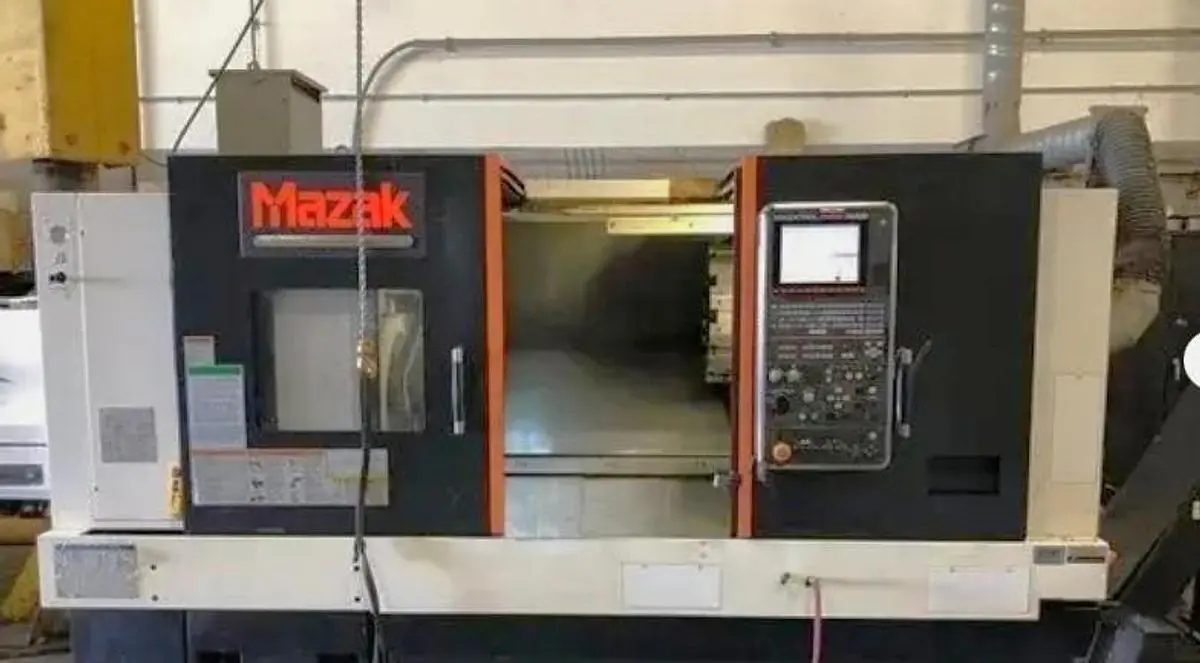

USED 2012 MAZAK NEXUS QTN 450-II/1000

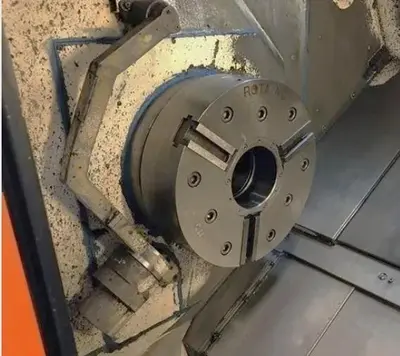

20" Schunk Rota NC-500-166.5 3 Jaw Hydraulic Chuck

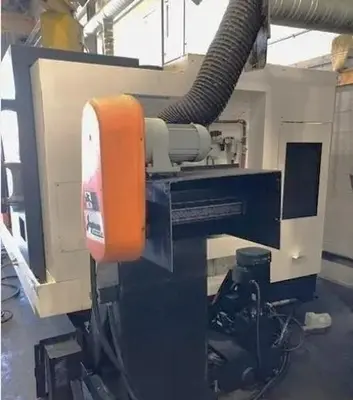

Chip Conveyor
Programmable Tailstock
Tool Presetter
EIA/ISO Programming
EIA 3D Compensation
EIA Helical Tap Cycle
EIA Pattern Cycle
Thread Cut-Speed Override
Re-Threading
Thread Start Point Compensation
Threading
Rotation & Scaling
Polar Coordinates Input
Comparison Stop
Variable 600 Sets
Tilted Working Plane
Pitch Error Compensation
Multitap Transformer
Coolant System with Tank & Pump

12.1" Color LCD
USB Interface (2 Ports)
RS 232 Port Interface
All Available Manuals
All Available Tooling

**Total Cutting Hours 12,146**

Control: Mazatrol Matrix Nexus 2
Chuck Size: 20" 3 Jaw Hydraulic Chuck
Maximum Swing: 33.268"
Maximum Turning Diameter: 22.835"
Maximum Turning Length: 40.3"
Maximum Bar Capacity: 6.5"
X-Axis Travel: 12.13"
Z-Axis Travel: 42.13"
Spindle Nose / Spindle Bore: A2-15" / 7.1"
Spindle Speeds: 2,000 RPM - Geared
Spindle Motor: 50 HP
Number of Turret Positions: 12 Position Turret
Rapid Traverse Rates: 1181 IPM
Tailstock Body Travel / Center: 40.375" / MT #5
Machine Dimensions: 178"x99"x84"
Machine Weight: 21,283 lbs.
