10" Spindle Bore
25" 3 Jaw Manual Chuck
8 Station Turret

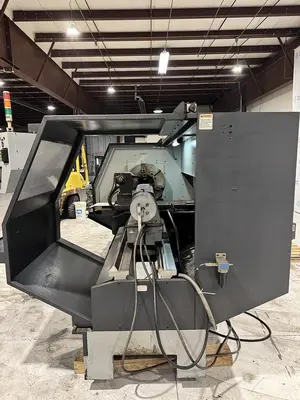

Heavy Duty Tailstock with Hydraulic Quill

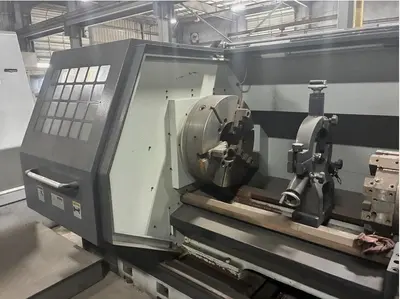

Steady Rest
Chip Conveyor
Coolant System with Tank & Pump
3 Color Machine Status Condition Lights
Remote Jog Handle
IC Memory Card Interface
RS 232 Port Interface
All Available Tooling
All Available Manuals

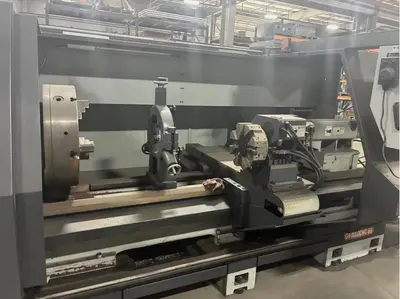

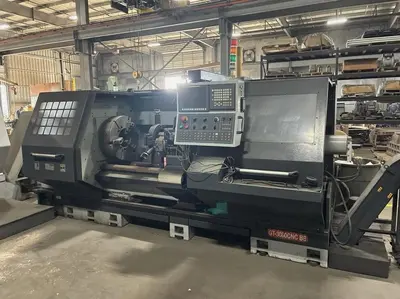

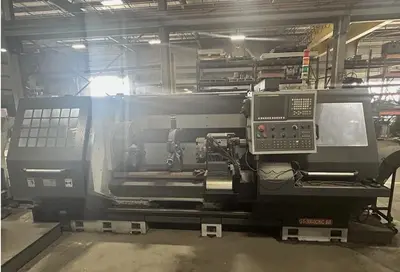

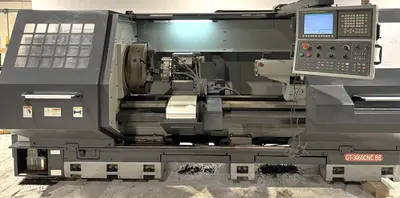

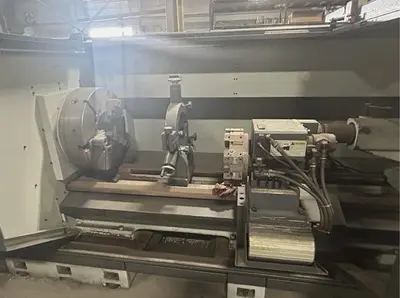

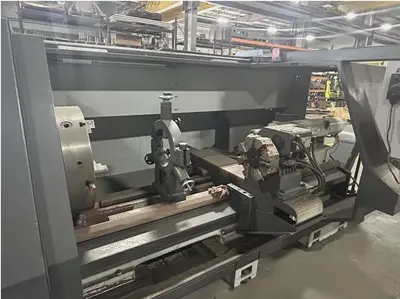

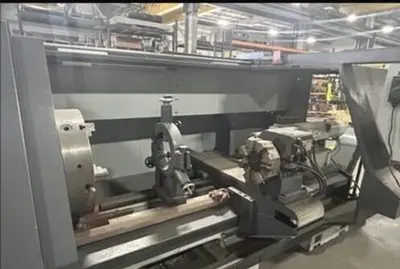

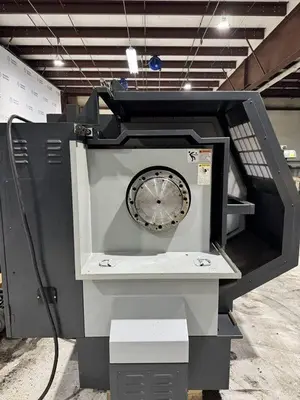

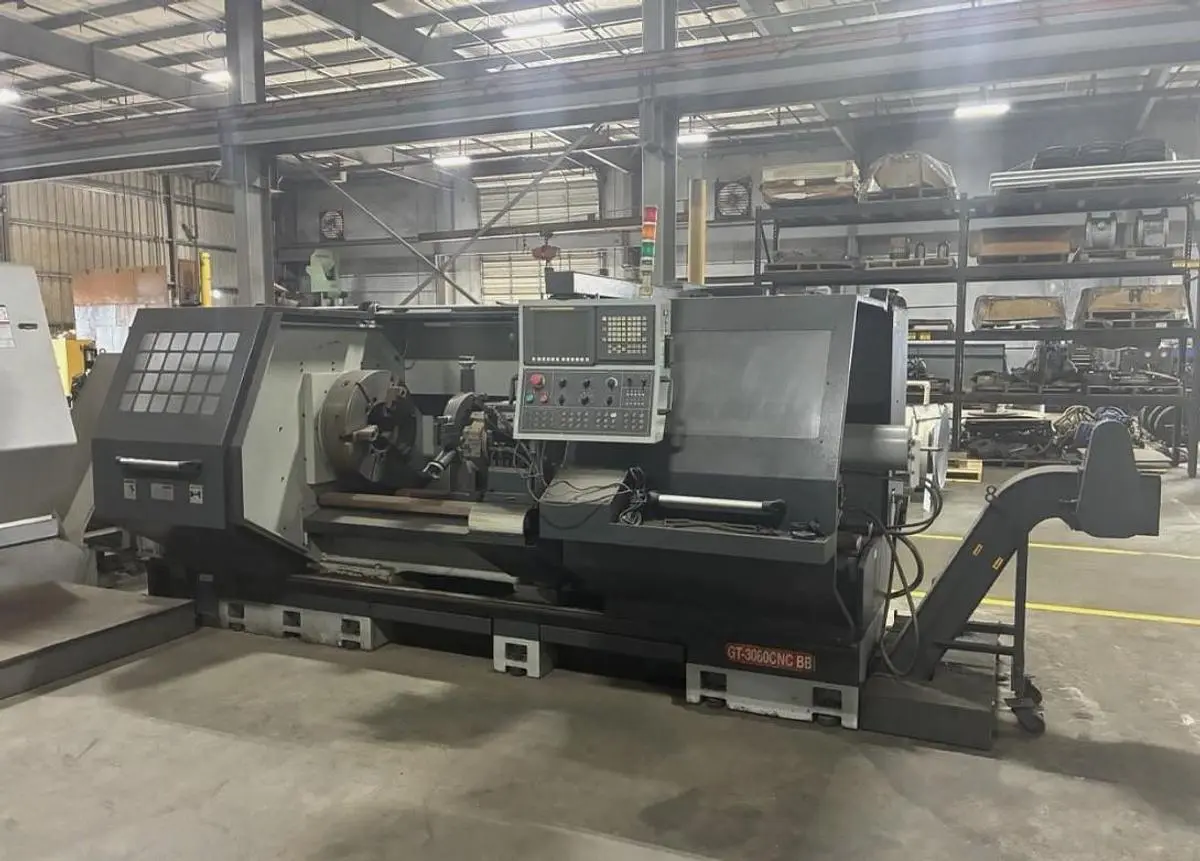

The 2015 Ganesh GT-3080CNC BB is a reliable CNC lathe designed for precision and efficiency. It features a robust Fanuc 0i-TD control system and a 30 HP spindle motor with two ranges, allowing spindle speeds between 18 and 600 RPM. The machine's impressive 10" spindle bore enables accommodating larger bar capacities, up to 10", making it suitable for various industrial applications.

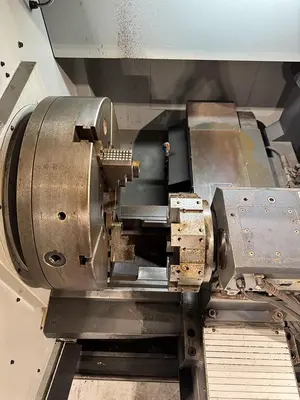

The GT-3080 CNC is equipped with a 25" 3-jaw manual chuck and offers a generous maximum swing over the bed of 30", with a cutting diameter capacity of up to 22". The maximum distance between centers is 78", providing ample space for handling lengthy workpieces. It includes an 8-station turret for efficient tooling flexibility and rapid traverse rates of up to 394 IPM enhance productivity.
Dimensions of the machine are 223" x 90" x 80", and it weighs in at 13,230 lbs. The machine's tailstock features a quill diameter of 4.92", a quill travel of 7.87", and an MT #6 taper, all contributing to its versatile operation. This used machine offers a balance of strength, accuracy, and cost-effectiveness for businesses seeking to expand their CNC machining capabilities.

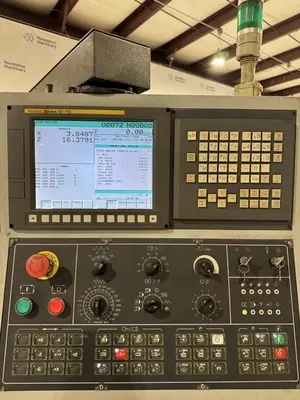

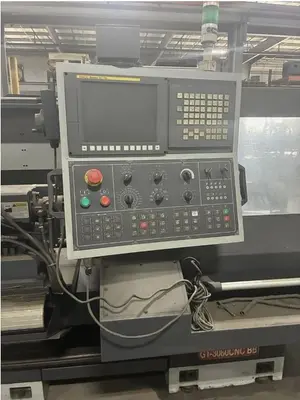

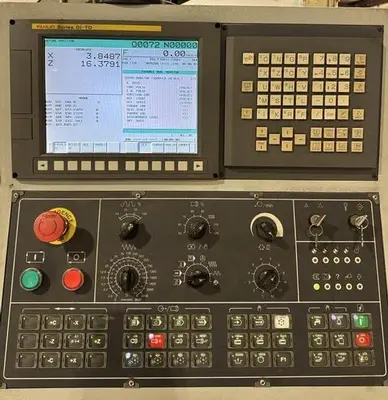

Control: Fanuc 0i-TD Control
Chuck Sizes: 25" 3 Jaw Manual Chuck
Maximum Swing over Bed: 30"
Maximum Cutting Diameter: 22"
Maximum Distance Between Centers: 78"
Maximum Bar Capacity: 10" through bore
X-Axis Travel: 19.625"
Z-Axis Travel: 78"
Spindle Nose / Spindle Bore: A2-15" / 10"
Spindle Speed: 18 - 600 RPM
Spindle Motor: 30 HP - 2 Ranges
Number of Turret Positions: 8 Station Turret
Rapid Traverse Rates: 394 IPM
Tailstock Quill Diameter / Quill Travel / Taper: 4.92" / 7.87" / MT #6
Machine Dimensions LxWxH: 223" x 90" x 80"
Machine Weight: 13,230 lbs
