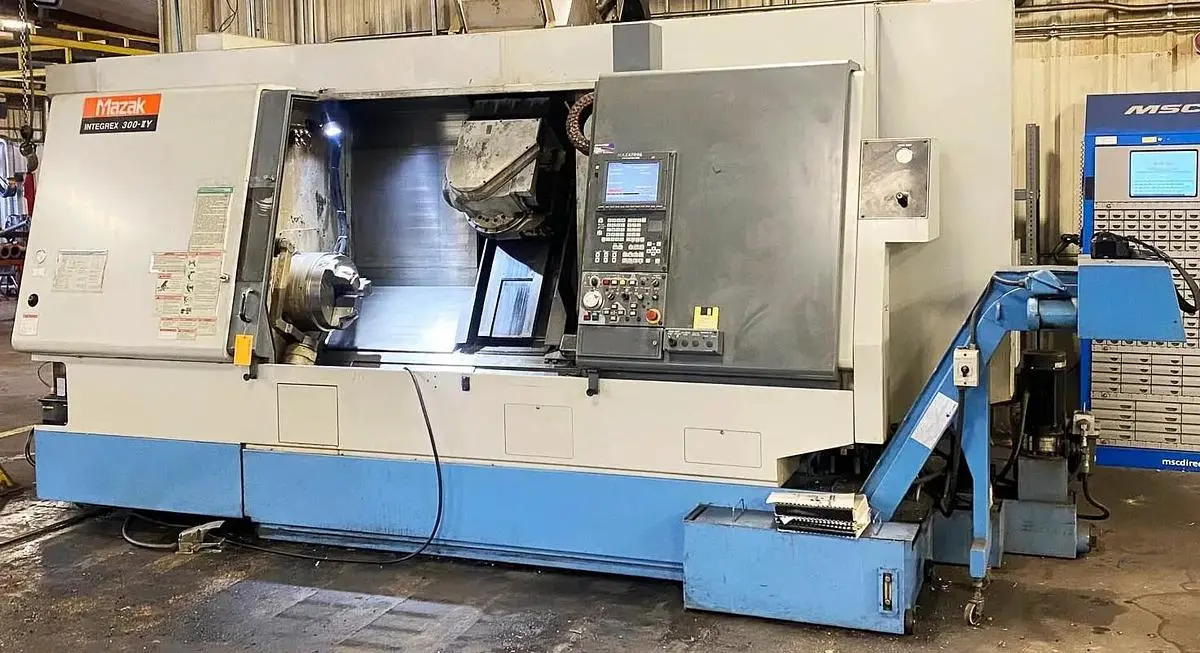

USED 2002 MAZAK INTEGREX 300-IIY/1000

5-Axis Machining
B-Axis Pendulum Style Head
Full C-Axis Spindle Rotation
Live Milling/Drilling Capability
Chip Conveyor
SMW Hydraulic Steady Rest
12" 3 Jaw Hydraulic Chuck
40 Station Tool Changer
Automatic Tool Eye
Programmable Tailstock
Transformer
B Axis Angle Positioning Turning
Synchronized Tapping with Mill Tool
Scale Feedback
User Macro
Enhanced Y Axis Mazatrol
Coolant Through the Mill Head
EIA/ISO Input Function for G Code Programming
EIA/ISO Helical Interpolation
EIA Helical Tapping
PCMCIA Interface 2-Slots
3.5" Floppy Disk Drive
RS-232C Port for DNC Interface
All Available Manuals
Tool Cart w/Assorted Tool Holders

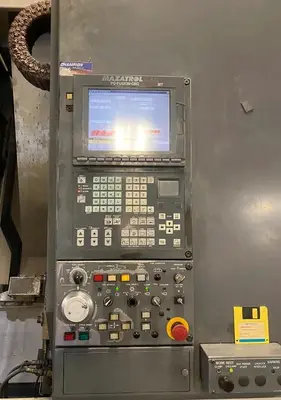

Machine Control: Mazatrol Fusion 640MT
Chuck Sizes Main / Subspindle: 12" 3-Jaw Hydraulic Chuck
Maximum Swing: 24.01"
Maximum Swing Over Carriage: 15.35" - 24.01" depending on workpiece length
Maximum Turning Diameter: 24.01"
Maximum Cutting Length: 41.2"
Spindle Nose / Bore / Bar Capacity: A2-8" / 3.46" / 3.03"
X-Axis Travel: 22.83"
Y-Axis Travel: +/- 4.53"
Z-Axis Travel: 43.11"
C-Axis Rotation: .001 Degree
B-Axis Tilt Movement: 225 Degrees
Spindle Motor: 35 HP
Spindle Speed: 35 - 3,500 RPM
Milling Spindle Speed: 10,000 RPM
Milling Spindle Motor: 20 HP
Tool Magazine Capacity: 40 Position Tool Changer
Rapid Traverse Rates (X, Y, Z): 1181 IPM, 590 IPM, 1181 IPM
Tailstock Quill Diameter / Center: 3.35" / MT #4
Machine Dimensions LxWxH: 191" x 87" x 106.3"
Machine Weight: 20,042 lbs
