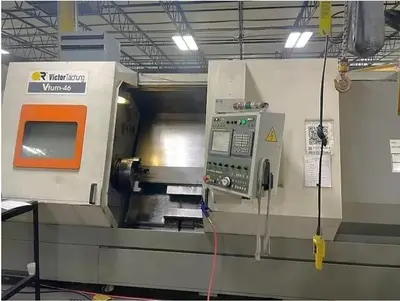

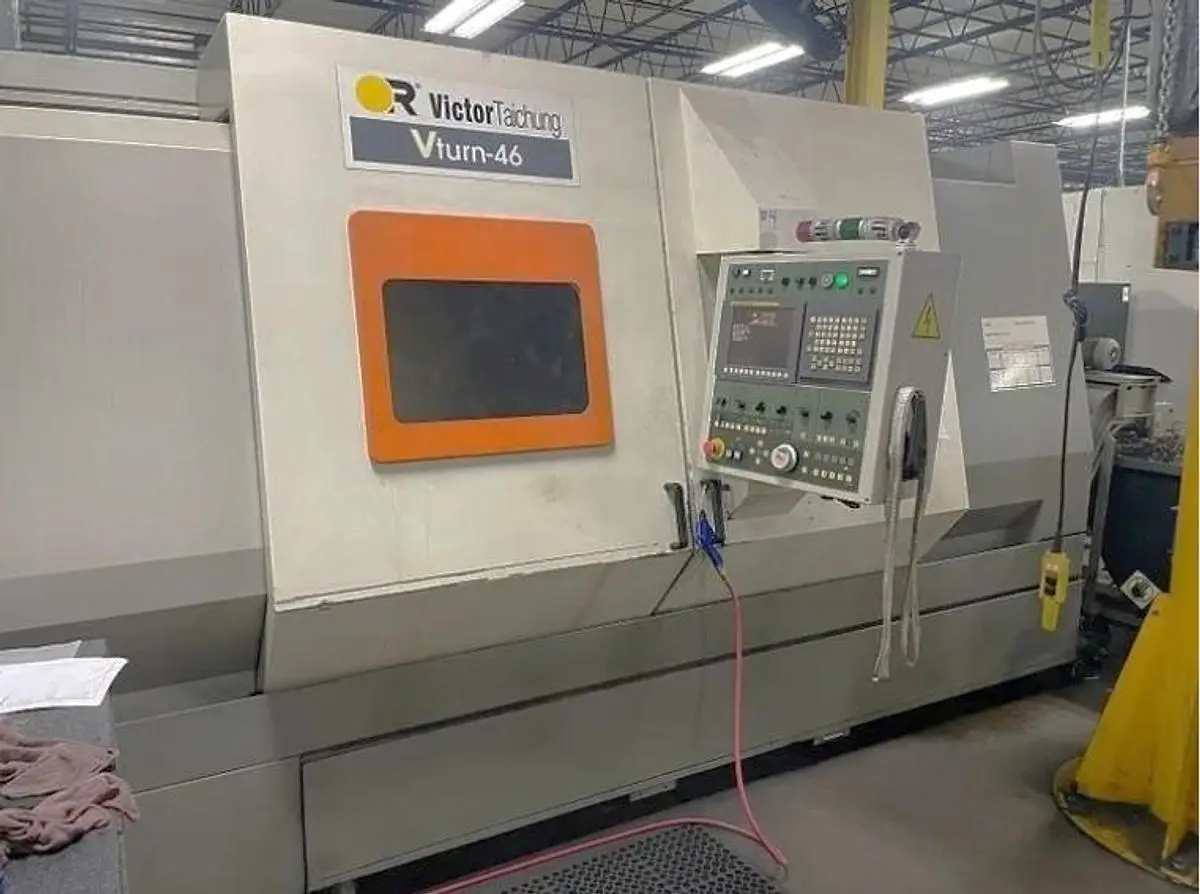

USED 2012 VICTOR TAICHUNG VTURN 46

Chip Conveyor
15" 3 Jaw Hydraulic Chuck (can accept up to 24" chuck)
Programmable Tailstock
Air Conditioned Electrical Cabinet
High Pressure Coolant
RS 232 Port Interface
Coolant System with Tank & Pump
Boxed Way Construction on Slant Bed
4 Speed Geared Headstock
Machine Status Condition Lights
All Available Tooling
All Available Manuals

**Power On Hours 25,150**
**Run Hours 7,708**
**Cutting Hours 6,920**

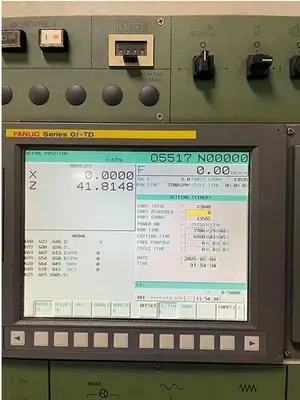

Control: Fanuc 0i-TD Series Control
Chuck Size: 15" Hydraulic Chuck
Maximum Swing: 32.28"
Maximum Turning Diameter: 28.74"
Standard Turning Diameter: 20.472"
Maximum Turning Length: 64.96"
Maximum Distance Between Centers: 68.89"
Maximum Bar Capacity: 4.52"
Spindle Nose / Spindle Bore: A2-11" / 4.84"
Spindle Speeds: 1,500 RPM
Spindle Motor: 68.4 HP

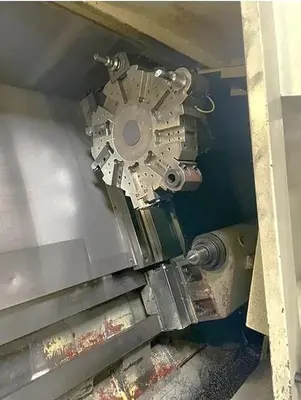

Number of Turret Positions: 10 Position Turret
Turret Indexing Time: 1 second
Maximum Boring Bar Diameter / Turning Tool Size: 2.36" / 1.25"
Rapid Traverse Rates X/Z: 472 IPM

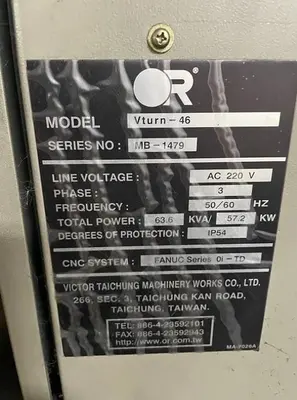

Electrical Requirements: 220V / 63.6 KVA / 57.2 KW
Machine Dimensions: 244" x 118" x 98"
Machine Weight: 28,160 lbs.
