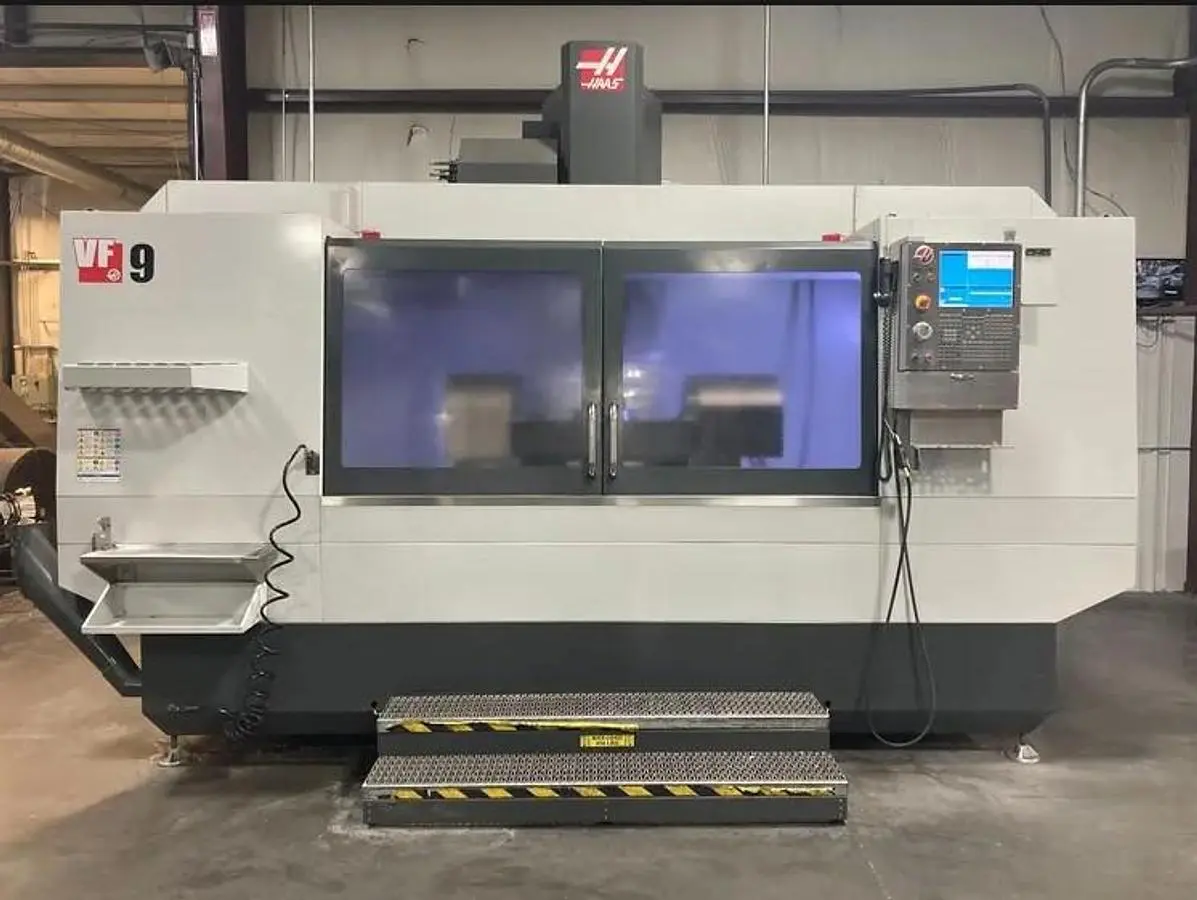

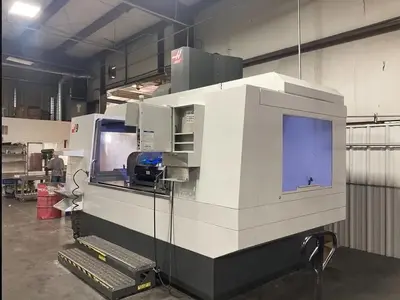

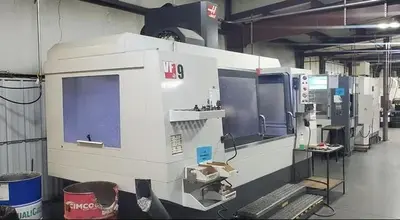

USED 2014 HAAS VF-9/40

Haas TR-310 Trunnion Style Table
Haas 4th Axis Drive & Wiring
Haas 5th Axis Drive & Wiring
Coolant Through the Spindle - 300 PSI
8" Extended Z Axis Clearance
Auger Style Chip Conveyor
24 Station Side Mounted Tool Changer
High Speed Machining
Programmable Coolant Nozzle
Rigid Tapping
Auxiliary Coolant Filter System
Remote Jog Handle-Color
Internal High Voltage Isolated Transformer for 380V - 480V
Ethernet Interface
USB Port Interface
RS 232 Port Interface

The 2014 Haas VF-9/40 is a versatile used 4-axis vertical machining center equipped with a Haas TR-310 trunnion table, ideal for complex machining applications. This model features an ample table size of 84" x 36" with a loading capacity of up to 4,000 lbs, making it suitable for handling large and heavy workpieces. The machine is designed with a generous axis travel capacity—84" in the X-axis, 40" in the Y-axis, and 30" in the Z-axis—allowing for a wide range of machining operations.

With a spindle speed reaching up to 8,100 RPM and a robust 30 HP motor, the VF-9/40 ensures efficient and high-speed machining. The CAT 40 spindle tapers, coupled with coolant through the spindle, provide additional precision and cooling efficiency during operation. The two-speed geared transmission offers enhanced torque and speed flexibility to suit various machining needs.

The machine includes a 24-position side-mount automatic tool changer with a tool change time of 2.8 seconds, ensuring smooth and rapid switching between tasks. Its high-speed machining capability, extended Z clearance, and dimensions of 183"x139"x129", make it a valuable addition to any manufacturing environment. Despite its substantial size, weighing at 25,200 lbs, this VF-9/40 model delivers the reliable performance expected from Haas, optimized for a range of industrial applications.

Table size: 84" x 36"
Table load capacity: 4,000 lbs.
X axis travel: 84"
Y axis travel: 40"
Z axis travel: 30"
Spindle nose to table top: 4" - 34"
Spindle speed: 8,100 RPM
Spindle taper: CAT 40
Spindle motor-geared head: 30 HP
Transmission type: 2 Speed Geared
Tool magazine capacity: 24 Position Side Mount ATC
Tool change time: 2.8 sec tool-tool
Rapid traverse rates: 600 IPM
Max. tool diam./length/weight: 3.5"/8"/12 lbs.
Machine dimensions: 183"x139"x129"
Machine weight: 25,200 lbs.
